Install and Upgrade Internal Modules and Field Replaceable Units
Step 2
To remove a micro-SIM card into a USB LTE dongle, do these steps:
a. Tap open the dust cover, and then gently push the micro-SIM card to eject the card from the SIM slot.
b. Tap close the micro-SIM protective cap on the USB to close the slot.
Note
Perform the following steps to insert the USB LTE dongle with the SIM card into a horizontal slot on the rear
panel of a C110x series router:
1. Ensure the micro-SIM is installed in the LTE USB dongle.
2. Plug the LTE USB dongle into the magnet holder.
3. Attach the magnet holder into the USB port on the metal front panel of C1101-4P.

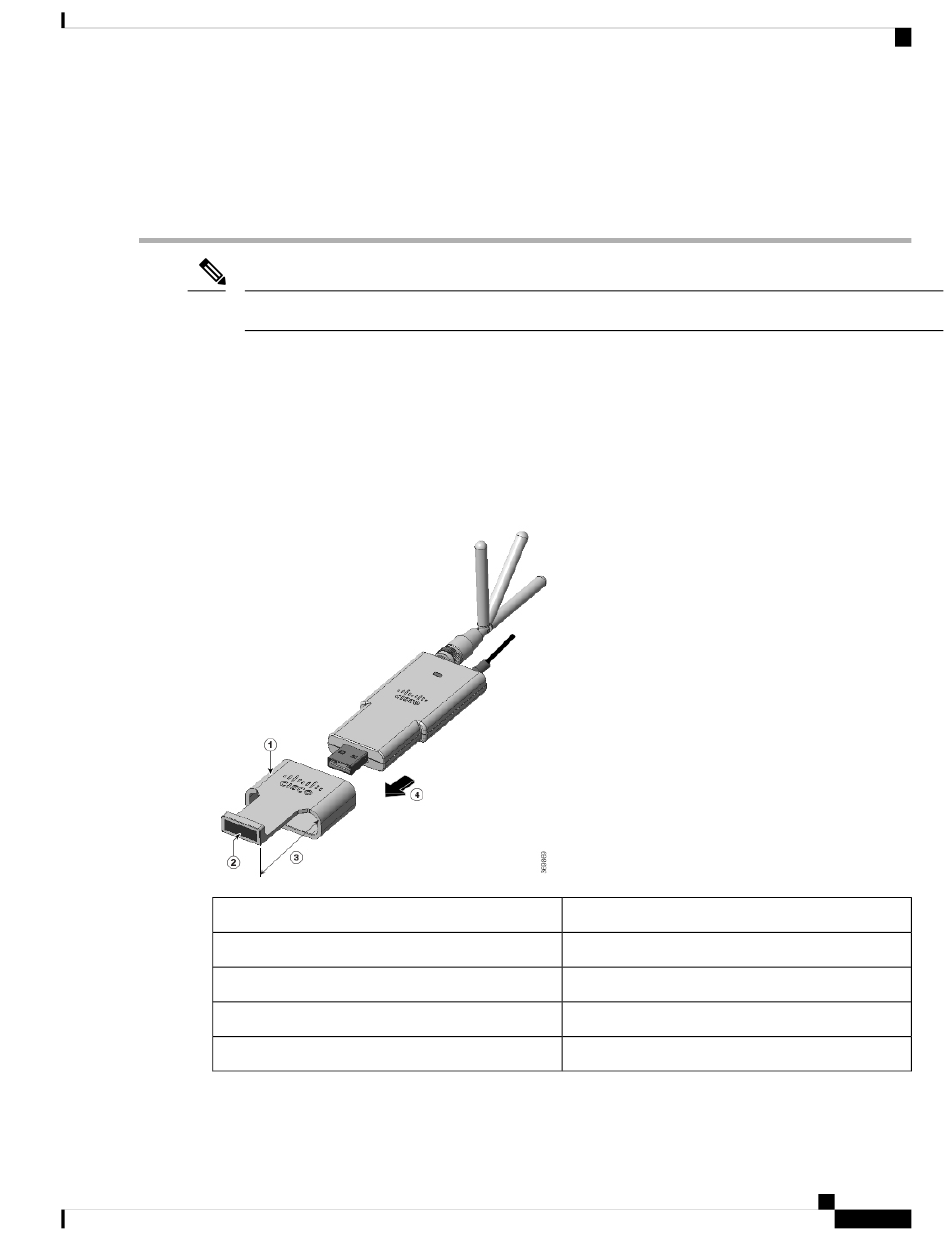

Figure 81: LTE USB 2.0 Dongle for C1101-4P
Number
1
2
3
4
The antenna orientation may need to be adjusted for optimal performance.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
Install a Micro-SIM Card into a USB LTE Dongle
Description
Supporting ring
Magnet
Extend outward 30mm
Plug-in direction
