Mount the Router under a Desk or a Shelf
Warning
Procedure
Command or Action
Step 1 To install the router, use the screws provided with the
accessory kit to secure the router when you mount it on the
rack.
Mount the Router under a Desk or a Shelf
Installing the router under a desk requires an optional bracket kit that is not included with the router. The kit
contains the rack-mount brackets and screws to secure the brackets to the router and the underside of the desk.
You can order these kits from your Cisco representative. This procedure describes how to mount a router
under a desk or a shelf .
Step 1 Attach a bracket to one side of the router using the flat-head screws. Follow the same steps to attach the second bracket
to the opposite side.

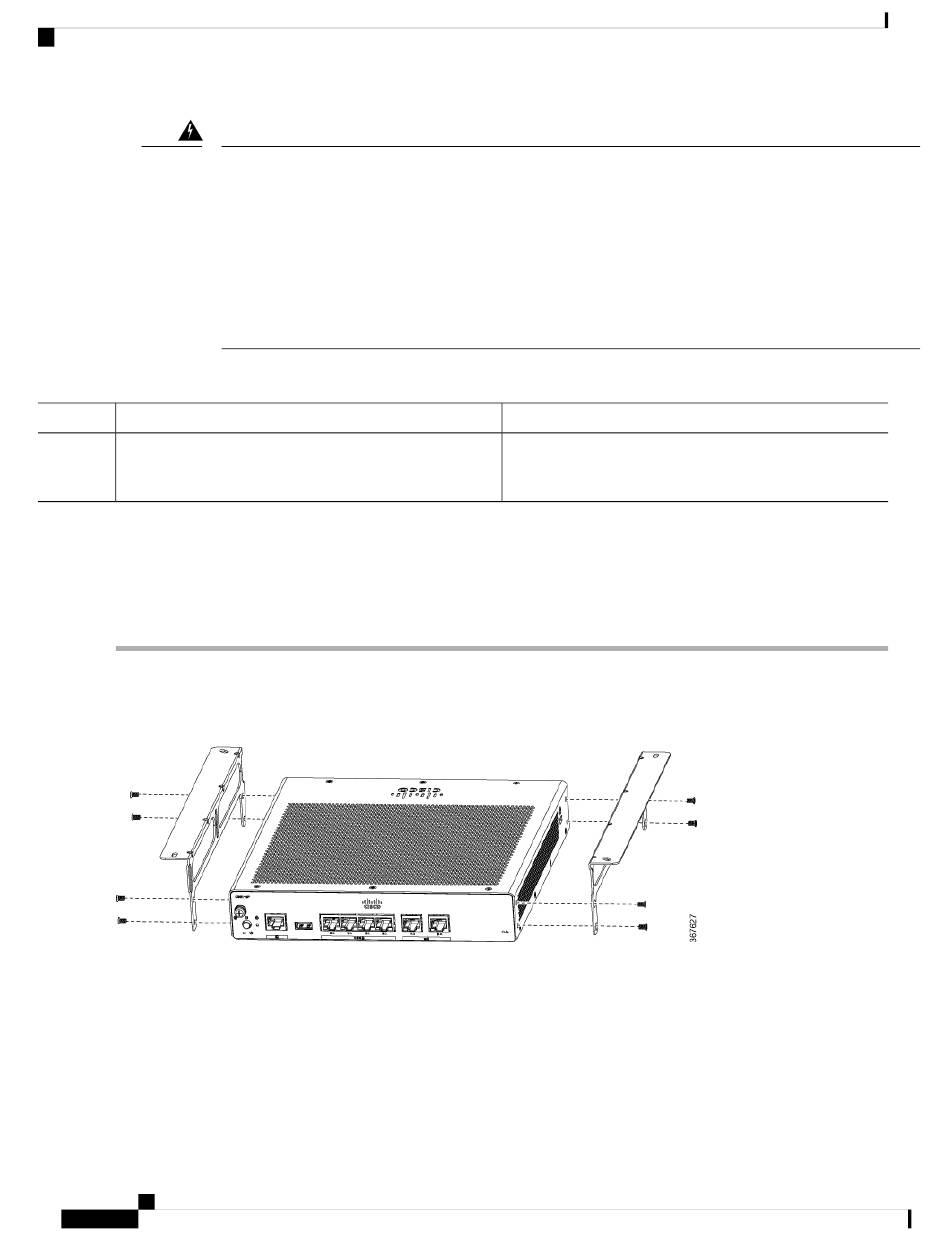

Figure 47: Attaching Brackets to the Router
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
46
• To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack. Statement 1006.
Purpose
Install and Connect the Router
