Chassis Views

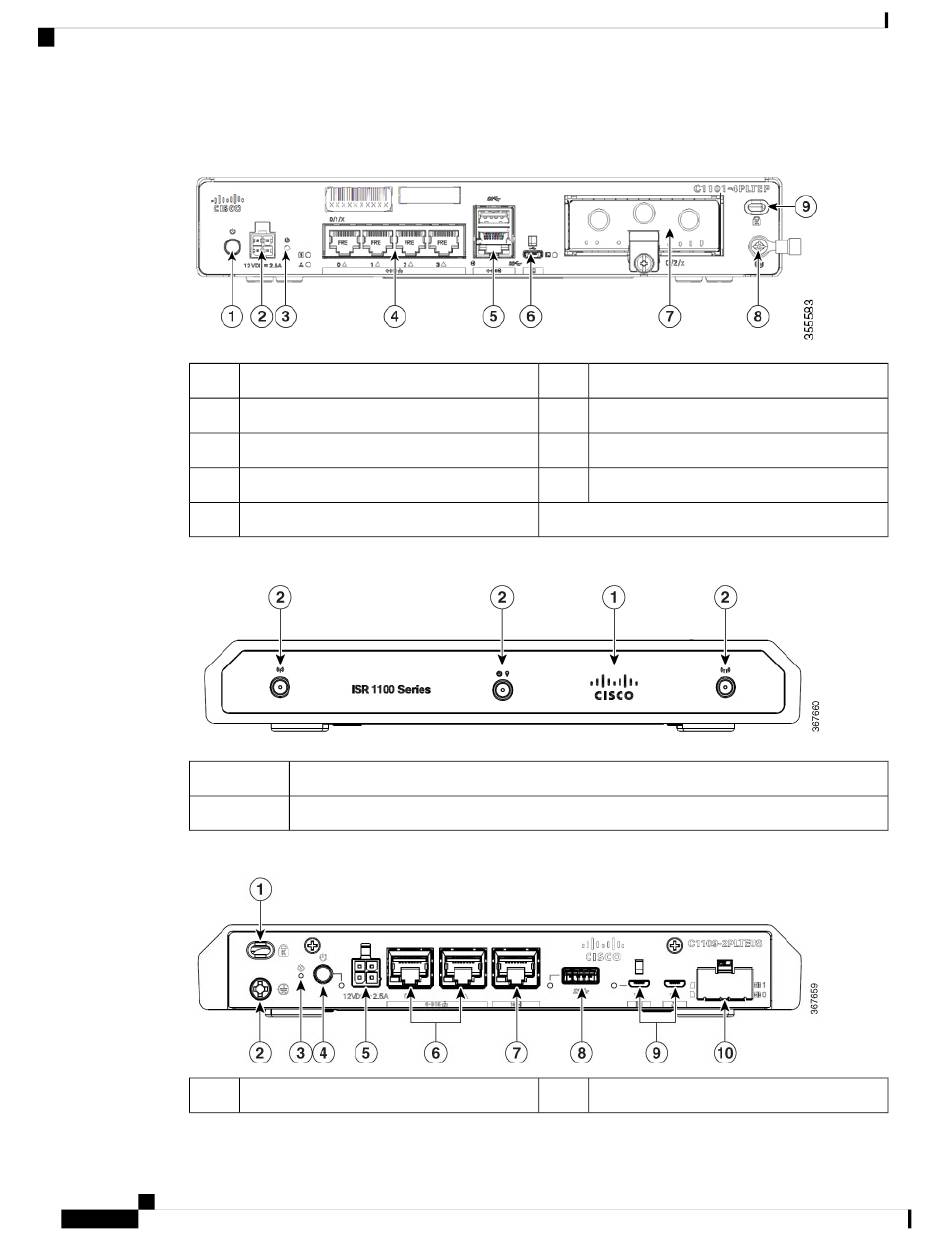

Figure 6: C1101-4PLTEP - I/O View
1 Power switch
3 Reset button
5 GE WAN
7 Pluggable
9 Kensington lock slot
Figure 7: C1109-2PLTE - Bezel View
1
2
Figure 8: C1109-2PLTE - I/O View
1 Kensington lock slot
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
8
Non-illuminated Cisco logo
Main and diversity antenna
Overview of Cisco 1000 Series Integrated Services Routers
2 4-pin power connector
4 LAN:0-4
6 Micro-USB console port
8 Grounding
2 Grounding
