Chassis Views

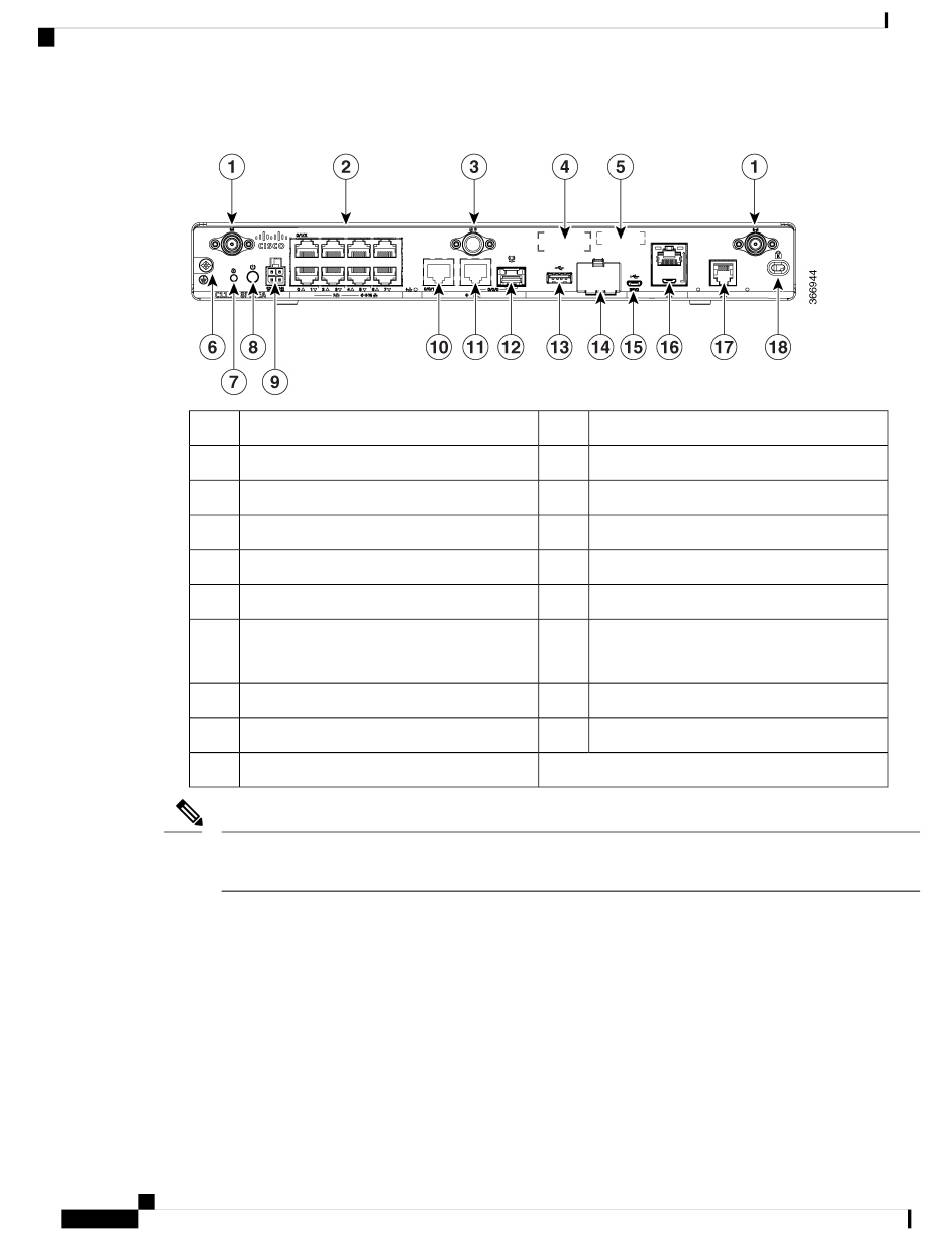

Figure 2: C111x-8P - I/O View
1 LTE antennas – main and diversity
3 GPS connection
5 Serial number
7 Reset button
9 4-pin power connector
11 GE 0/0/0 - RJ45
13 USB3.0
15 LTE provisioning port
17 DSL
19 Product Identification Number (PID)
Note For more information on the Reset Button, refer to the Reset Overview section in the
Services Routers.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
6
Overview of Cisco 1000 Series Integrated Services Routers
2 Ethernet switch
4 CLEI label
6 Grounding
8 Power switch
10 GE 0/0/1
12 GE 0/0/0 - SFP
14 Lower slot0
Upper slot1
16 RJ45/Micro USB console
18 Kensington lock slot
ISR 1000 Series Integrated
