Install a Pluggable Interface Module on a C1101-4P
1 2 RSSI 2
• Yellow: Good signal,
3G
• Green: Good signal,
4G
1 3 RSSI 3
• Yellow: Best signal,
3G
• Green: Best signal, 4G

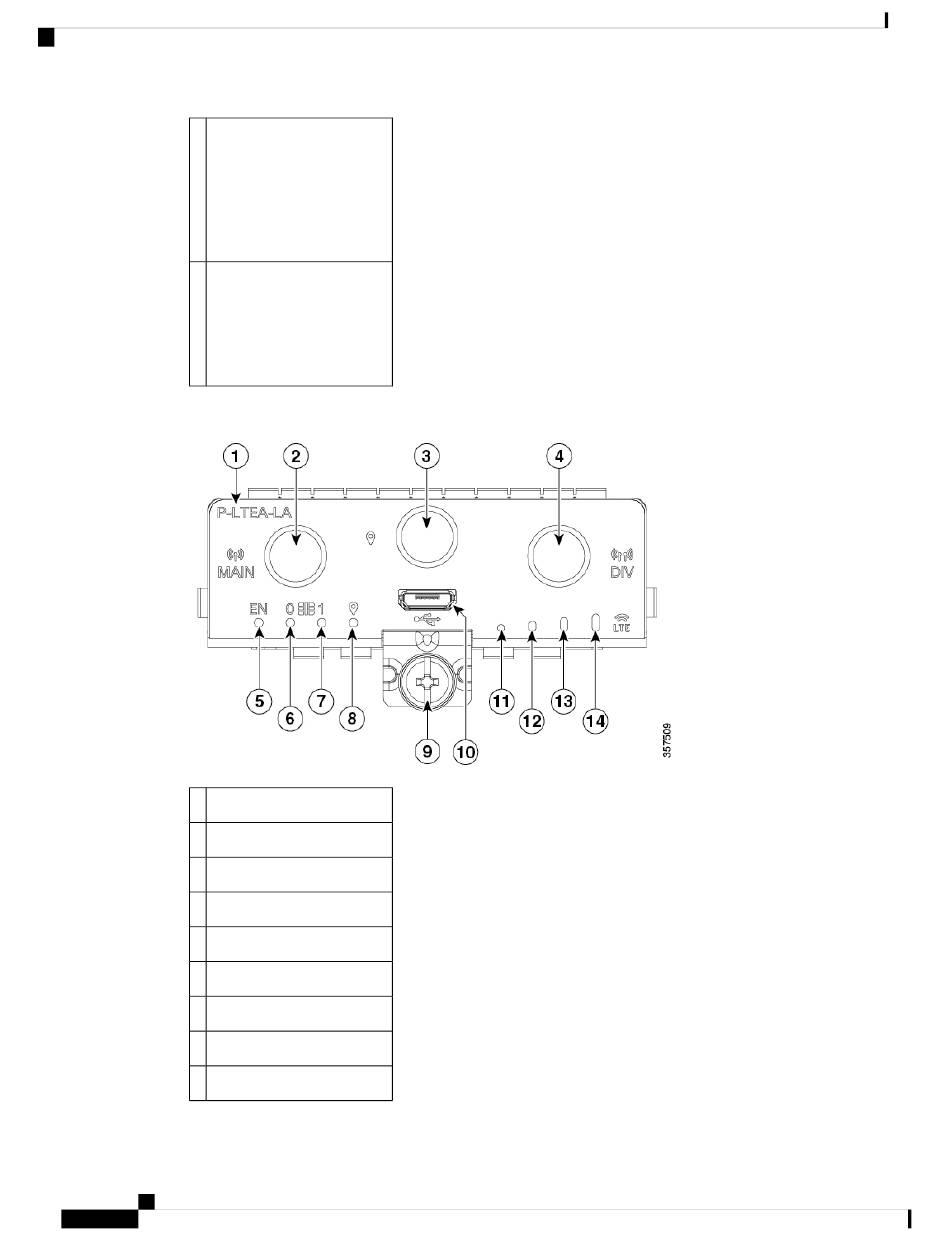

Figure 76: PLTEA-LA with Micro SIM Slots
1 PID
2 Main antenna (SMA)
3 GPS (SMA)
4 Diversity antenna (SMA)
5 Enable LED
6 SIM 0 LED
7 SIM 1 LED
8 GPS LED
9 M3.5 thumb-screw
