Install and Upgrade Internal Modules and Field Replaceable Units
Step 1
Pick up the C-Bracket (700-121628-01), place the bracket and then fix it on the wall using four screws.

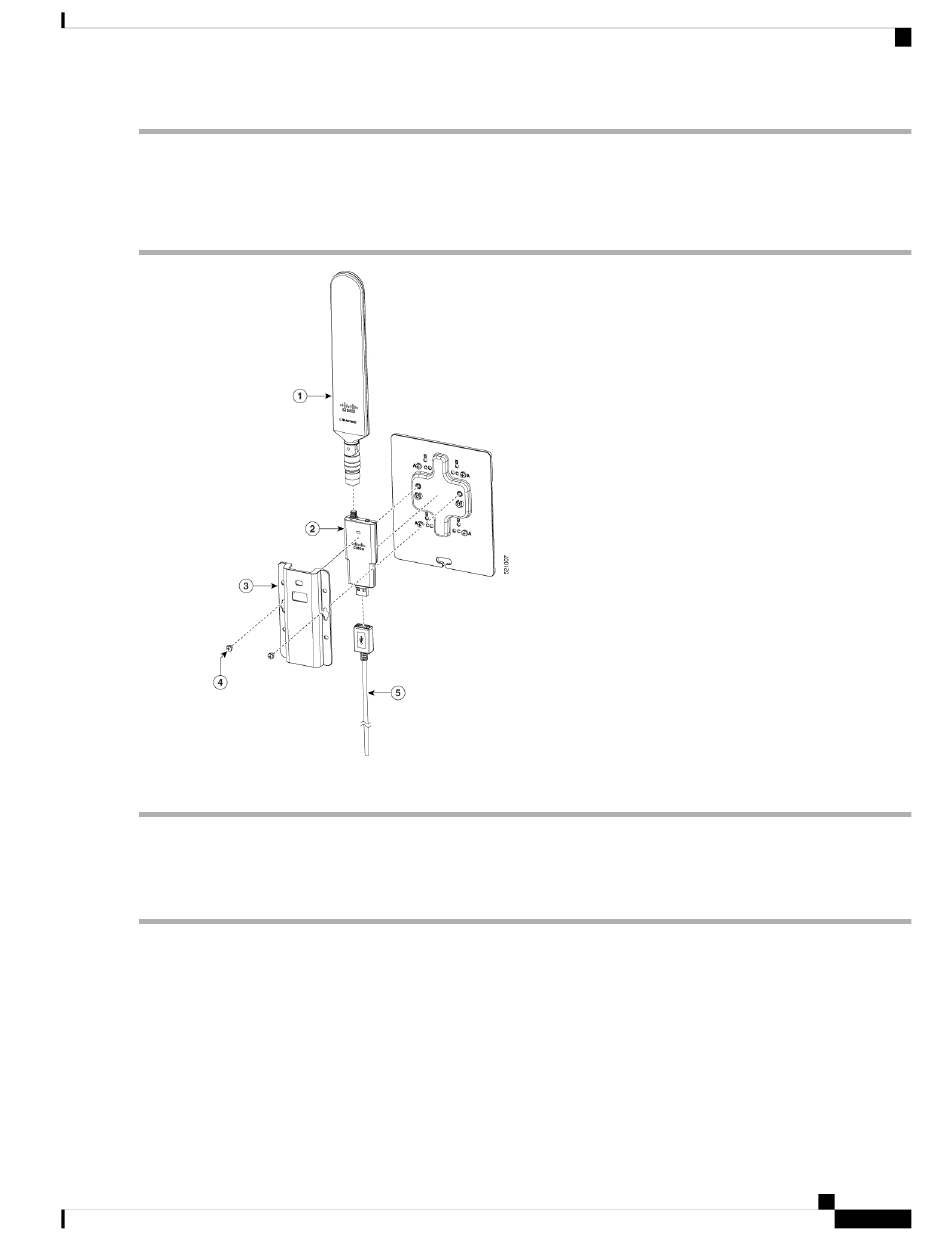

Step 2 Assemble the USB cable (74-122795-01), dongle and antenna (07-100470-01) together. Pick up the wall-mount bracket
(700-121609-01), two SCREWS (48-0580-01). Align and fasten the screws (recommended torque is 10-12 in-lb), the
wall-mount is complete.
Connect the Antenna to the Device
Step 1
Ensure the reserved USB cable length is sufficient to reach the device.
Step 2 Ensure the use the cable clip within USB cable kit (74-122795-01) to manage cable routing and to hold the cable weight.
Step 3
Ensure there are no sharp radius within the USB cable routing.
