Attach the C111x Top Plate (C1110-TOP-PLATE=) for Rack Mount

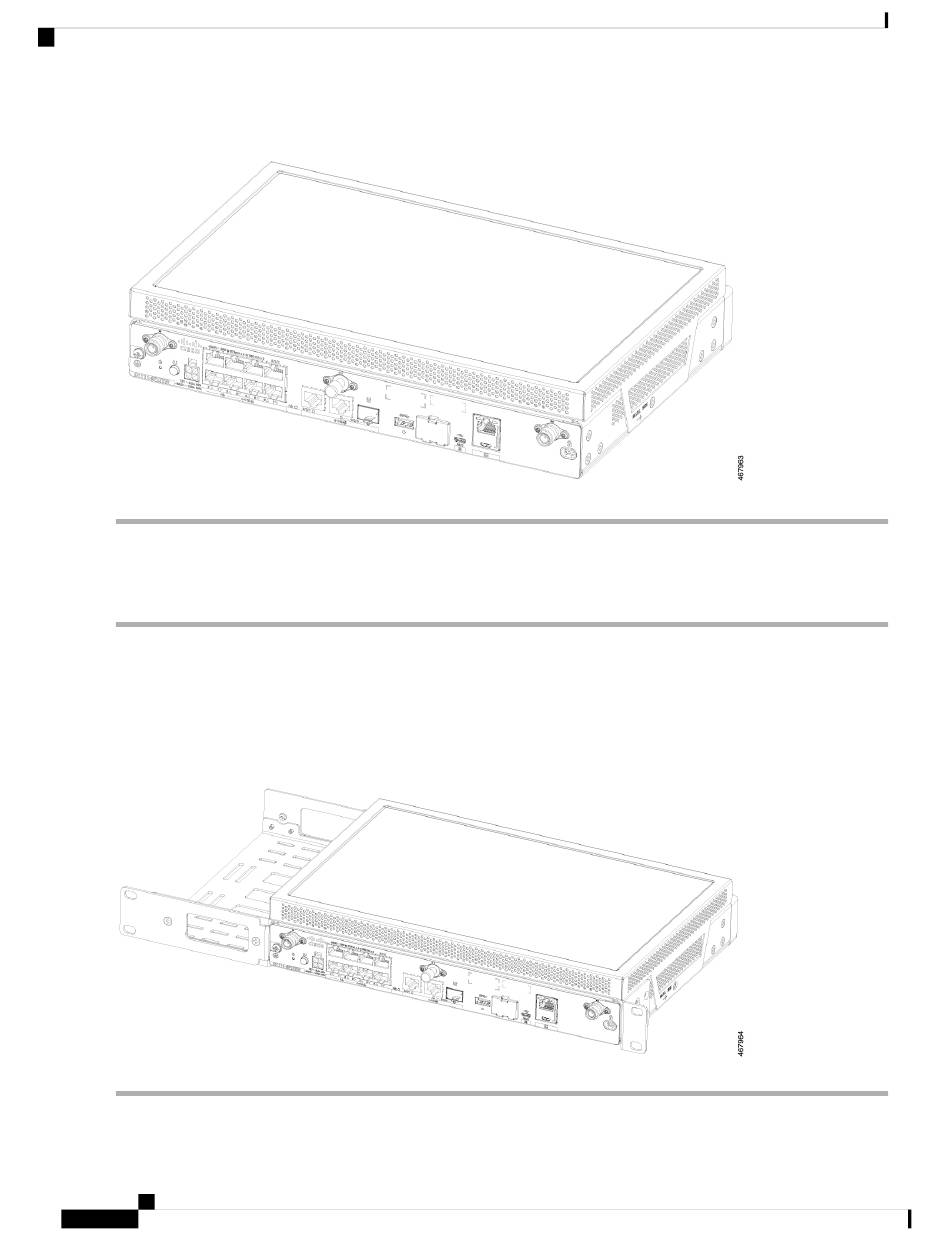

Figure 37: Fully assembled C111x unit with top plate
Attach the C111x Top Plate (C1110-TOP-PLATE=) for Rack Mount
This procedure describes how to rack mount top plate on the router chassis:
Step 1 Follow the Attach the C111x Top Plate (C1110-TOP-PLATE=) on Desktop
Step 2
Assemble the C111x unit with top plate to rack mount brackets according to the Rack Mount procedure.
Step 3 The following figure shows a complete assembled C111x unit with top plate and rack mount brackets.
Example:
Figure 38: Fully assembled C111x unit with top plate on rack mount brackets
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
38
Install and Connect the Router
to attach C111x Top Plate for Desktop.
