Chassis Views
3 4-pin power connector
5 RJ-45 stacked connector
7 GE WAN 0/0/0 -SFP
9 USB 3.0
11 Grounding

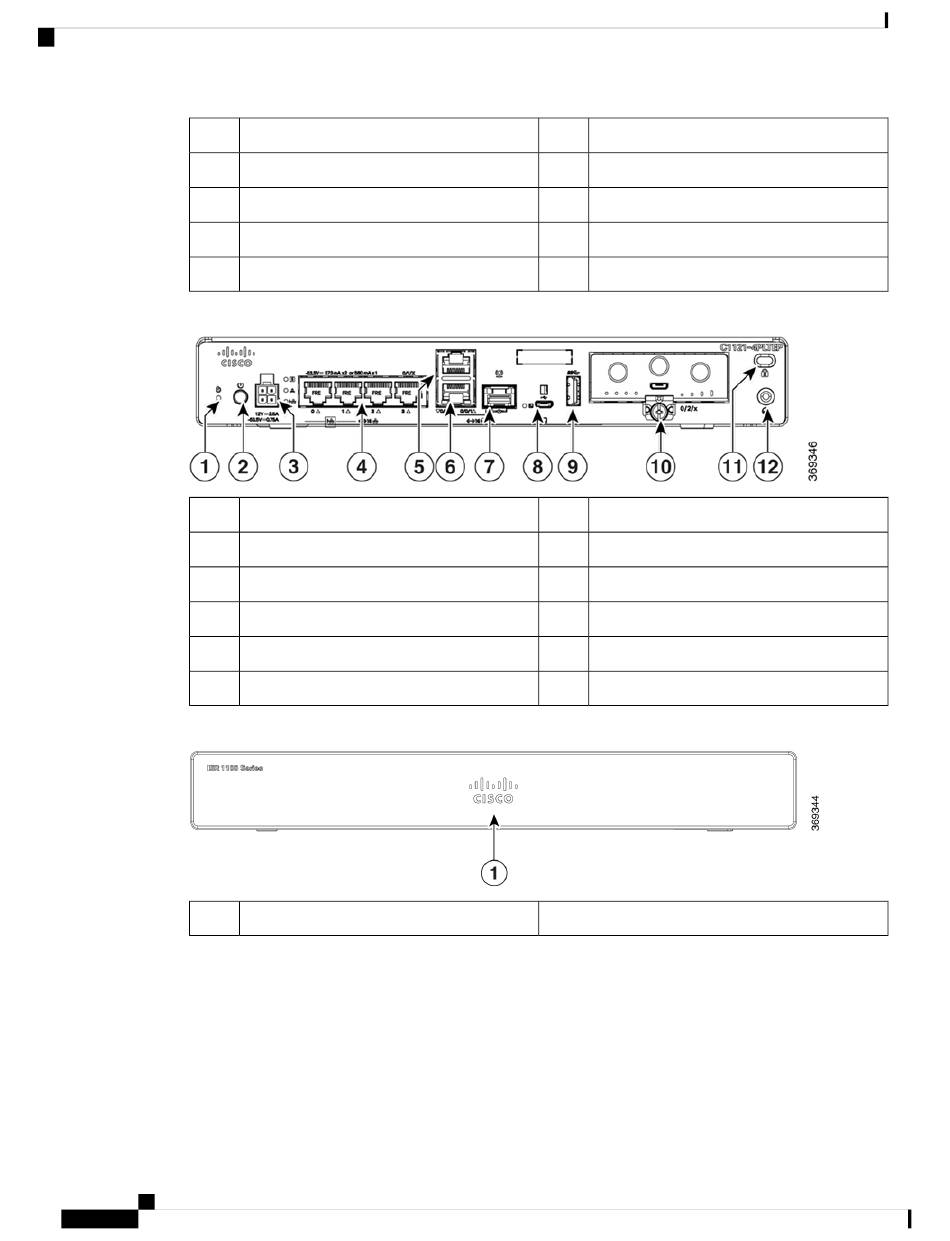

Figure 12: C1121-4PLTEP I/O View
1 Reset button
3 4-pin power connector
5 GE 0/0/1
7 GE WAN 0/0/0 -SFP
9 USB 3.0
11 Kensington lock slot
Figure 13: C1121(X)-8P - Bezel View
1 Non-illuminated Cisco logo
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
10
Overview of Cisco 1000 Series Integrated Services Routers
4 Ethernet switch
6 GE WAN 0/0/0 -RJ45
8 Micro-USB console
10 Kensington lock slot
2 Power switch
4 Ethernet switch
6 GE WAN 0/0/0 -RJ45
8 Micro-USB console
10 Pluggable
12 Grounding
