Install and Connect the Router

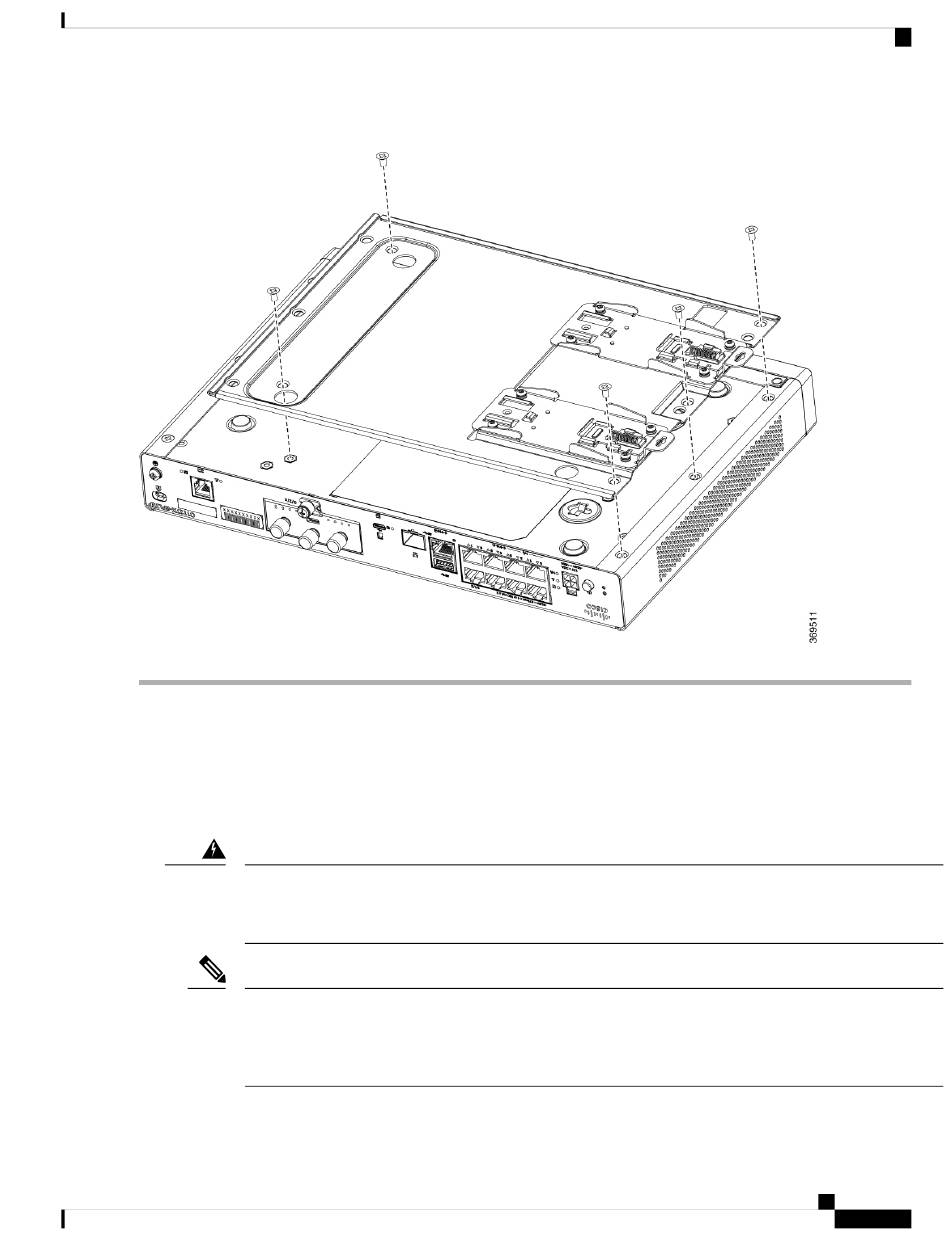

Figure 52: Attaching Din Rail Brackets for C1121-4Px, C1126-8PLTEP and C1128-8PLTEP
Wall Mount the Router
Depending on the models of the Cisco 1000 Series Integrated Services Router, the tasks for mounting the
router chassis on the wall may vary.
There are two ways to mount a router on the wall, using Key-hole slots and DIN Rail Brackets.
Warning
Note
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware
or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Statement 378.
The recommended clearance when a router is horizontally mounted is 1.5 inches on both sides for clearance
and 1.75 inches on top. I/O side clearance is needed as it is required to access the cable connections. Clearance
is not required on the backside (opposite side from I/O face) unless mounting on a DIN Rail. Clearance is
required to attach and mount the DIN rail bracket.
