GRAPHTEC midi LOGGER GL860 Quick Start Manual page 11

9. AC/Battery status
indicator
10. CH select
11. Digital display area
12. Quick settings
13. Alarm display area
14. Pen display
15. File name display
area
16. Scale lower limit
17. Waveform display
area
18. Scale upper limit
19. Recording bar
: Displays the following icons to indicate
the operating status of the AC power
and the battery.
Note: Use this indicator as a guideline
because remaining battery
power is an estimate.
This indicator does not
guarantee the operating time
with battery.
: Displays analog, logic, pulse, and calculation.
: Displays the input values for each channel. The
be used to select the active channel (enlarged display).
The selected active channel is displayed at the very top of the
waveform display.
: Displays items that can be easily set. The
to activate a Quick settings item, and the
the values.
: Displays the status of the alarm output. (red = alarm generated, white
= alarm not generated)
: Displays the signal positions, trigger
positions, and alarm ranges for each
channel.
: Displays the recorded file name during
the recording operation.
When data is being replayed, the
display position and cursor information
are displayed here.
: Displays the lower limit of the scale of
the currently active channel.
: The input signal waveforms are displayed here.
: Displays the upper limit of the scale of the currently active channel.
: Indicates the remaining capacity of the recording medium during data
record.
When data is being replayed, the display position and cursor
information are displayed here.
10

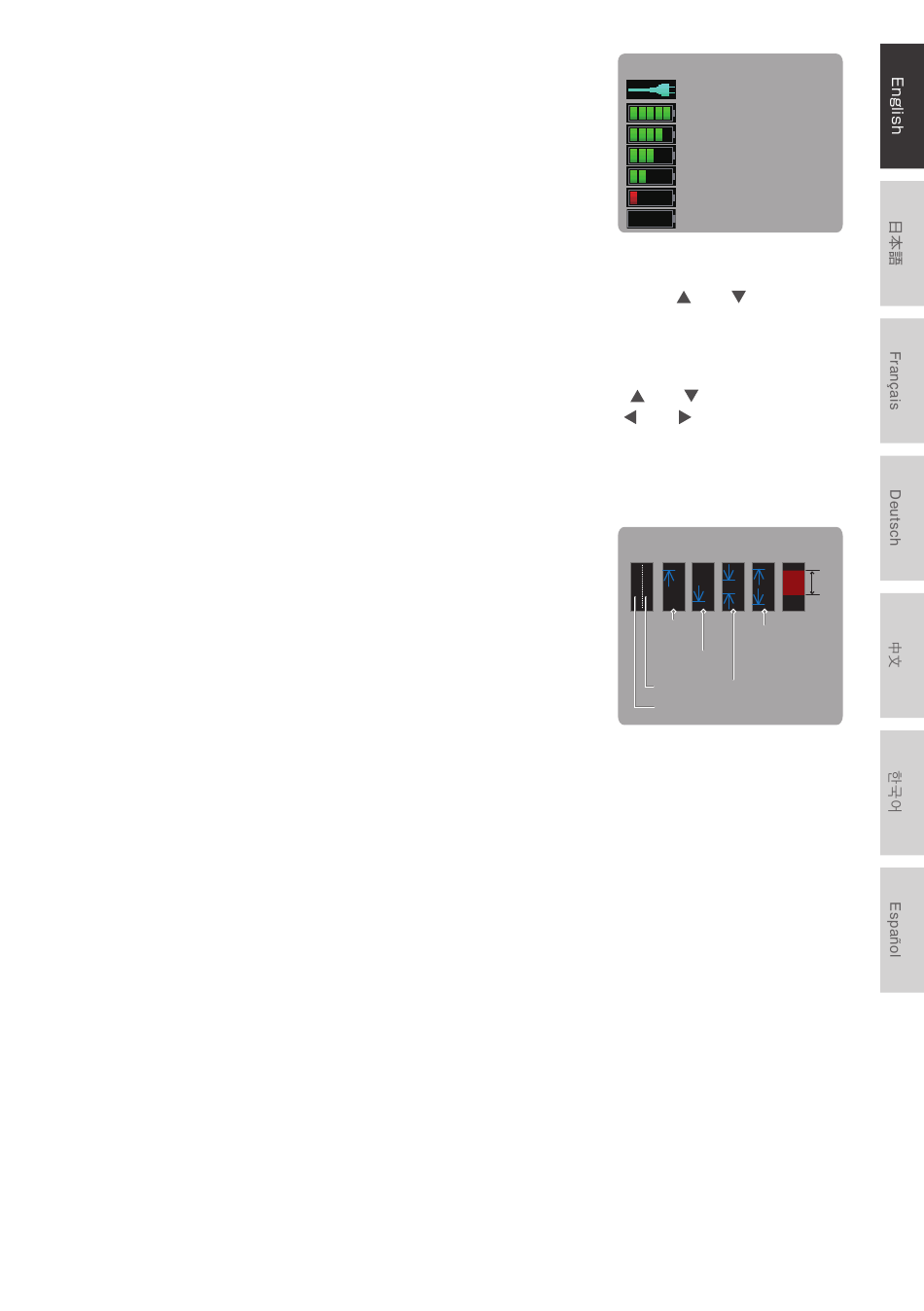

AC/Battery Indicator
When the AC power
supply is being used
Battery power: 100 - 90%
Battery power: 89 - 70%
Battery power: 69 - 50%
Battery power: 49 - 30%
Battery power: 29 - 10%
Battery power: 10% or less
and keys can
and keys can be used
and keys to change
Pen display
Trigger position Alarm range
Rising
Outside
trigger
the range
Falling
trigger
Stop side
Within
the range
Start side
