Chapter 2 — Installation

Controls and Indicators

Indicator Lamps

12 EasyCoder PX4i Bar Code Label Printer User's Guide (Fingerprint Version)
The printer can be set to scan all communication ports. When it
detects incoming data on a port, the printer automatically
switches to use that port for both input and output. This facility
("auto") can be selected in Intermec Shell (see
Startup Program" on page
instruction SETSTDIO, see Intermec Fingerprint v8.3x,
Programmer's Reference Manual. Press F5/i to get information on
the active communication channels.
Switch off both PC and printer before connecting them together.

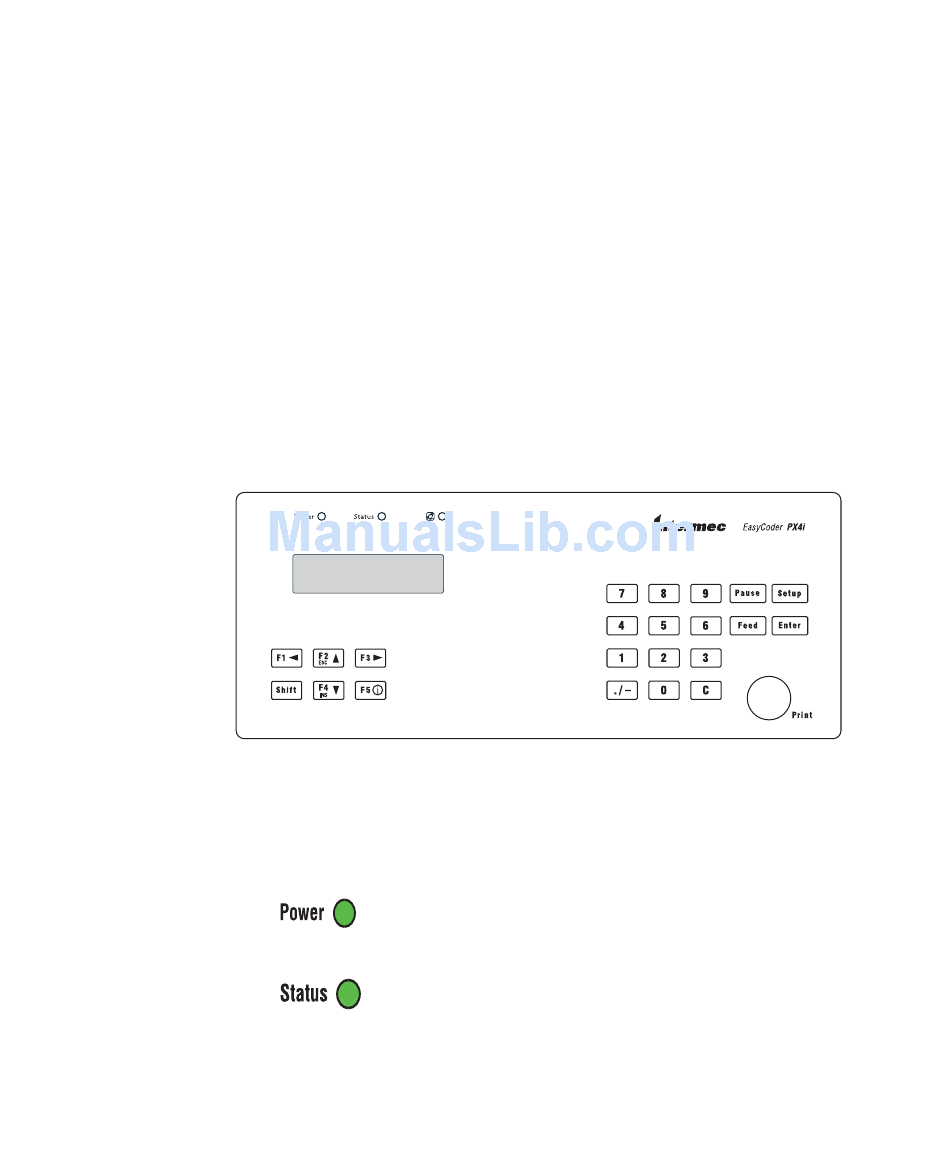

The EasyCoder PX4i printer has several ways of communicating
directly with its operator: three colored LEDs, a display window,
a membrane-switch keyboard with 23 programmable keys and
buttons on the front, and a beeper.
Display and controls
The indicators are colored LEDs (Light Emitting Diodes) and are
used for the following purposes:
Power (solid green) indicates that the power is on.
Status (solid green) indicates that the printer is ready for use.
"Intermec Shell
91) or using the Intermec Fingerprint
