EasyCoder PX4i Bar Code Label Printer User's Guide (Fingerprint Version)

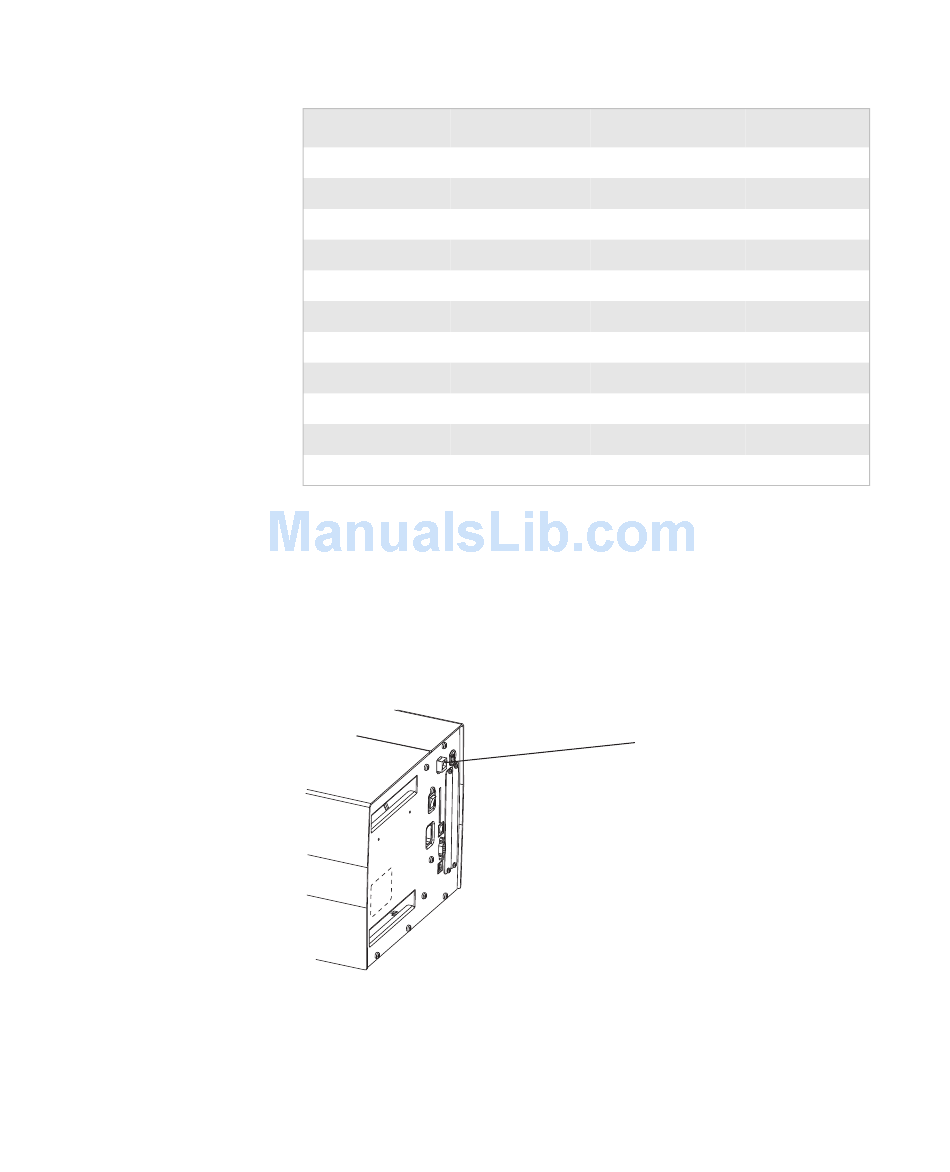

Allowed Interface Combinations
Left-hand slot Ports
Double Serial uart2: + uart3:
Double Serial uart2: + uart3:
Double Serial uart2: + uart3:
Double Serial uart2: + uart3:
Serial/Industrial uart2:
Serial/Industrial uart2:
Serial/Industrial uart2:
Serial/Industrial uart2:
IEEE 1284 centronics:
IEEE 1284 centronics:
IEEE 1284 centronics:
Remarks:
• The left-hand slot is the slot closest to the center section.
• Always start by fitting an interface board in the left-hand slot.
• RS-485 is only supported by "uart2:".
EasyLAN Ethernet Interface
Appendix C — Interfaces
Right-hand slot Ports
– –
Double Serial uart4: + uart5:
Serial/Industrial uart4:
IEEE 1284 centronics:
– –
Serial/Industrial uart3:
Double Serial uart3: + uart4:
IEEE 1284 centronics:
– –
Double Serial uart2: + uart3:
Serial/Industrial uart2:
"net1:"
159
