Chapter 4 — Loading Media
38 EasyCoder PX4i Bar Code Label Printer User's Guide (Fingerprint Version)

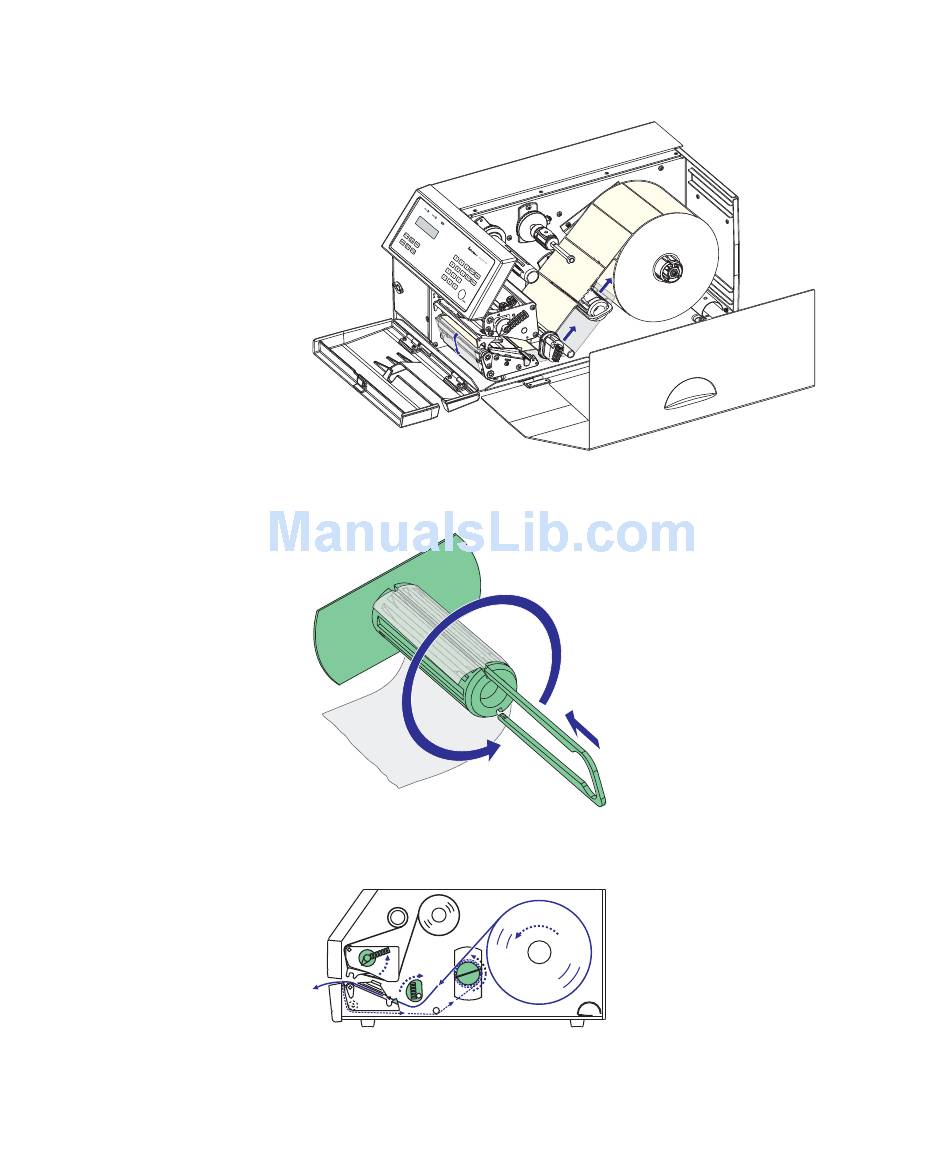

10 Route the liner around the tear bar and back under the print
unit.
11 Secure the liner to the takeup hub with the green clip (1) and
rotate the hub (2) until the media is pulled tight.
12 This diagram shows the path the media and liner will take
through the printer.
1.
2.
