Chapter 2—Installation

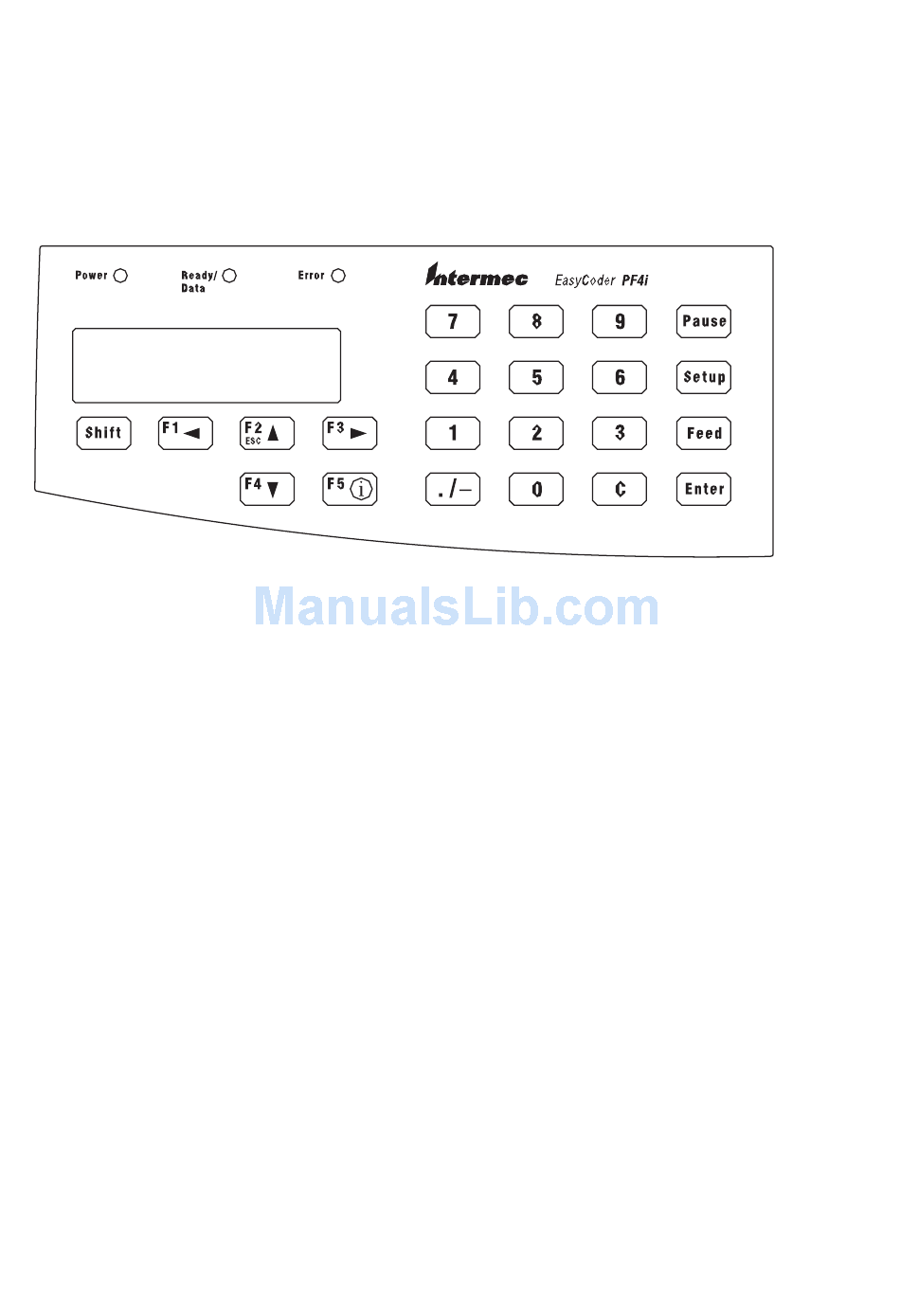

Controls and Indicators

The EasyCoder PF4i Compact Industrial has several ways of communi-
cating directly with its operator: three control lamps, a display window, a
membrane-switch keyboard with 22 programmable keys, a big program-
mable "Print" button on the printer's front, and a beeper.

Control Lamps

The control lamps are colored LEDs (Light Emitting Diodes) and are
used for the following purposes:
• Power (green) indicates that the power is on.
• Ready (solid green) indicates that the printer is ready for use.
Data (fl ashing green) indicates that the printer is communicating.
• Error (red) indicates that some kind of error has occurred. With a
serial communication, an error message may be returned to the host
computer.

Display

The display window contains an LCD (Liquid Crystal Display) with
background illumination and two lines of text, each with 16 characters.
It guides the operator through the setup and indicates possible errors
during printing.
The Intermec Fingerprint programming language and the Intermec
Direct Protocol allow custom-made messages to be composed and dis-
played according to the requirements of the application.
14 Intermec EasyCoder PF4i Compact Industrial—User's Guide (Fingerprint)
