Initial Operation
5.7.2
Importing Function Components

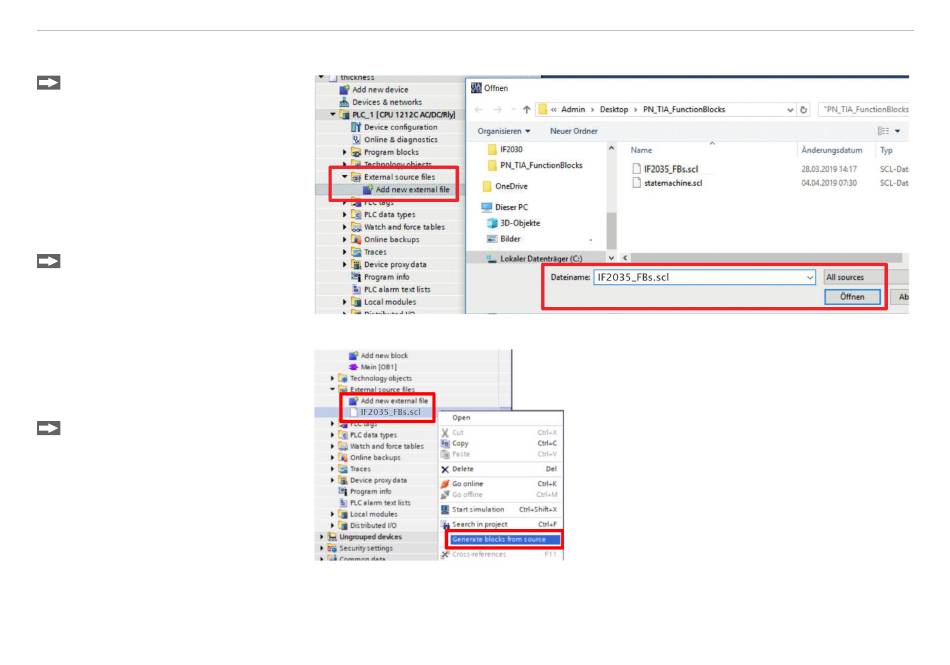

Go to Project navigation. In
your SPS, follow the path Exter-
nal source files > Add new
external file. Double-clicking
that link opens a Dialog window.
Now select the path for the source
file IF2035_FBs.scl and click
the Open button.
The file is located in the External
source files folder. Next, the func-
tion components must be transferred to
the program components.
Open the context menu by
right-clicking the file and select
the Generate blocks from
source function in that menu. If
displayed, confirm a message that
existing blocks will be overwritten.
IF2035-PROFINET
Page 32
