Installation and Assembly
4.2.2

Connection Options

Sensor/ Cable RS485
Controller
PCx/8-M12
ACC5703
SCAC3/6
DT6120
PC5/5-IWT
DTD
PCx/8-M12
INC5701
PC7400-6/4
MSC7x0x
Connector kid

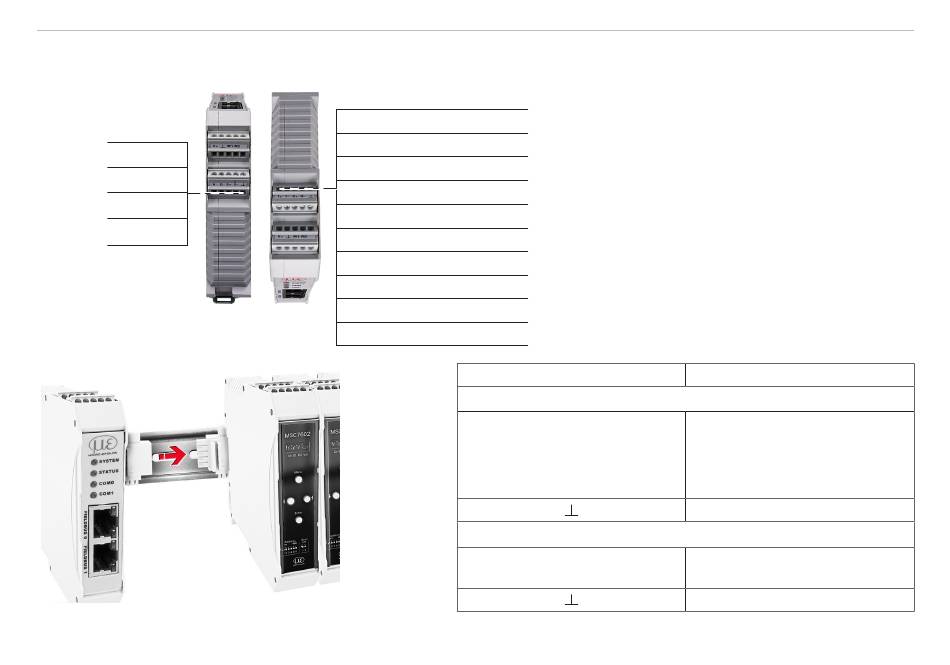

Fig. 6 Connection of an MSC7602 with MSC7602 connector kit Fig. 7 Wiring regulation for connections with RS485 or RS422
IF2035-PROFINET
RS422 Cable
CAB-M9-5P-St-ge; xm-PVC-RS422
SC2471-x/RS422/OE
Direct or PCF1420-x/I/U
PC1700-x/OE
PC1900-x/OE
PC2300-x/OE
PC2250-x
PC/SC2520-x
PCSC2700-x
SC2471-x/RS422/OE
CAB-M12-8P-St-ge; xm-PUR; open
Sensor/Controller
ACS7000
IFC242x, IFC246x
ILD1x20
ILD1750
ILD1900
ILD2300
ILR2250
ODC2520
ODC2700
IMS5400-TH, IMS5x00-DS
MFA-x
IF2035-PROFINET
RS422
T+
T -
R+
R -
RS485
A
B
The length of the cable
between IF2035-PROFINET
and sensor/controller is 10
m at most. Because of the
PCx/8-M12 cable, the sensor
supply for ACC5703 and
INC5701 sensors is possible
only via the IF2035-PROF-
INET.
Fig. 5 Connection examples
for IF2035-PROFINET
Sensor/Controller
R+
R -
T+
T -
Cable shield
A
B
Cable shield
