Labconco ReVo User Manual page 75

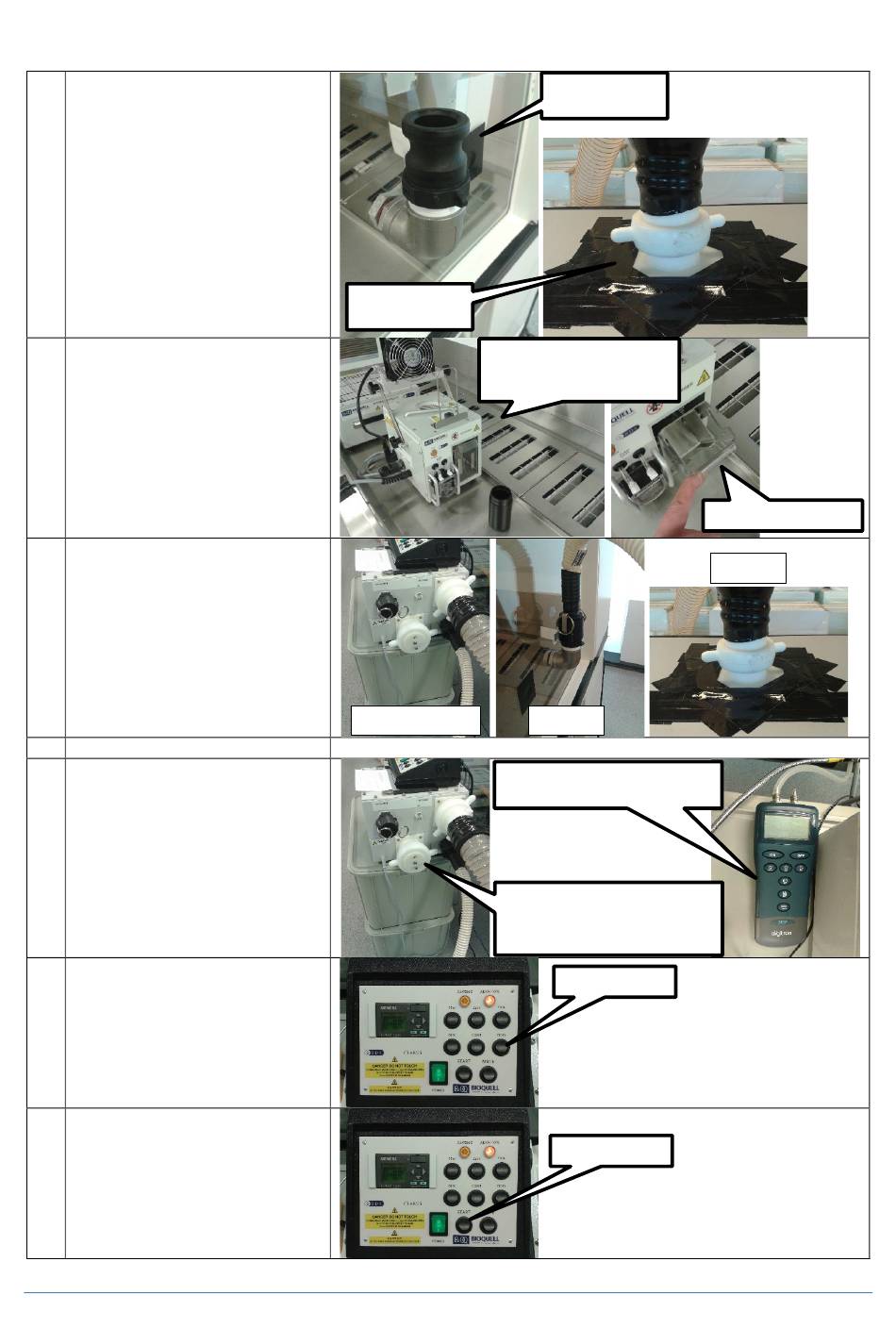

Pictures for step by step decontamination procedure
1 Prepare the cabinet
2 Place the BIOQUELL
equipment in the cabinet
3 Connect the hoses to the
Clarus S equipment and the
cabinet.
4 Tape up the cabinet
5 Adjust the pressure in the
cabinet
6 Setting up the Clarus
controller
7 Start the decontamination
process
3" outlet on top
plate
Top: Internal catalyst
Middle: Generator
Bottom: Container for H
External catalyst
Pressure gauge with test tube
inside the working chamber
Lid for 3" outlet with adjustment
plate for setting of the correct
process negative pressure
75
1" inlet in side
window
O
2 2
1" hose
155 ml button
START button
Holder for container
3" hose
