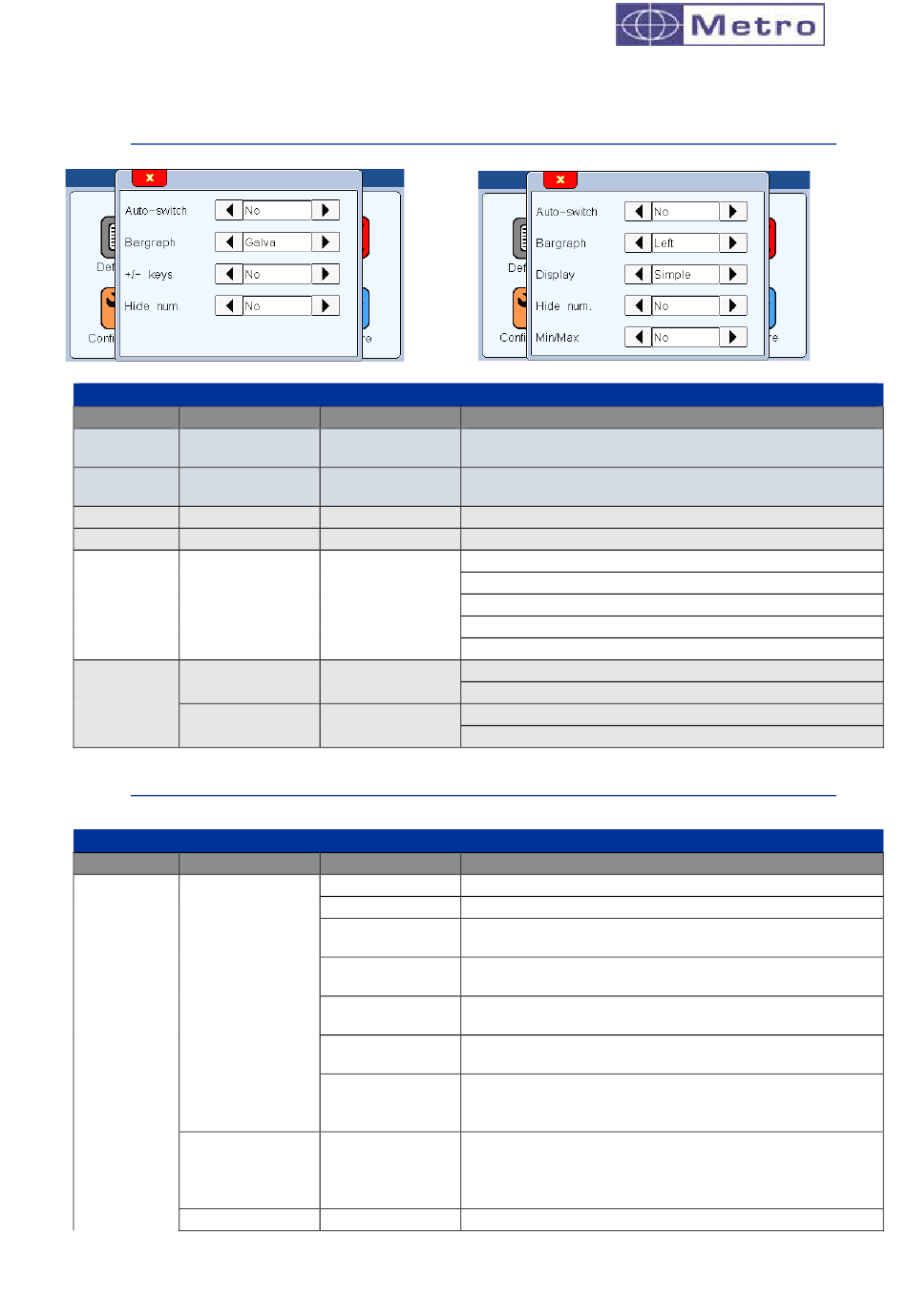

10.2.3. Window DISPLAY

Rubric Read. command
Auto switch AUTO?
Bargraph BAR?
Display DISPL?

10.2.4. Window SET UP

Rubric Read. command
AG
AGG?
AGGn?
Window "display"
Write command Comment
Locks characteristics display update while
CFG_ENTER characteristics display settings are changed
Unlocks characteristics display update after
CFG-LEAVE characteristics display settings are changed
AUTO=x x=0 (manual)
x=1 (auto)
BAR=x x=0 (horiz. Bar origin left)
x=1 (horiz. Bar origin center)
x=2 (needle)
x=3 (galva)
x=4 (non = value only, no tolerance)
x=0 (display 1 characteristic on the screen)
x=1 (display 2 characteristics on the screen)
DISPL=x x=1 (display 1 characteristic on the screen)
x=2 (display 2 characteristics on the screen)
Window "SET UP"
Write command Comment
AGI Air Gage Channel Calibration Initialization
AGL=1 or 2 Selecting the channel to calibrate
Filter level of the channel (Requires that AGI then
AGF= AGL=n has been executed previously)
Min value of the master (Requires that AGI then AGL=n
AGN= has been executed previously)
Central value of the master in option (Requires that AGI
AGC= then AGL=n has been executed previously)
Max value of the master (Requires that AGI then
AGA= AGL=n has been executed previously)
End of calibration configuration + display of the
configuration window (Requires that AGI then AGL=n
AGS has been executed previously)
Air Gage Gain
0=channel calibration is done with 2 or 3 masters
1=channel calibration is done with one gain and one
master
Gain used on channel n
