Metro DataVac M1 User Manual page 24

Reference : ACS-PNE-004
Standard regulator :
Pressure 5 BAR / 0.5 Mpa
This air saving regulator can be controlled with the MB-RO module. It works either in
standard or in "eco" mode, depending on the instruction given by the module.
The principle: Following a period without action (no pressure variation, no touch
screen, etc.), the M1/M3 will send a command to the regulator which will switch to a
much lower pressure (1 bar) to supply the air gage.
The objective is to maintain a constant +/- temperature on the air gage so as not to
deteriorate the measurement and to reduce air consumption very significantly.
When the operator places the piece back on the air gage or touches the M1/M3
screen, the regulator will return to 3BAR pressure for the measurement.
24

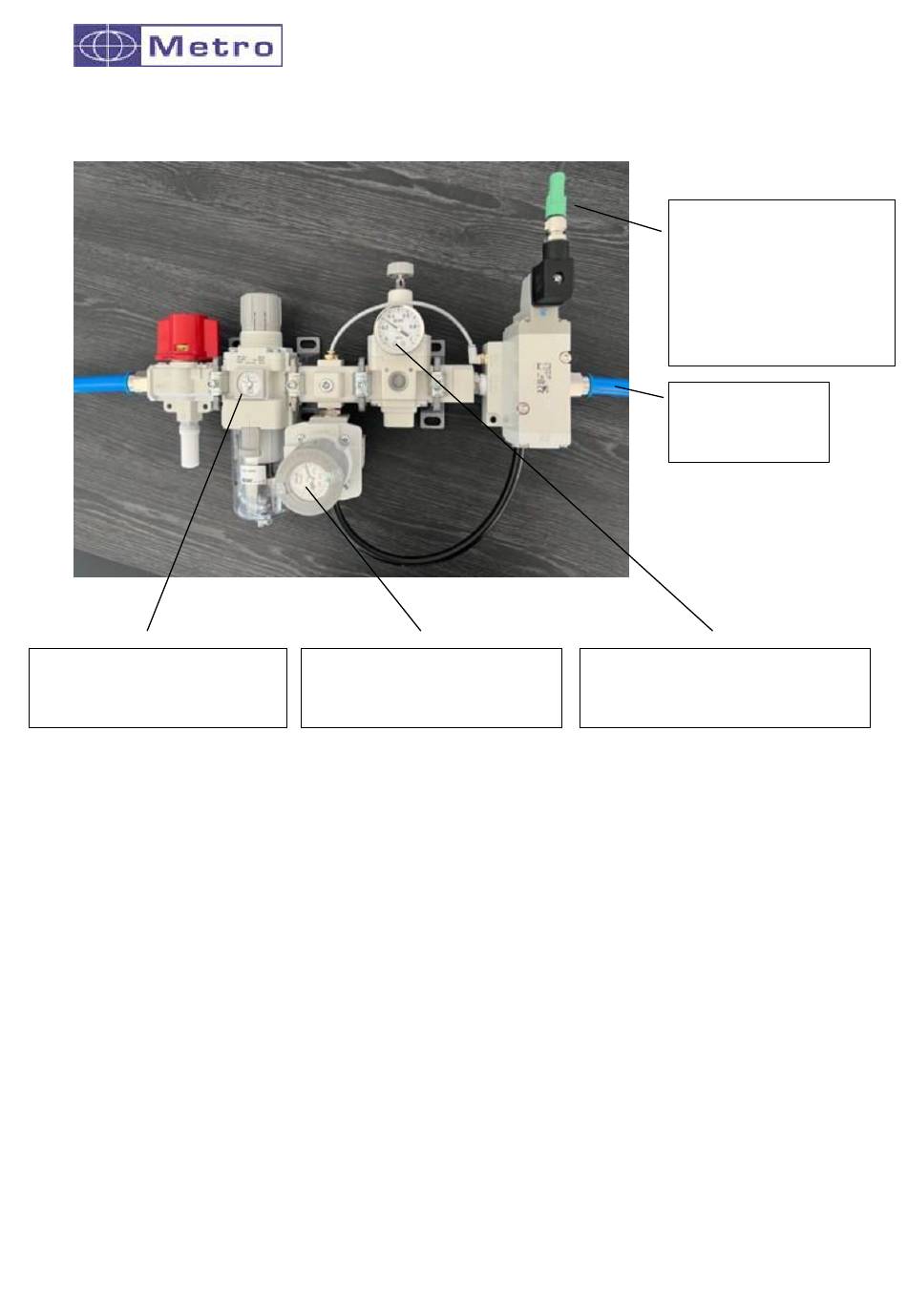

Regulator to pilot reduced
pressure: to be set at
around 0.3 BAR
M1 – M3 AG
Controllable solenoid
valve to regulate the
air in standard or
economy mode,
connected with the
M12 cable ref 45186
Tube external
diameter 8mm
Precision regulator :
Pressure 3 BAR / 0.3 Mpa
