3.3.
CHARACTERISTICS
3.3.1. Main technical characteristics
• TFT colour touch screen display 4,3'', resolution 480x272.
• Static or dynamic measurements (Max, Min, Max-Min, Average, Median)
• Analogue or digital display
• 1 or 2 measurement configurations (2 characteristics)
• Possibility to automatically select the characteristic by using the air gage or by
touching the screen.
• Relative or absolute display
• Display resolution (up to 0.1µm)
• Metric (mm or µm) or Imperial (Inches) measurement
• RS232 port for communication with a PC
• USB port for communication and/or power supply
• USB Stick for data saving on a CSV file
• Optional connection of M-Bus modules
• Measurement transfer by pressing a key, footswitch input or retro-command on
the RS232 port.
• Operating temperature: +15°C to +30°C
• Power supply from 85 to 265 VAC by using the supplied main transformer (or by
connecting it directly on your PC USB port, or through the 24 VDC screw terminal.
• Relative humidity: maximum 80%
• Dimensions: width 130 mm, height 111 mm, depth 105 mm
• Mass: 600 grams (700g with the power supply)
3.3.2. Dimension and installation

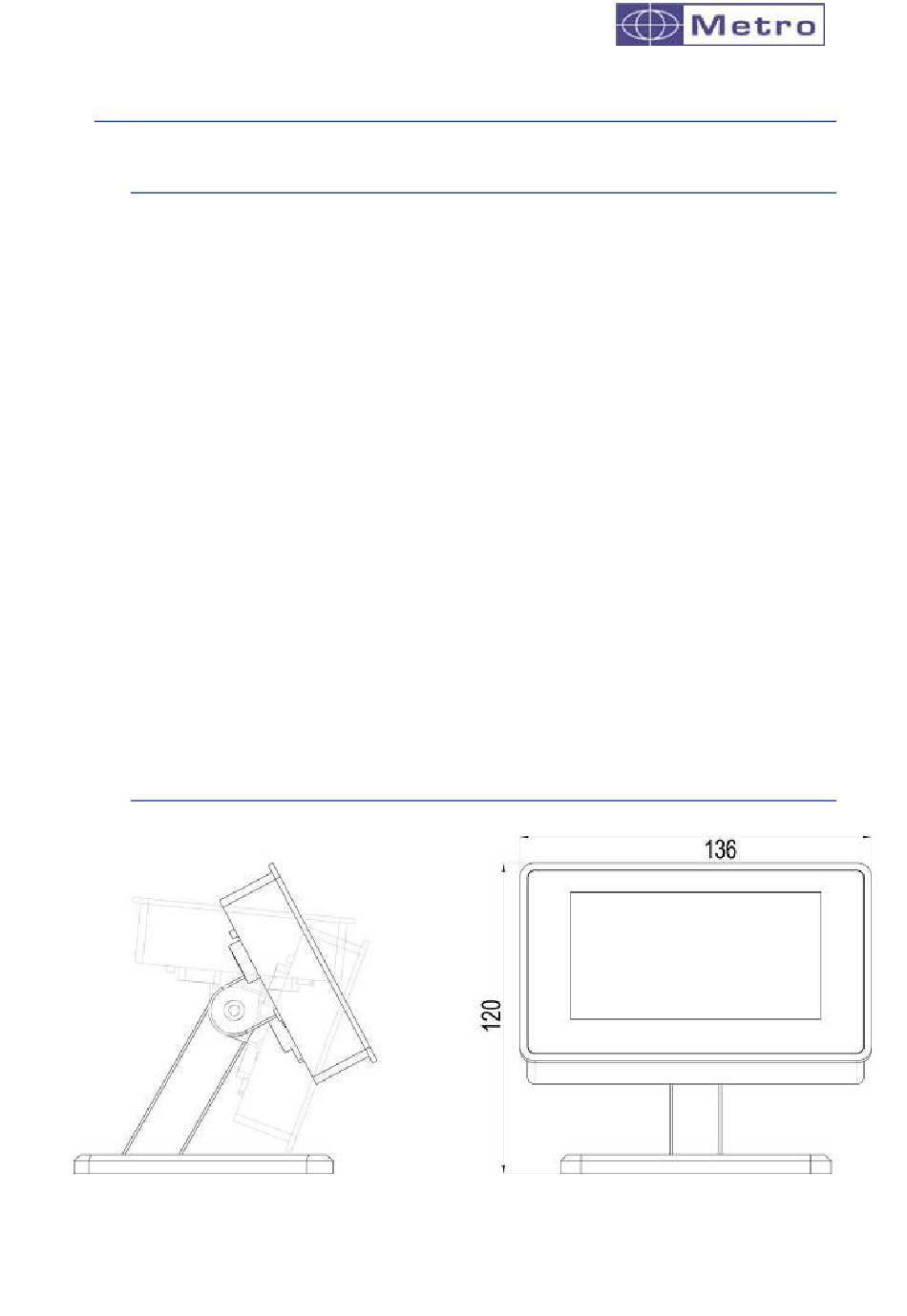

The M3 is fitted with 4 thread M5 allowing to attach it. To access to these threads, it is
necessary to remove the 4 antiskid plastic parts.
