M1 – M3 AG
Footswitch
status FOOTV?

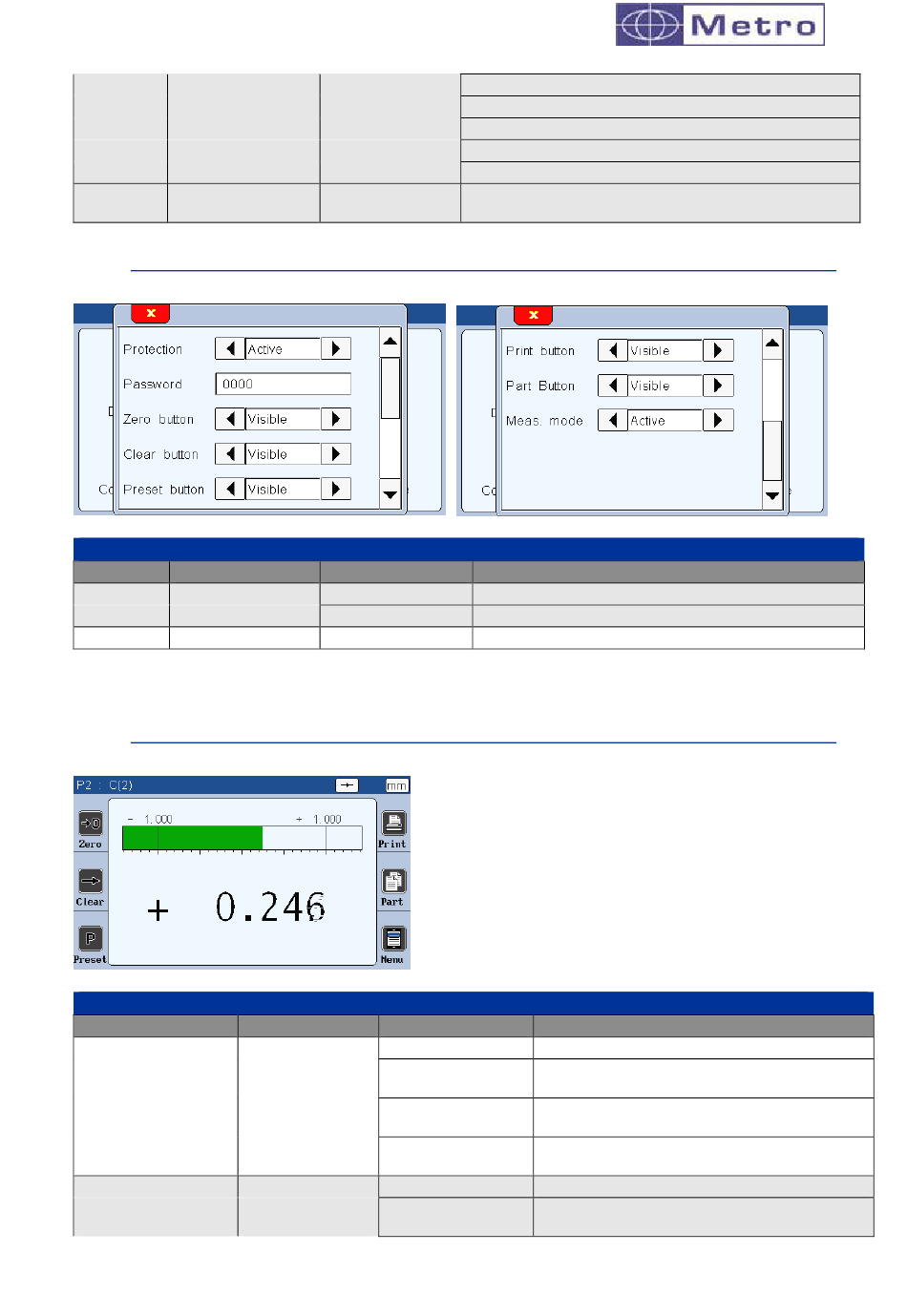

10.2.6. Window « Lock »
Rubric Read. command
Protection LOCK?
Code PASS?

10.2.7. Measuring screen

Rubric Read. command
Zero
Clear zero
x=4 (start dynamic measurement)
x=5 (stop)
x=6 (screen shot)
x=7 (IO output)
x=8 (no function)
0= released
1= triggered

Window "Lock"

Write command Comment
LOCK Lock
UNLOCK Unlock
PASS=xxxx xxxx = password with 4 figures
Measuring screen
Write command
ZERO
ZERO 1
ZERO 2
ZERO ALL
ABS
ABS 1
Comment
Switch to relative mode
switch the characteristic 1 to relative, returns
ZERO 1 DONE
switch the characteristic 2 to relative, ,
returns ZERO 2 DONE
switch the characteristic 1 & 2 to relative,
returns « ZERO n DONE »
Switch to absolute mode
switch the characteristic 1 to absolute, ,
returns ABS 1 DONE
