M1 – M3 AG

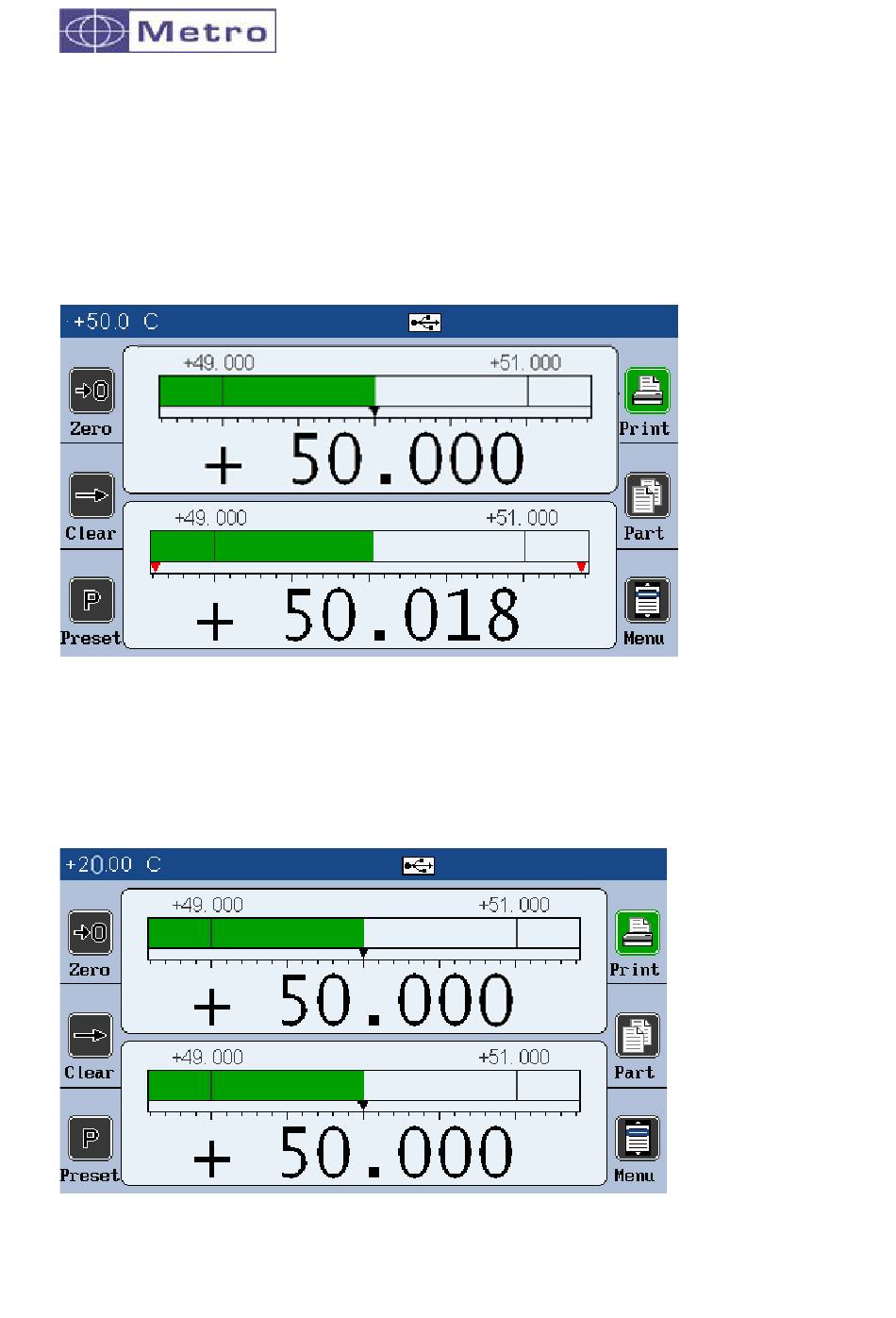

Use case n°2 : calibration at 50°C, measure of a part at 50°c, verification at 20°C
In this case, we specify the master of the "normal characteristic" at 50.018mm
The compensated characteristic keeps the master at 50.000mm
We heat the master at 50°C, and we calibrate at 50°C
The » compensated characteristic », stays at 50mm, thanks to the master
compensation during the calibration phase.
If we let everything cool down to 20 degrees, we find:
