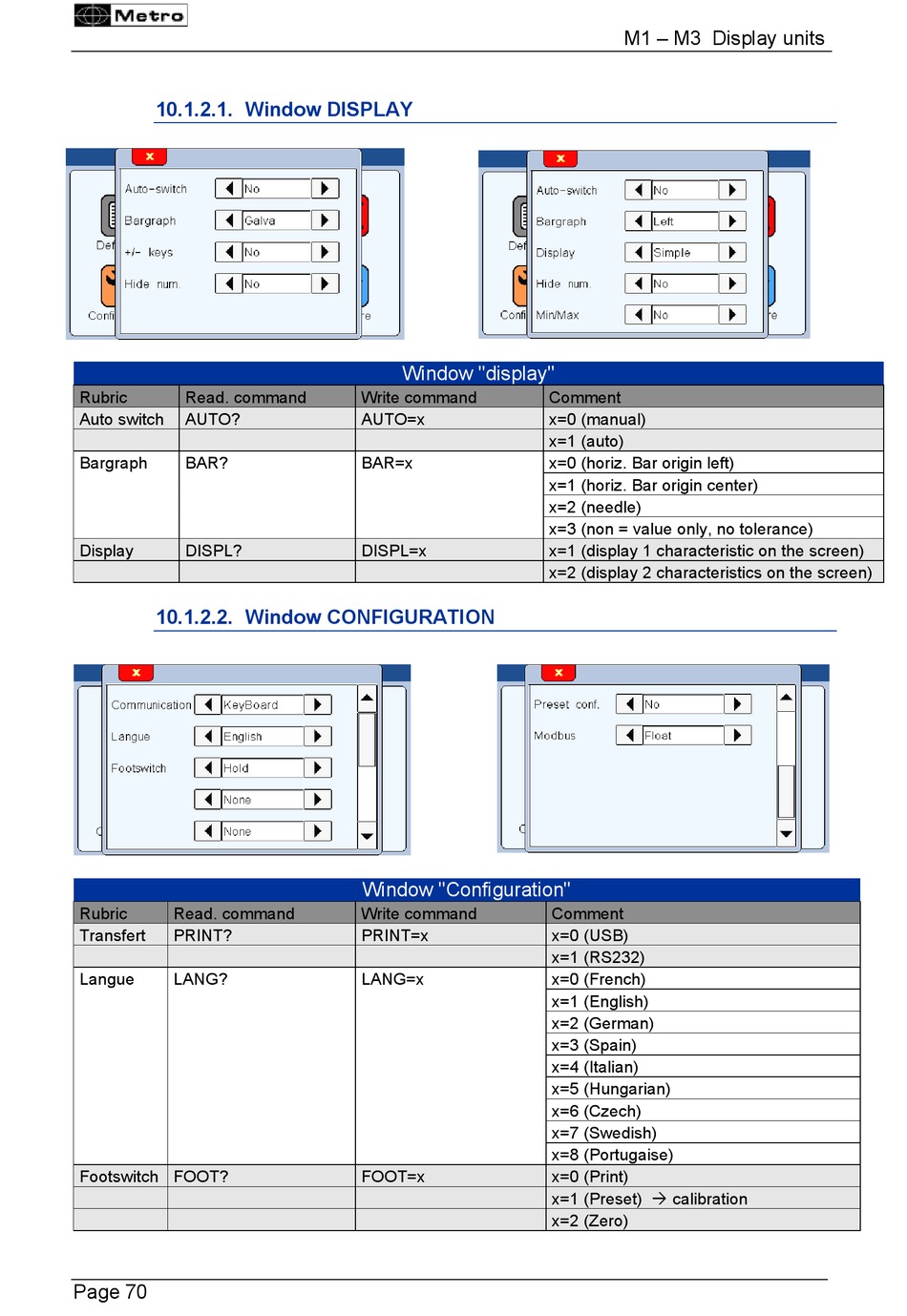

10.1.2.1. Window DISPLAY

Rubric Read. command
Auto switch AUTO?
Bargraph BAR?
Display DISPL?

10.1.2.2. Window CONFIGURATION

Rubric Read. command
Transfert PRINT?
Langue LANG?
Footswitch FOOT?
Page 70
Window "display"
Write command
AUTO=x
BAR=x
DISPL=x
Window "Configuration"
Write command
PRINT=x
LANG=x
FOOT=x
M1 – M3 Display units
Comment
x=0 (manual)
x=1 (auto)
x=0 (horiz. Bar origin left)
x=1 (horiz. Bar origin center)
x=2 (needle)
x=3 (non = value only, no tolerance)
x=1 (display 1 characteristic on the screen)
x=2 (display 2 characteristics on the screen)
Comment
x=0 (USB)
x=1 (RS232)
x=0 (French)
x=1 (English)
x=2 (German)
x=3 (Spain)
x=4 (Italian)
x=5 (Hungarian)
x=6 (Czech)
x=7 (Swedish)
x=8 (Portugaise)
x=0 (Print)
x=1 (Preset)  calibration
x=2 (Zero)
