M1 – M3 AG
4. AIR PREPARATION UNIT – AIR PIPES
4.1.

Air preparation unit

Air gaging is a measurement of pressure variation.
The variation of pressure must be due to the variation of distance between the gage
and the part being measured. Therefore, it is mandatory to have a high stability air
input, in order not to have variation of pressure due to air input variation.
Metro can supply several air preparation, already set.

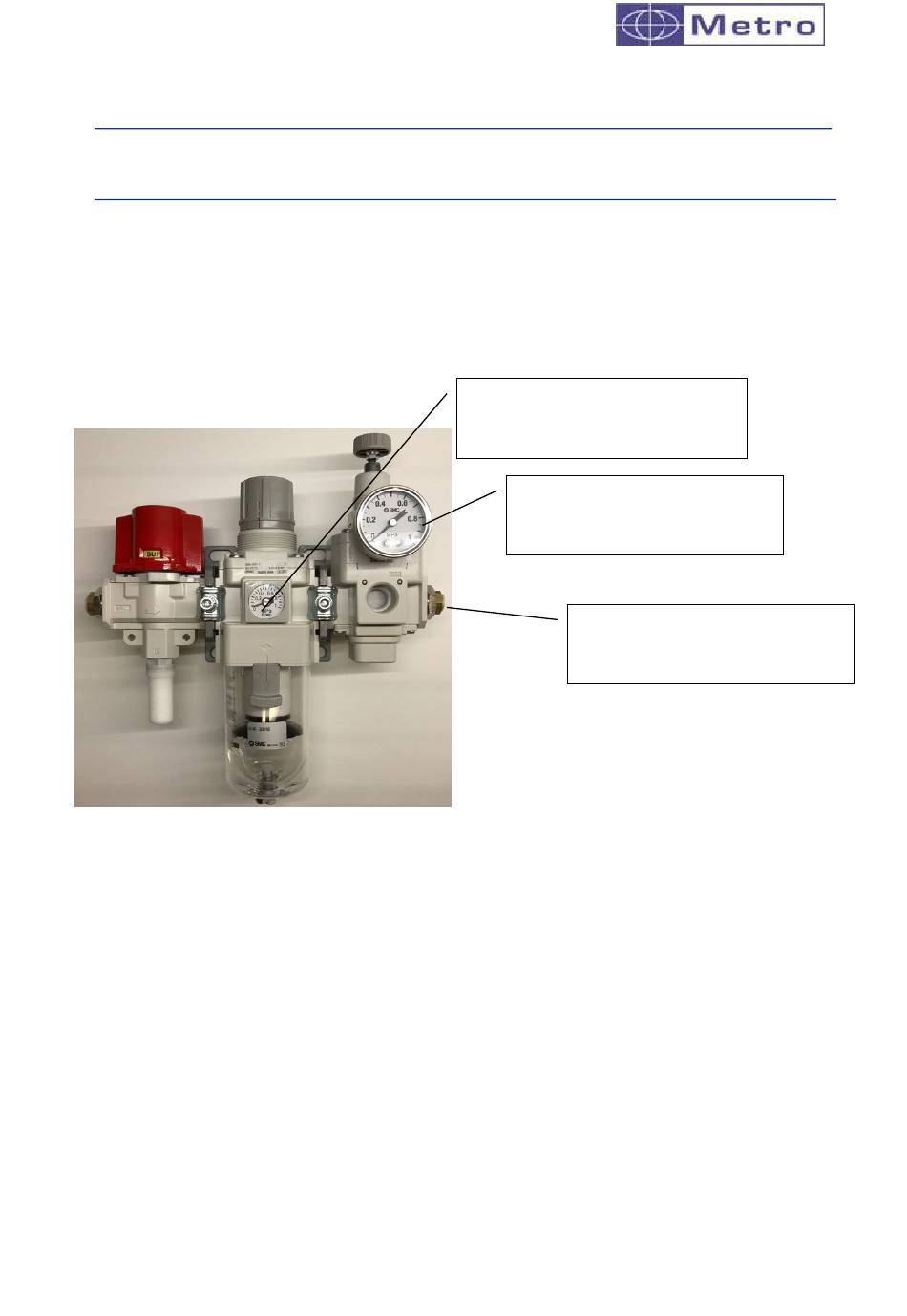

ACS-PNE-003
Standard regulator :
Pressure 5 BAR / 0.5 Mpa
Precision regulator :
Pressure = 3 BAR / 0.3 Mpa
1 push in connector for 8mm
ext. tubes
