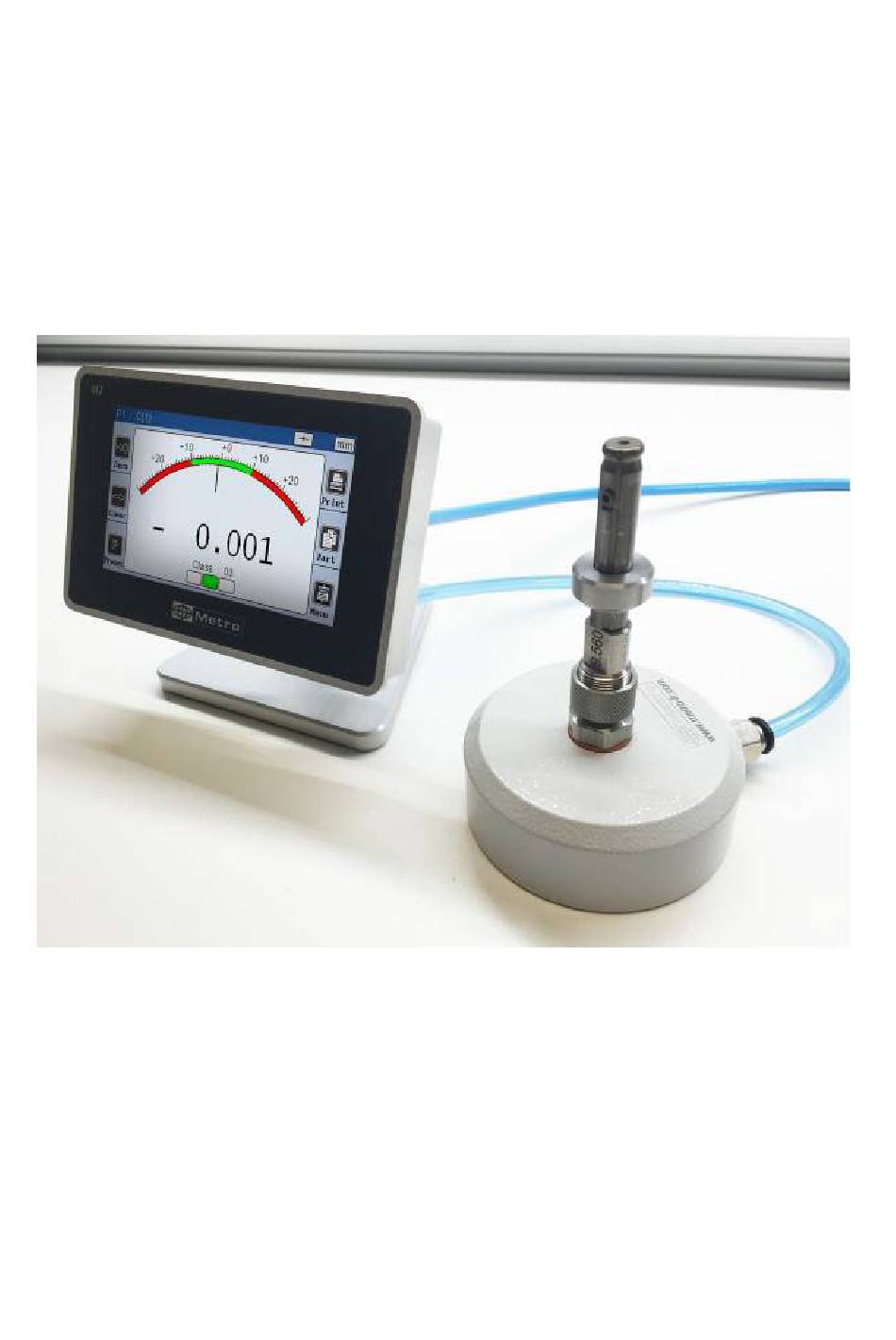

Metro DataVac M1 User Manual

Display units for 1 or 2 air gages
Hide thumbs Also See for M1:

Advertisement

Quick Links

Download this manual
M
1
/
M
1
/
D
i
s
p
l
a
y
D
i
s
p
l
a
y
M
3
M
3
u
n
i
t
s
f
o
r
u
n
i
t
s
f
o
User's manual
1
o
r
2
a
r
1
o
r
2
a
Firmware 3.3
i
r
g
a
g
e
s
i
r
g
a
g
e
s

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Metro DataVac M1

Summary of Contents for Metro DataVac M1

  • Page 1 User’s manual Firmware 3.3...

  • Page 2: Table Of Contents

    M1 – M3 AG TABLE OF CONTENTS TABLE OF CONTENTS __________________________________________ 2 FOREWORDS _________________________________________________ 4 INTRODUCTION _______________________________________________ 6 3.1. PRODUCT PRESENTATION ................ 6 3.2. VERSIONS ....................6 3.3. CHARACTERISTICS ..................7 3.3.1. MAIN TECHNICAL CHARACTERISTICS ..........7 3.3.2. DIMENSION AND INSTALLATION ............7 3.3.3.
  • Page 3 M1 – M3 AG 7.5. LOCK ......................59 7.6. MEASURE ....................61 MEASURING SCREEN _________________________________________ 62 8.1. LATERAL BUTTON FUNCTIONS ............... 62 8.2. CHOICE OF THE NEEDLE INDICATOR STYLE ......... 65 8.3. TEMPORARY DYNAMIC MODE ..............66 8.4. DISPLAY MODE WITHOUT TOLERANCE ..........67 USB COMMUNICATION _________________________________________ 68 10.

  • Page 4: Forewords

    M1 – M3 AG 17.5. THE AUTO-SWITCH DOES NOT WORK ..........116 17.6. THE M1/M3 SCREEN BLURS OR FREEZE WHEN I CONNECT THE COMMUNICATION CABLE ................116 17.7. I DO NOT ACHEIVE TO DETECT THE M-BUS MODULES ....116 17.8. I'VE LOST MY PASSWORD ..............116...
  • Page 5 M1 – M3 AG MARKETING OR ADEQUACY FOR A PARTICULAR USE; AND ALL THESE GUARANTEES ARE EXPRESSLY EXCLUDED AND CANCELLED. WARNING The information contained in this booklet can be changed without notice. The manufacturer makes no warranty whatsoever with respect to the warranties of commercial quality of this product or its suitability to a particular use.

  • Page 6: Introduction

    3.1. PRODUCT PRESENTATION The M1 and M3 display units allow making dimensional control using 1 or 2 air gages. Depending on the version it is possible to make simple measurement (with one air gage), or display 2 characteristics on the screen and can make static measurement or dynamic (Max, Min, Max-Min…)

  • Page 7: Characteristics

    M1 – M3 AG 3.3. CHARACTERISTICS 3.3.1. Main technical characteristics • TFT colour touch screen display 4,3’’, resolution 480x272. • Static or dynamic measurements (Max, Min, Max-Min, Average, Median) • Analogue or digital display • 1 or 2 measurement configurations (2 characteristics) •...
  • Page 8 M1 – M3 AG Remove the antiskid parts to attach it on the table or on a vertical panel It is also possible to panel mount the display, with the accessory ref ACS-AFF-001. Be careful not to use longer screw than M4*16.
  • Page 9 M1 – M3 AG...

  • Page 10: Contents Of The Packaging

    3.3.3. Contents of the packaging The M1/3 package includes : - 1 M1/3 display mounted on an orientable stand - 1 USB cable, (length =1.8m) for power supply and/or data transfer - 1 USB main adaptor for the display power supply. The M3 can also be powered by a computer when connected to it with the USB.
  • Page 11 M1 – M3 AG ACS-PNE-006 Soft polyurethane tubes 6*4mm: The M1 / M3 are fitted with 2 connectors for air tube with 6mm external diameter and 4mm internal diameter. We advise to use soft polyurethane tubes from SMC, because their flexibility...

  • Page 12: Options / Cables

    M1 – M3 AG 3.3.5. Options / cables Reference Description Picture 18020 Footswitch : This footswitch with a robust construction can be configured in different ways: preset, measurement transmission, start dynamic measurement etc... 18022 Handswitch This footswitch with a robust construction can be configured in different ways: preset, measurement transmission, start dynamic measurement etc...
  • Page 13 This cable allows to connect the compatible M-Bus modules on a M3 display unit. Length 1.5m 18060 RS232 cable to update the Firmware 45160 RS232 cable This cable allows to connect a M1//M3 display to a computer or a PLC.
  • Page 14 M1 – M3 AG 18193 This cable allows to connect a M1 /M3 display to a Multiplexer Mux from Metro, and to the DP1 printer from Mitutoyo 45173 RS232/USB cable converter: This cable allows a M1/M3 display to communicate with a computer. It creates a virtual COM port on the computer.
  • Page 15 M1 – M3 AG ACS-PNE- Air cut-off footswitch Allows to simply cut off the air supply, for stopping the air flow when the air gage is not used.

  • Page 16: Connectors

    3.3.7. Standard cabling – restrictor choice The M1 or M3 are delivered with 1 or 2 restrictors of 0.5mm on the air input + 1 or 2 0.7mm restrictors as spare parts. The value of the restrictor is indicated as below: 7 =0.7mm...
  • Page 17 If you order a turnkey solution at Metro, we will deliver the display with the adapted restrictor, or with an integrated restrictor (see chap 3.3.8). But if you want to use the M1 / M3 display together with your existing air gage, you will have to use the adapted restrictor by your own.

  • Page 18: Cabling With By-Pass Nozzle (Integrated Restrictor)

    M1 – M3 AG Example : 3.3.8. Cabling with by-pass nozzle (integrated restrictor) Some air gages are delivered with a by-pass nozzle (or integrated restrictor). It means that the restrictor is integrated inside the air gage itself, and there is no need to install it on the display.
  • Page 19 M1 – M3 AG The cabling schema is the following: Regulation unit Standard push-in ref ACS-PNE-003 (delivers Stopper ref CMP-PNE-018 connector, M5 thread. 3BAR/0.3MPa pressure) Generally, for tube external diam 3mm (ref CMP-PNE-014) Air gage with by-pass nozzle (integrated restrictor)

  • Page 20: The Rs232 Communication Port

    M1 – M3 AG 3.3.9. THE RS232 COMMUNICATION PORT The M3 is fitted with a RS232 port. It allows linking the M1/M3 to PC or an external system. The configuration is as following 9600 bauds, 8 bits, 1 stop bit, no parity CONNECTOR PINOUT It is fitted with a SUBD 9 pins female connector.

  • Page 21: The 24Vdc Connector

    M1 – M3 AG 3.3.11. The 24VDC connector It is advised to use this power supply when the M3 is panel mounted. Using this power supply instead of the mini-USB will deactivate the ON-OFF switch. Therefore, when the M3 is powered, it will start automatically.

  • Page 22: The Footswitch Connector

    M1 – M3 AG 3.3.13. The footswitch connector This connector is used to connect the Metro footswitch ref 18020. This is a JACK MONO 3.5mm (dry contact) The footswitch can then be used for several functions: please refer yourself to the...

  • Page 23: Air Preparation Unit - Air Pipes

    M1 – M3 AG 4. AIR PREPARATION UNIT – AIR PIPES 4.1. Air preparation unit Air gaging is a measurement of pressure variation. The variation of pressure must be due to the variation of distance between the gage and the part being measured. Therefore, it is mandatory to have a high stability air input, in order not to have variation of pressure due to air input variation.
  • Page 24 “eco” mode, depending on the instruction given by the module. The principle: Following a period without action (no pressure variation, no touch screen, etc.), the M1/M3 will send a command to the regulator which will switch to a much lower pressure (1 bar) to supply the air gage.

  • Page 25: Air Pipes

    4.2. Air pipes The M1/M3 are fitted with air connectors adapted to connected pipes with 6mm external diameter and 4mm internal diameter. In the case of the M3, it is however recommended to use an 8mm ext. tube from the output of the air preparation unit to a Y connection/reduction to 6mm to the display.
  • Page 26 M1 – M3 AG...

  • Page 27: Quick Start

    2 – Connect your air gage on the output « OUTPUT – AIR GAGE » 3 – Power the M1/M3 either with the mini USB or with the 24VDC terminal. 4 – Turn on the M1/M3 by pressing the ON-OFF switch.

  • Page 28: Graphical Interface

    M1 – M3 AG 6. GRAPHICAL INTERFACE The graphical interface of the M1/M3 has been designed to be easy to use and intuitive. This section gives you a preview of the different screens and commands available 6.1. 2 MAIN PARTS The graphical interface of your M3 is divided in 2 main parts: 1.

  • Page 29: Generalities

    M1 – M3 AG 6.2. GENERALITIES The following information can be seen of the upper part of the screen. Name of the active Static or Unit : mm, part reference an dynamic (Max, µm, or inch formula. Here Part 1 Min etc…)
  • Page 30 M1 – M3 AG In the same way it is also possible to input a manufacturer order either with an RS232 command, or by scanning a QR code : Manufacturing order USB logo appear when number entered with a USB stick or a QR...

  • Page 31: Configuration Windows

    M1 – M3 AG 6.3. CONFIGURATION WINDOWS Configuration windows opens after pressing on the icons of the configuration screen Example of configuration windows Data are typed by different ways and are saved after validating while quitting the window. Here after are the different ways to input data: •...

  • Page 32: Virtual Keyboard

    M1 – M3 AG 6.4. VIRTUAL KEYBOARD Erase Quit without taking into account the modification Quit and save the modification...

  • Page 33: Configuration Of The Device And The Measure

    M1 – M3 AG CONFIGURATION OF THE DEVICE AND THE MEASURE This section describes the different windows that are accessible from the icon desktop. If you are on the measuring screen, you can reach the icon desktop by pressing on button.

  • Page 34: Definition

    M1 – M3 AG 7.1. DEFINITION After pressing on this icon, the bellow window appears: It gives the possibility to define the resolution, unit, formula, tolerances, master dimension, of each of the 2 available measurement configurations. The sorting of parts into classes is also configurable from this window.

  • Page 35: Part 1

    M1 – M3 AG 7.1.1. Part 1 Static = direct reading or dynamic : Max, Min, Max- Min, Average or Median For measuring internal or external diameters. It defines the Choice of the calculation formula: indicators colour and gives • C(1) information to the user if the part •...
  • Page 36 M1 – M3 AG Resolution 0000.000 = micron 000.0000 = 0.1 micron 00.00000 = 0.01 micron Etc… Unit Distance mm = Millimeters in = Inches um = Microns Angles deg = decimal degrees (automatic choice when the formula is set as Taper)
  • Page 37 M1 – M3 AG When the “taper mode” is used, the choice of the unit is limited to deg (decimal degrees) or DMS (degrees, minutes, seconds) A new choice appears the distance between the 2 diameters must be written here.

  • Page 38: Part 2

    M1 – M3 AG Direction: Internal diameter The direction of measurement is used to measure internal or external diameters. The difference between these two modes is that according to the part, the part might still be rework. For example, the size of a bore in a part: if the bore is too big, there is no way to rework the part, so the indicator is RED.

  • Page 39: Part 3 - Class

    M1 – M3 AG 7.1.3. Part 3 - class This screen allows to set up a sorting of the part according to their size. Up to 16 classes can be programmed. Choice of the number of class Choice of the color...
  • Page 40 M1 – M3 AG Grey color because of the class parameters.

  • Page 41: Part 4 Control Limit

    M1 – M3 AG 7.1.4. Part 4 control limit This screen allows to display or not the control limits (warnings) and to define them. Control limits are warning that informs the user is the measure becomes too close to the tolerance limits. (Yellow colour on the bargraph) This part is hidden if «...

  • Page 42: Display

    M1 – M3 AG 7.2. DISPLAY After clicking on this button, the below window appears. This window allows to define if 1 or 2 measures are displayed on the screen and on which format. (Needle = galva, horizontal bargraph or value only)
  • Page 43 M1 – M3 AG Allows to display 2 probes on the measuring screen (except in GALVA mode) Allows to remove the value of the measurement on the measuring screen, only the bargraph appears. Displays small indicators (triangles) on the measuring...

  • Page 44: Setup

    M1 – M3 AG 7.3. SETUP After clicking on this button, the below window appears. From this window you can calibrate each channel. (the M1/M3 must be calibrated with 2 maters). Channel 1 and Possibility to channel 2 (only connect an M-Bus...

  • Page 45: Calibration Of The Air Gage

    M1 – M3 AG 7.3.1. Calibration of the air gage 7.3.1.1. Calibration in 2 points Must be calibrated The air gage probes cannot be used without a special calibration. This calibration requires at least 2 master sample of the size of the tolerance limit for the part to...
  • Page 46 M1 – M3 AG 7.98 8.02 Write here the 2 calibration values which will be used.
  • Page 47 M1 – M3 AG After placing the min master, push « calibration » The same manipulation is done here, but with the max master, and the final push on « calibration » The probe is now calibrated...

  • Page 48: Calibration In 3 Points

    M1 – M3 AG After calibration is it possible to check the pressure. For this you need to click on the unit “mm”, the unit will then become BAR for few seconds. This feature allows for example to check if the restrictor installed on the air input is the right one.

  • Page 49: Advanced Mode

    M1 – M3 AG 7.3.1.3. Advanced mode The advanced mode of the calibration menu allows to control the pressure and verify if the input pressure has not changed over a defined level since the calibration. In measuring mode, if the input pressure has changed over the limit, a popup windows appear informing the operator, and asking the recalibrate, or check the air network.

  • Page 50: M-Bus Modules

    M1 – M3 AG 7.3.2. M-Bus modules External M-Bus modules can be connected to the M1/M3 thanks to the following screen. It allows to mix 2 different probes on the same display with the multiplexer modules, or to use input/output modules.
  • Page 51 M1 – M3 AG After being connected, A Multiplexer module must be configured from the C1 or C2 pages of the setup menu (according to the channel with which the probe is linked). The main multiplexer modules are listed below :...
  • Page 52 M1 – M3 AG Input/output modules MB-IO MB-RO MB-RL The connection of an input/output module is made with the same way than a multiplexer. Up to 4 MB-IO can be connected. Example: connection of a MB-IO module on the M3.
  • Page 53 M1 – M3 AG Click here to configure the MB- The different options for the MB-IO configuration are explained in detail in chapter 14 optional M-Bus Modules Modules accessoires MB-TP In the chapter M-Bus (Chap 14) all the functionalities and applications of the MB-TP...

  • Page 54: Configuration

    Communication Description function Keyboard The M1/M3 is detected as a keyboard when connected to a computer with a USB connection, without installing any specific driver or software. Then, when you transfer the measurement (from the touch screen, MB-IO or the footswitch), the displayed value will appear on your PC where your cursor is positioned.
  • Page 55 M1 – M3 AG USB stick A “output.csv” file will be created on the connected USB stick, and each time you press the “Print” button of the measuring screen, a line will be added on the file. If you use a QR code reader to input a manufacturing order number, “OUTPUT.CSV”...

  • Page 56: General Settings)

    M1 – M3 AG 7.4.2. Page 2 (general settings) Ask a confirmation of preset when the preset is done from the measuring screen Defines the register format for the MODBUS RTU protocol. Float, or integer. 7.4.3. Page 3 (ECO mode) This page allows the configuration of an ECO mode, for the screen (screen saver mode) and to reduce the air flow with the MB-RO module.
  • Page 57 M1 – M3 AG Setting of the screen saver mode Delay to start the screen saver mode the time spent on standby is displayed on the screen Select the color of the screen saver Getting out from the screen saver mode is possible by touching the screen or moving probes.

  • Page 58: Calibration Renewal Period)

    M1 – M3 AG Thus the MB-RO modules “control” the air pressure of the preparation either in standard mode (measurement) or economy (no measurement, or action). And the indication of a wake-up threshold switches the air flow to standard mode, when for example the operator places a part back on the gage.

  • Page 59: Lock

    M1 – M3 AG 7.5. LOCK After clicking on this button, the below window appears. This screen allows to lock by password some functions of the M3 If « locked », a password will be asked to access to the icon desktop Modification of the password.
  • Page 60 M1 – M3 AG Allows to remove the corresponding buttons from the Allows to lock the measuring measuring screen. mode (maxi, mini, maxi-mini, average...)

  • Page 61: Measure

    M1 – M3 AG 7.6. MEASURE After clicking on this button, the measuring screen appears. Please read the chapter 8 for the presentation of the measuring screen.

  • Page 62: Measuring Screen

    M1 – M3 AG MEASURING SCREEN The M1/M3 starts on this screen. The measuring screen allows seeing the characteristics of the part that has to be controlled. A needle/bargraph indicator allows seeing the characteristic in function of the tolerance of the part (see chap. 7.1 for tolerances modification).
  • Page 63 M1 – M3 AG Zero : This button is used to set the current measured value to 0, it’s the relative mode Clear : This button allows to cancel the zero button, and to switch again to absolute mode Preset :...
  • Page 64 M1 – M3 AG Print ; The print function allows to transfer the measured value to a computer. Part : This function is used to change the displayed part...

  • Page 65: Choice Of The Needle Indicator Style

    M1 – M3 AG 8.2. CHOICE OF THE NEEDLE INDICATOR STYLE If the M1/M3 is configured with the needle indicator (mode Galva, see chap. 7.2), it is possible to change manually the type of scale. Automatic Manual The automatic needle scale adapts automatically with the part tolerances.

  • Page 66: Temporary Dynamic Mode

    M1 – M3 AG 8.3. Temporary dynamic mode As explained on the chapter 7.1, the characteristic is defined either as « static » (direct) or « dynamic » (Max, Min …) If a characteristic has been adjusted as static, it is nevertheless possible to change temporarily to a dynamic mode, directly from the measuring screen.

  • Page 67: Display Mode Without Tolerance

    M1 – M3 AG 8.4. Display mode without tolerance This mode allows to display only the numerical value, without tolerance indication. It is also possible to change the preset value (calibration) directly from this screen. Press on the value as shown on the below picture, an input the new value with the keyboard.

  • Page 68: Usb Communication

    M1 – M3 AG 9. USB COMMUNICATION The communication with an USB cable is made by selectioning « KeyBoard » communuication type. The M3 will communicate with the computer as would a key board do If you select the “Keyboard/USB” communication, the M3 will be detected has a keyboard when connected to a computer, without installing a specific driver or software.
  • Page 69 M1 – M3 AG A problem appears sometimes while the data is transferring with a USB cable. The M3 display acts like a keyboard, so, in order to write numbers, the “num lock” key must be activated. If your keyboard doesn’t have the “num lock” key, you can still find it by writing “visual keyboard”...

  • Page 70: Rs232 Communication

    M1 – M3 AG 10. RS232 COMMUNICATION The M1/M3 can communicate with an ASCII protocol allowing to master and configure all the functions. For connecting the M3 to a PC or a PLC, you must use a cable Metro ref 45160, sold separately.

  • Page 71: Command List

    M1 – M3 AG 10.2. Command list 10.2.1. General Informations Opening screen Rubric Read. command Write command Comment Software version VER? ie : V3.30 Device serial number ie : M32214522 Device reference ie : 13040 10.2.2. Window PART Window « Part »...
  • Page 72 M1 – M3 AG x=1 (internal) x=2 (external) Upper tolerance nUT? nUT=seee.ddddd nUTD? nUTD=sdddDmmMssS DMS display Nominal nNM? nNM=seee.ddddd nNMD? nNMD=sdddDmmMssS Lower tolerance nLT? nLT=seee.ddddd nLTD? nLTD=sdddDmmMssS Master nMT? nMT=seee.ddddd Standard case nM1? nM1=seee.ddddd In case of dual master (for taper) nM2? nM2=seee.ddddd...

  • Page 73: Window Display

    M1 – M3 AG 10.2.3. Window DISPLAY Window "display" Rubric Read. command Write command Comment Locks characteristics display update while CFG_ENTER characteristics display settings are changed Unlocks characteristics display update after CFG-LEAVE characteristics display settings are changed Auto switch AUTO?

  • Page 74: Window Configuration

    M1 – M3 AG Sets the gain of channel n if the 1 master calibration is active and the AGI command has been issued to unlock AGGn=x.xxxx the gain modification protection. Returns the programmed value or “LOCKED” if locked or “NOT SETABLE3 if 2/3 points Locks gains modification protection: “LOCK”...

  • Page 75: Window "Lock

    M1 – M3 AG x=4 (start dynamic measurement) x=5 (stop) x=6 (screen shot) x=7 (IO output) x=8 (no function) Footswitch 0= released status FOOTV? 1= triggered 10.2.6. Window « Lock » Window "Lock" Rubric Read. command Write command Comment Protection...
  • Page 76 M1 – M3 AG switch the characteristic 2 to absolute, ABS 2 returns ABS 2 DONE ABS ALL switch the characteristic 1 & 2 to absolute, returns « ABS n DONE » Clear Start dynamic measurement Preset PRESET Calibration Calibration char. 1, returns PRESET 1...

  • Page 77: Summary Table Of Function Additions According To Software/Hardware Version

    M1 – M3 AG 10.3. Summary table of function additions according to software/hardware version Software Screen or Added functions version function concerned 3.30 Set up\MB- Module state active IO or MB-RO ECO mode Pilot of an output with the footswitch...
  • Page 78 M1 – M3 AG 3.15 11040 Setup Formula half taper 13040 3.10 Measure Numerical value replaced by "-----" if obsolete preset configuration 3.04 Definition Limite control self-configurable (menu definition/limCtrl) 3.01 Measure Management of DMS (degree minute second) for the HW2+...

  • Page 79: Data Export On Usb Keys

    M1 – M3 AG 11. DATA EXPORT ON USB KEYS The M1 and M3 offer various possibilities for data export. From the software version 2.1 new functionalities have been added offering the possibility to export with advanced functions to USB keys or network.

  • Page 80: Advanced Mode

    M1 – M3 AG 11.2. Advanced mode : It is possible to connect a QR code reader (METRO ref ACS-AFF-003), and to input a manufacturing order number on the display. After scanning the QR code corresponding to the manufacturing order number, the number will appear on the top bar of the measuring screen, and the output csv file will get the name of the scanned name.

  • Page 81: Configuration Of The Unit With Qr Codes

    M1 – M3 AG 12. CONFIGURATION OF THE UNIT WITH QR CODES The M1/M3 displays offers the possibility to be configured by a simple scan of QR code. You should use the QR Code reader Metro reference ACS-AFF-003. This will simplify the configuration and reduce risks of errors. It takes less than 2 seconds to configure the display with a QR code scan.

  • Page 82: Advanced Configuration

    M1 – M3 AG 12.2. Advanced configuration The previous chapter shows how to configure the calibration. It is possible to go further and configure the whole device. The goal of the configuration by QR code is generally to save time and limit configuration errors when the air gage is changed often on the display.
  • Page 83 M1 – M3 AG Instructions Corresponding QR Code RST; // Reset all the previous parameters. CFG_ENTER; // Locks characteristics display update while characteristics setting 1RES=4; // Change the resolution to display 4 digit (0.1µm) 1REF=PAIRING; // Change the characteristic name to PAIRING 1UT=+0000.0402;...

  • Page 84: Modbus Rtu Protocol

    M1 – M3 AG 13. MODBUS RTU Protocol This protocol allows to connect the M3 to a compatible PLC. A maximum of 256 register can be read. Example of a RTU Modbus communication with an automate Pro-Face. This example can be download from our website www.metro-fr.com...
  • Page 85 M1 – M3 AG Stop Active M3 1 = measure screen 0 = menus Register by characteristic: from 100 to 188 for the characteristic 1 and from 200 to 288 for the characteristic 2 Formula (R/W) 0 = C1 1 = C2...
  • Page 86 M1 – M3 AG Mini class 1 Mini class 2 Mini class 3 Mini class 4 Mini class 5 Mini class 6 Mini class 7 Mini class 8 Mini class 9 Mini class 10 Mini class 11 Mini class 12...

  • Page 87: Optionnal M-Bus Module

    M1 – M3 AG 14. OPTIONNAL M-BUS MODULE 14.1. MB-IO module As an option, it is possible to connect up to 4 M-Bus modules with 8 inputs/output isolated by opto-coupler. (ref MB-IO) The 8 outputs are similar to the « open collector PNP » type. They can be used with an external power supply 12 to 30 VDC maximum.
  • Page 88 Input M-Bus module here Press on this button when the M1/M3 is on the « configuration » window After adding the MB-IO module according to the process described in chapter 7.3.2, the configuration of the channels is done by clicking on the MB-IO tab...
  • Page 89 M1 – M3 AG The number of the MB-IO is written here and can be changed if more than one is connected These buttons are used to The function of each port of output a 24VDC signal on the MB-IO can be set with this specific port of the MB-IO 2 menus.
  • Page 90 M1 – M3 AG List of available functions : Function Description Transfer Input Print, transfer the measured value Preset Input Set the display value to the master value Zero Input Set the display value to 0 Clear Input Reset the dynamical measure...
  • Page 91 M1 – M3 AG Connection example between a M3 and a PLC + 24V + 24V + 24 V of the PLC Output PLC Output 0V of the PLC IO module + 24V + 24V + 24 V from te PLC...

  • Page 92: Module Mb-Ro (Relay Output)

    M1 – M3 AG 14.2. Module MB-RO (relay Output) The MB-RO module works like the MB-IO, but with only 1 relay output. (The MB-IO output are managed via optocouplers) It must be powered by the 24VDC. The adapted power supply is delivered together.
  • Page 93 M1 – M3 AG ACS-PNE-004 pour tampons pneumatique avec fonction d’économie d’air. After identifying a MB-RO module, 2 actions are possible: A- Test the output by touching the button (the button turns green when the output is activated) B – Assign a function from the menu “Function”. If no function is attributed, you can use the MB-RO directly on a sequence thanks to the instructions “activate /...
  • Page 94 M1 – M3 AG large) + No go Indicate if the characteristic is under the upper tolerance limit -No go Indicates if the characteristic is above the lower tolerance limit Indicate if the part is within the tolerances (so if the 2...

  • Page 95: Module Mb-Rc (4 Buttons Command)

    M1 – M3 AG 14.3. Module MB-RC (4 buttons command) The MB-RC module is a box with 4 programmable buttons and is useful when a single footswitch is not enough. You can connect it to the output of a module.

  • Page 96: Mb-Rl Module

    M1 – M3 AG 14.4. MB-RL module Please refer to the chapter 7.3 (Setup) to connect a M-Bus module The MB-RL module has been designed for retrofitting old Monocote displays equipped with the optional relay board. The external M-bus module has the same pinout (SUBD-15) than the relay board of the...
  • Page 97 M1 – M3 AG The MB-RL has two independent and isolated relays indicating the position of the displayed measurement by comparison with the tolerances. Each relay provides a contact that is normally open in case the measurement is within the tolerances (MINNO and MAXNO) and a contact that is normally closed (MINNC and MAXNC).
  • Page 98 M1 – M3 AG SUB D connector (15 pins) : pin assignment Borne Signal Sens Description +5 V output Power supply to activate the inputs connected MINNC Mini tolerance relay contact 1A 48V MINCOM Common of mini tolerance contacts MINNO...
  • Page 99 M1 – M3 AG The following screen appears on the M3 when a MB-RL is connected. There is a function for each of the 8 ports, and these functions can’t be changed. Input: start a dynamic measure Input: freeze the...

  • Page 100: Mb- Tp Module - For Temperature Compensation

    M1 – M3 AG 14.5. MB- TP Module – for temperature compensation The MB-TP module allows to use an isolated thermocouple type K (hot junction) or PT100 sensor. 2 functions are then available: alarm or compensation. 14.5.1. Identification and configuration of the Temperature module MB-TP...
  • Page 101 M1 – M3 AG As a standard, the temperature mode is deactivated. You can now choose between: a – Alarm mode When selecting the Alarm mode, it is required to define the temperature variation acceptability, with a MIN and a MAX, in the chosen unit.
  • Page 102 M1 – M3 AG After validation with the OK button, the Preset button becomes red until you make the preset : The PRESET button becomes black again after preseting. The new reference temperature has now been moved to the actual temperature.
  • Page 103 M1 – M3 AG If it is not the case, select the option “advanced” and a next page appear, allowing to enter the temperature of the master during the measurement according to its certificate: Temperature indicated on the certificate Reference temperature When the configuration has been done, you can go to the measuring screen.

  • Page 104: Principle Of Compensation In Measurement Mode - Use Cases

    M1 – M3 AG 14.5.3. Principle of compensation in measurement mode – use cases The temperature compensation ables to compensate the temperature’ expansion of a part and to estimate what its size will be after cooling. In the following example, we will consider the measurement of a 50mm mild steel ring.
  • Page 105 M1 – M3 AG The channel 1 indicate the compensated characteristic. Our part is made of mild steel, we enter the coefficient of expansion 12.0 Then we tick the advanced mode to enter the reference temperature of the master, given by the certificate,...

  • Page 106: Use Cases

    M1 – M3 AG Specific setting of the page 1 for our use cases We specify the formula to be entered for each characteristic. In our example, we compare the normal characteristic and the compensated characteristic of the channel A.
  • Page 107 M1 – M3 AG Both characteristics display 50.000 mm at 20°C, this is the expected result. We heat the part at 50°C. We expect an expansion of 18µm (50 * 12E-6 * (50-20) = 18 µm) The « compensated characteristic », stayed at 50.000mm thanks to the compensation.
  • Page 108 M1 – M3 AG Use case n°2 : calibration at 50°C, measure of a part at 50°c, verification at 20°C In this case, we specify the master of the “normal characteristic” at 50.018mm The compensated characteristic keeps the master at 50.000mm We heat the master at 50°C, and we calibrate at 50°C...

  • Page 109: Factory Reset

    M1 – M3 AG 15. FACTORY RESET 15.1. Factory setting restauration This function allows to come back to the factory setting. Warning: At the end of this procedure, all the parameters of your M3 will be reset (tolerances, masters, formulas…) To Reset the M3 to its factory settings, please follow the process bellow.

  • Page 110: Calibration And Calibration Gain Input

    M1 – M3 AG 15.2. Calibration and calibration gain input When the factory screen appears, tap the Metro logo By using the Calibration/Gain icon you can choose the default calibration mode of the Air Gage channels. Either a calibration with 2 or 3 masters, either a direct entry of the...
  • Page 111 M1 – M3 AG The green square indicates the selected mode: either 2 or 3 points calibration; or calibration based on a single calibration value and a gain coefficient. Thus in the menu SETUP->Channel A and/or B, the gain field must be entered.

  • Page 112: Firmware Update

    M1 – M3 AG 16. FIRMWARE UPDATE It is possible to update the M3 firmware For this you need a RS232 cable ref 18060. It is possible to use a RS232/USB convertor if your computer is not equipped with a serial port.
  • Page 113 M1 – M3 AG Select product display -Fill in the Serial Port from the drop-down list. -Select Refresh if the desired port does not appear on the list -Go get the update file -Click on Browse The selected file is ready to be send.
  • Page 114 M1 – M3 AG 4 – It takes nearly 5 min depending on the Baud rate selected. During the update, the screen becomes blurred. A pop up box appears when the firmware is installed, validate with OK 5- The M3 restart automatically.

  • Page 115: Trouble Shooting

    If the cycle time is important, we have solutions to accelerate. - The length of tubes between the air gage and the M1/M3 AG module is very important and has an impact on the stabilization time. The longer the pipe, the longer it will take for the measurement to stabilize.
  • Page 116 If a 18060 cable is connected to the M1/M3, the screen might blur. 17.7. I do not acheive to detect the M-BUS modules An MBUS cable (81213-1.5 supplied with the M1/M3) must be used to connect the modules to the M1/M3.
