Metro DataVac M1 User Manual page 37

M1 – M3 AG

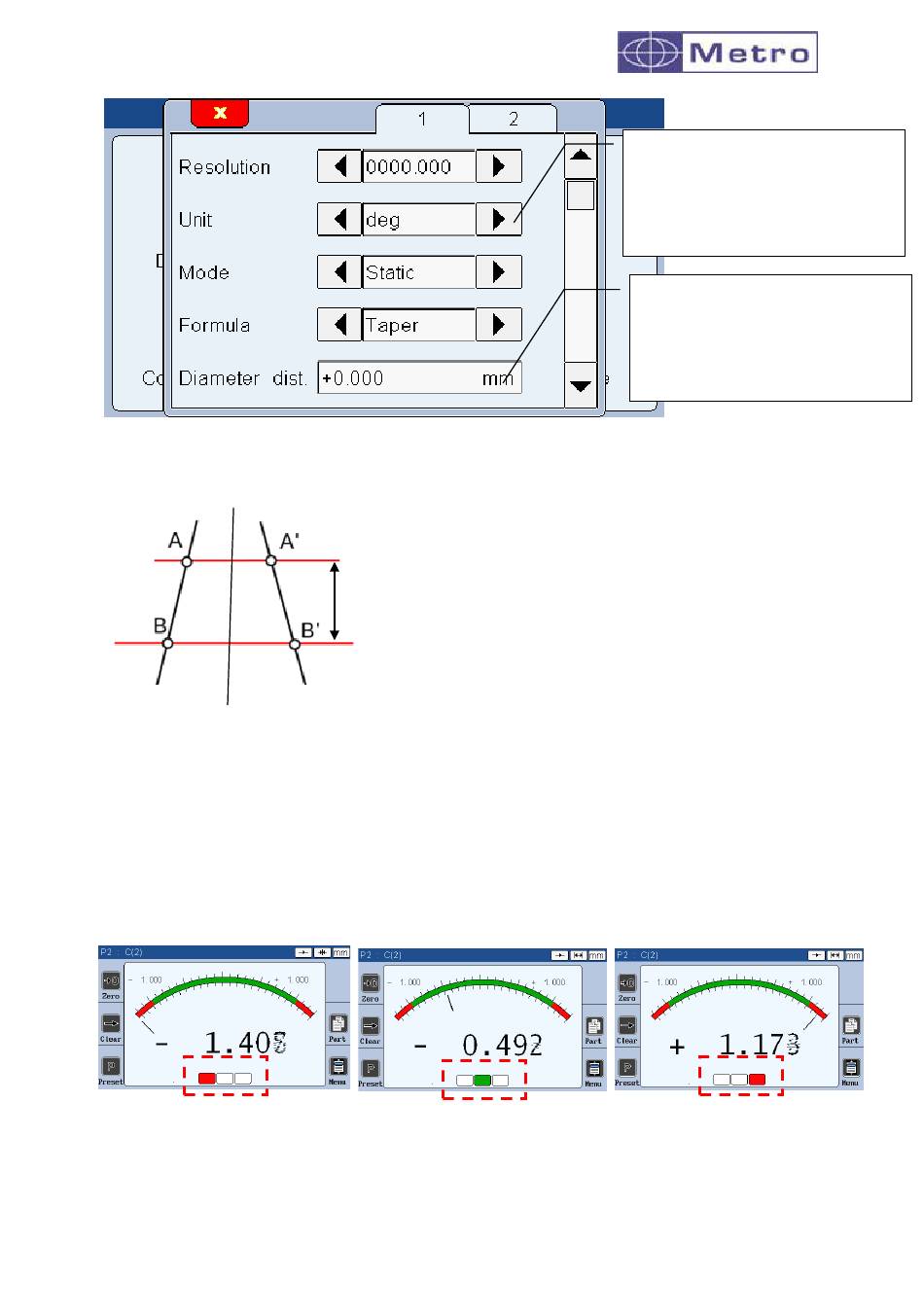

The half taper formula, will give the value of half an angle of a taper
Direction
Direction: none
With this direction of measurement, any measure outside of the tolerance limits will
appears in red. All the good measure will be in green.
When the "taper mode" is
used, the choice of the unit is
limited to deg (decimal
degrees) or DMS (degrees,
minutes, seconds)
A new choice appears the
distance between the 2
diameters must be written
here.
37
