M1 – M3 AG

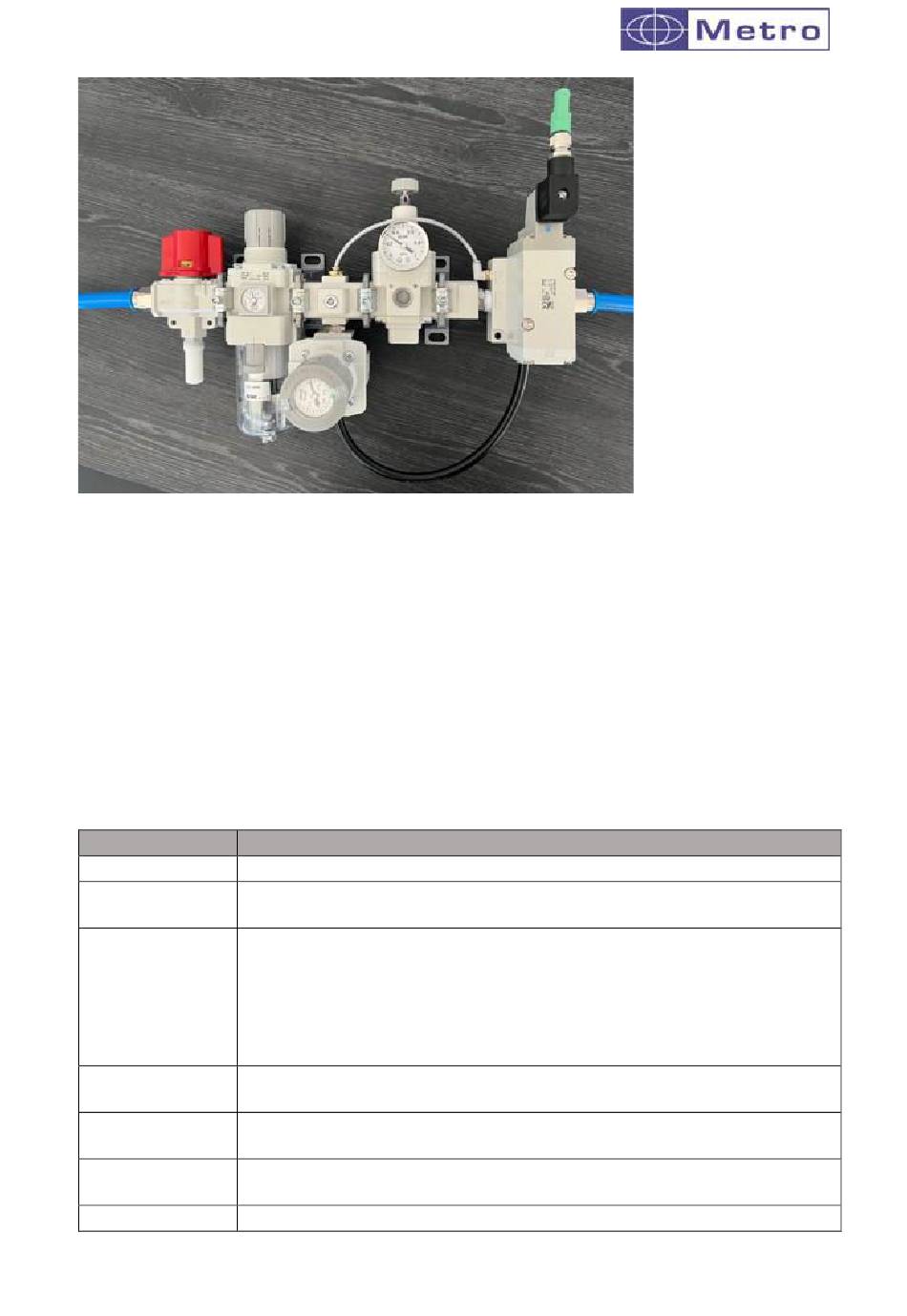

ACS-PNE-004 pour tampons pneumatique avec fonction d'économie d'air.
After identifying a MB-RO module, 2 actions are possible:
A- Test the output by touching the button (the button turns green when the
output is activated)
B – Assign a function from the menu "Function". If no function is attributed, you
can use the MB-RO directly on a sequence thanks to the instructions "activate /
deactivate output" (see the corresponding chapter about the sequences mode)
Depending on the function chosen, additional parameters can be required on the
window.
Function Description
None No function is assigned
Control of the automatic pressure reduction, requires a regulator
Eco Mode ref ACS-PNE-004 and cable 45186
Trigger the active or inactive status of the module depending on
the state of the footswitch (pushed/released)
OR Trigger the active or inactive status of the module according to
Footswitch
the impulse given by the footswitch (toggled pushed/toggle
released). It is then possible, for example, to control the regulators
via a footswitch
Indicate if the measurement screen is displayed, in this case the
Activ
measurements and the associated states are valid
Characteristic
Indicate if the characteristic is within the tolerances
status
Indicate if the characteristic is under the lower control limit (too
Ctrl limit -
small)
Ctrl limit +
Indicate if the characteristic is above the upper control limit (too
