6. DATA COMMUNICATION
6.1.2

Connecting up

Installation

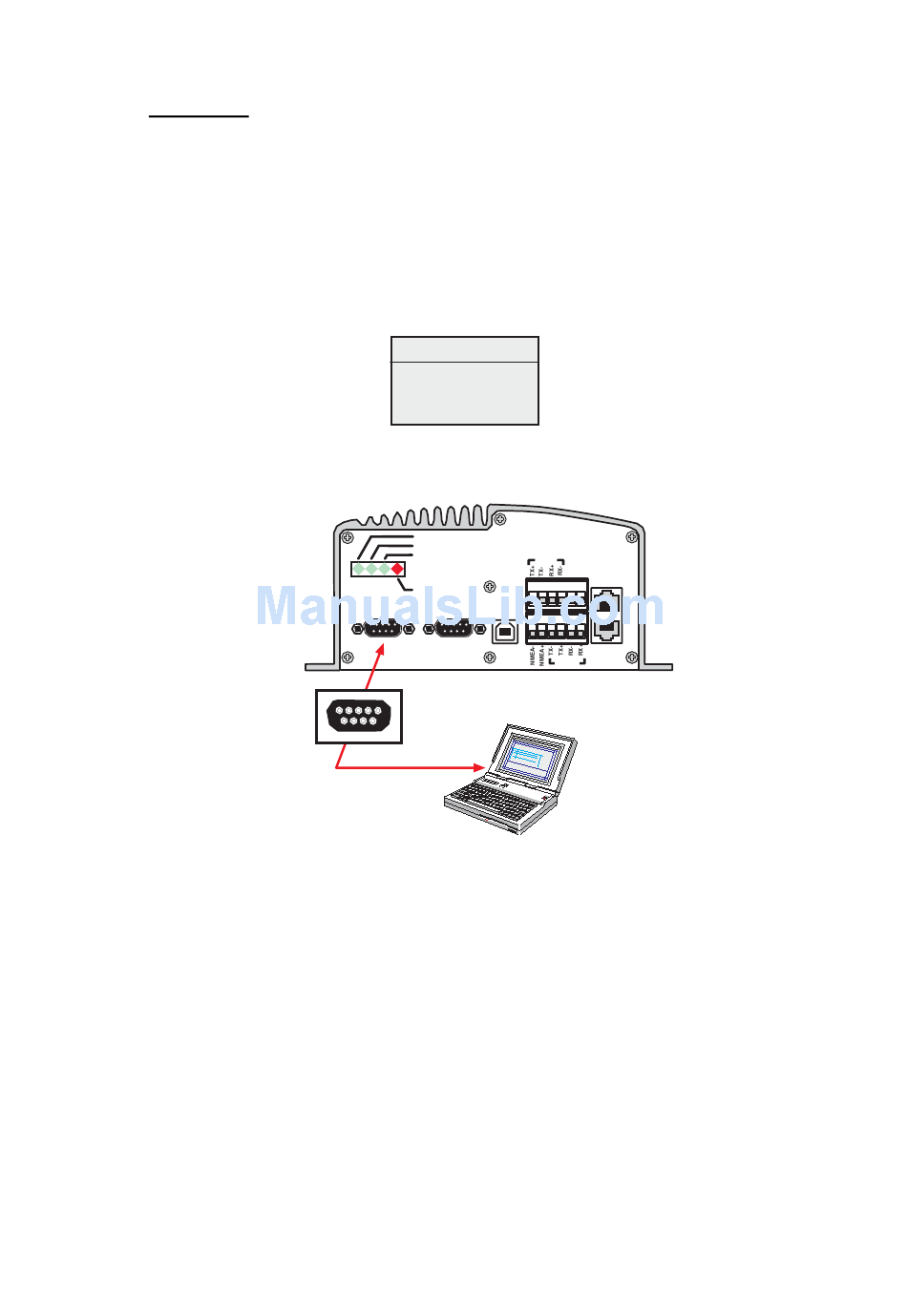

Connect the RS-232 serial cable between the serial port on the PC and the
RS-232 port on the CU.
The default settings are:
Data speed:
Format:
Flow control:
6-2
115200 bps
8 data bits, no parity, 1 stop bit
Hardware (RTS/CTS)
Modem Drivers
Win 2000/XP:
- Std 33.600 bps
FELCOM 30
ON
48 VDC
SYNC
ALARM
RS-232 A RS-232 B
5 4 3 2 1 5 4 3 2 1
9 8 7 6 9 8 7 6
4 3 2 1
5
9 8 7 6
PC serial port
DTE
ISDN
ISDN
USB
ISDN
RS-422
