9. SYSTEM DESCRIPTION
Communication services
FELCOM 30 provides the following interfaces & services:
ISDN:
- 4.8 kbps speech
- 9.6 kbps fax via Terminal Adapter
RS-232/RS422:
- 9.6 kbps data service
- MPDS
USB
- 9.6 kbps data service
- MPDS
Requires PC with MS Windows 2000/XP.
The FELCOM 30 CU has following ports (see figure):
ISDN ports for connection of ISDN telephones, or Terminal Adapter; a total of
8 devices.
RS-232/RS422 and USB ports for connection of data equipment.
Internal communication
Equipment connected to the various interfaces may communicate with each
other via an internal MSN (Mobile Subscriber Number) assigned to each unit.
Control interface
The RS-232 or USB port allows connection of a PC for configuration of FELCOM 30.
A PC program (vtLite Mobile) that provides the software to operate and configure
FELCOM 30 terminal is supplied on the enclosed CD.
Serial printer
PC
9-4
CU-Communication Unit
ON
48 VDC
SYNC
ALARM
RS-232 A RS-232 B
USB
5 4 3 2 1
5 4 3 2 1
9 8 7 6
9 8 7 6
ISDN wall
sockets
ISDN Handset
PC

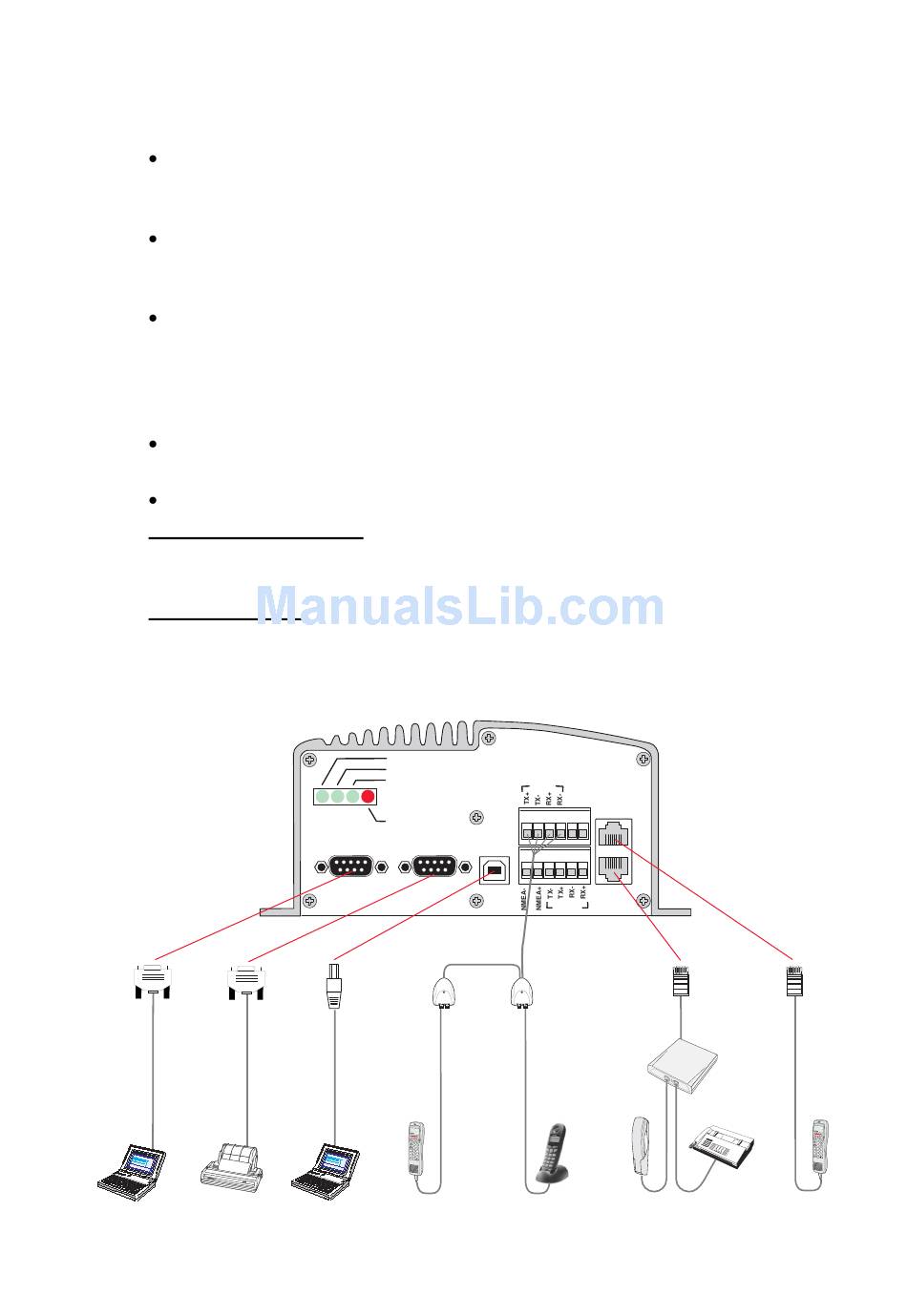

FELCOM 30 ports.
ISDN
ISDN
ISDN
RS-422
Terminal
Adapter
Analogue
DECT phone
telephone
Analogue
ISDN Handset
telefax (G3)
