2. OPERATION FROM HANDSET
2.2

Switching ON

The ON/OFF switch located on the rear panel of the Communication Unit
switches all basic units of the FELCOM 30 terminal on/off:
the ISDN Handset
the Communication Unit (CU), and
the Antenna Unit.
See figure below for location of the power ON/OFF switch and indicator.
Note: Wait about 10 seconds to turn on the power after turning it off.
2-2
SIM card
Cover
SIM CARD
SIM CARD INSIDE
WHEN CHANGING MODEM UNIT
REMOVE COVER
AND TAKE OUT SIM CARD
C o
m
m
u n
i c a
t i o
n
Power
indicator
LED's
(G: Green, R: Red)
G G G R
Alarm: indicates that an alarm occurs.
SYNC: indicates that the unit is synchronized with a satellite.
48 VDC: indicates that 48 VDC is supplied to the antenna.
ON: indicates that the power is turned on.

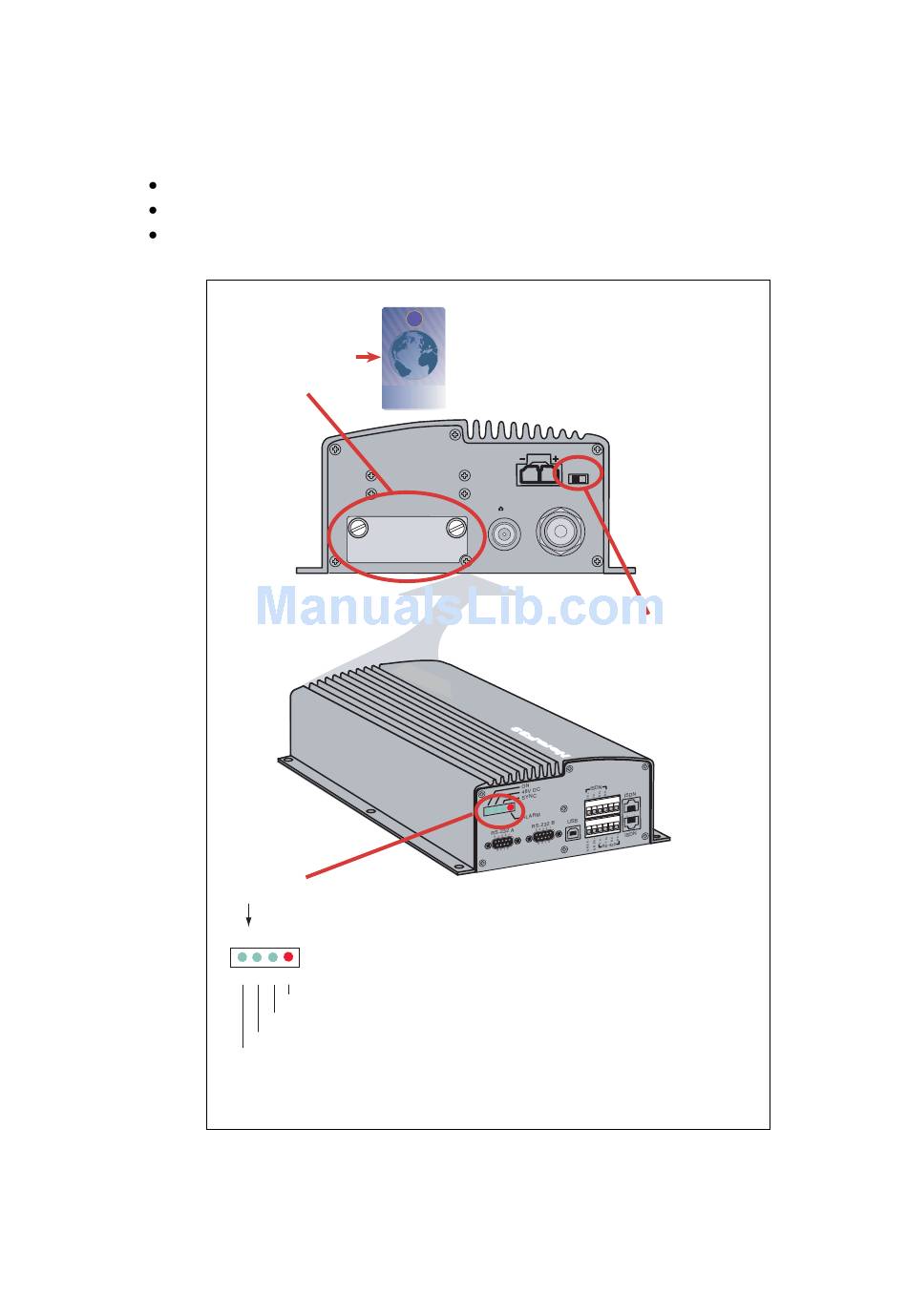

Location of SIM card and ON/OFF switch
Insert SIM card, contact upside down.
ON/OFF
11-32 VDC / 110W
NOT IN USE RF
(50 TERM)
U n
i t
Power
ON/OFF
switch
