Furuno Felcom 30 Operator's Manual page 38

4. OPERATION FROM PC
Procedure:
1 Insert the CD and open it from the "My Computer" icon.
2 Install the "vtLite Mobile" to the PC hard drive.
a. Open the "vtLite 6.2" folder.
b. Double-click the "setup.exe" icon and follow the instruction displayed.
c. Double-click the "furuno.bat" icon.
3 Connect the serial cable between the PC serial port and one of the RS-232
ports on the FELCOM 30 Communication Unit. See previous page.
4 Switch ON the Communication Unit.

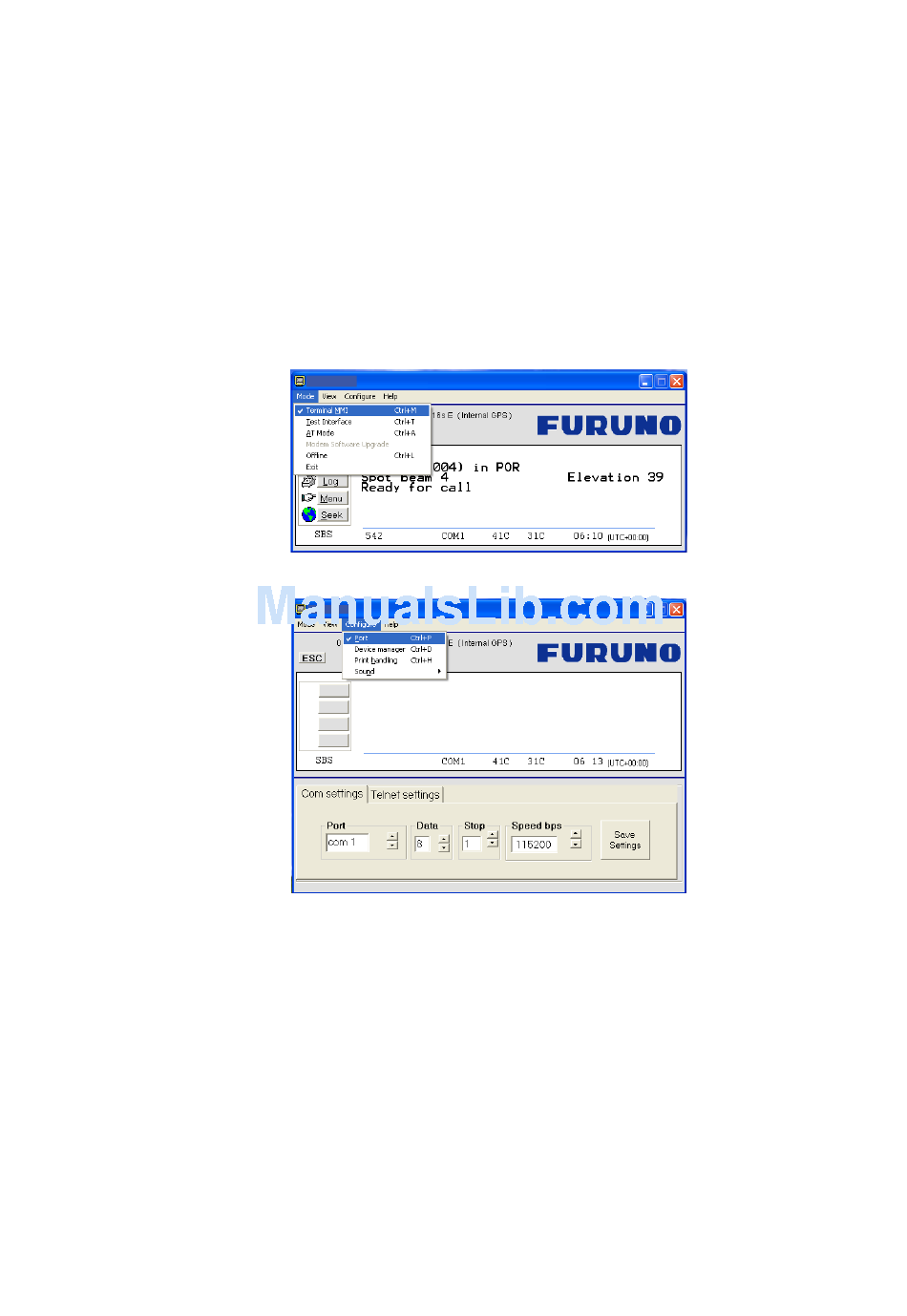

5 Start the vtLite Mobile program by clicking Start>Programs>vtLite Mobile.
If no contact, click Mode>Terminal MMI.
6 Click Configure>Port to check the port settings.
4-2
