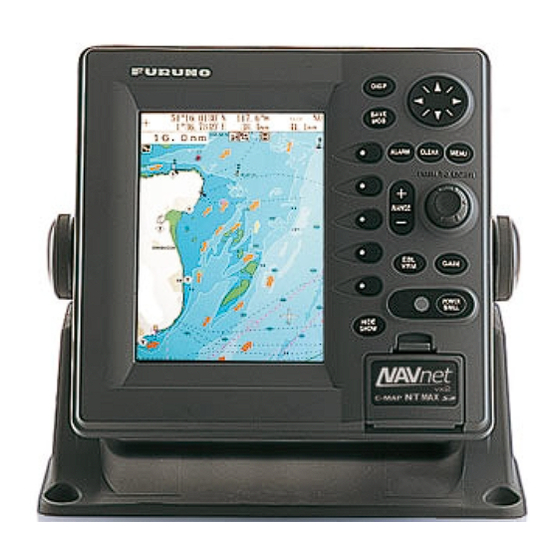

Furuno NAVnet VX2 Installation Manual

Color video plotter
Hide thumbs Also See for NAVnet VX2:
Table of Contents

Advertisement

Quick Links

Download this manual
Back
MODEL 1724C MARINE RADAR
MODEL 1734C MARINE RADAR
GD-1720C COLOR VIDEO PLOTTER
VX2
P R I N T E D  I N  J A P A N

Advertisement

Table of Contents
loading

Related Manuals for Furuno NAVnet VX2

Summary of Contents for Furuno NAVnet VX2

  • Page 1 Back MODEL 1724C MARINE RADAR MODEL 1734C MARINE RADAR GD-1720C COLOR VIDEO PLOTTER P R I N T E D  I N  J A P A N...
  • Page 2 The paper used in this manual is elemental chlorine free. FURUNO Authorized Distributor/Dealer FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, 9-52 Ashihara-cho, Nishinomiya 662-8580, JAPAN Nishinomiya 662-8580, JAPAN Telephone : Telephone : 0798-65-2111 0798-65-2111 0798-65-4200 0798-65-4200 FIRST EDITION : FIRST EDITION : APR.
  • Page 3 This is possible - Ask Serious injury or death can result if some- your FURUNO representative or dealer to one falls from the radar mast. provide this feature. Turn off the power at the mains switch- board before beginning the installation.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS EQUIPMENT LISTS .......................iii SYSTEM CONFIGURATIONS..................v 1. MOUNTING.......................1 1.1 Installation of Display Unit........................1 1.2 Mounting of Antenna Units........................4 2. WIRING ........................16 2.1 Standard Wiring ........................... 16 2.2 External Buzzer (OP03-136, option) Connection ................19 2.3 How to Connect with a PC ........................20 3.SETTING UP THE EQUIPMENT................21 3.1 Setting up with the Installation Wizard ....................

  • Page 5: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Code No. Remarks Display unit RDP-148 Antenna unit RSB-110-070-A For MODEL1724C RSB-0071-058 For MODEL 1734C Remote Remote controller, vinyl case, RMC-100 000-089-885 controller set battery, labels CP03-22200 000-089-887 For display unit For MODEL 1724C antenna unit, CP03-22100 000-089-848 5 m signal cable S03-87-5...
  • Page 6 Optional supply Name Type Code No. Remarks 000-013-484 For 100 VAC 000-013-485 For 110 VAC Rectifier PR-62 000-013-486 For 220 VAC 000-013-487 For 230 VAC External OP03-136 000-086-443 buzzer MJ-A6SPF0014-010C 000-154-027-10 For NavNet, 1 m MJ-A6SPF0014-050C 000-154-049-10 For NavNet, 5 m MJ-A6SPF0014-100C 000-154-050-10 For NavNet, 10 m...

  • Page 7: System Configurations

    SYSTEM CONFIGURATIONS All NavNet products incorporate a “network circuit board” to integrate each NavNet product on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is assigned an IP address to enable transfer of images between other NavNet products. For example, video plotter pictures can be transferred to a radar and vice versa.
  • Page 8 GPS receiver GP-310B/320B External buzzer Remote Controller RMC-100 Echo sounder Navigator AIS Interface AIS transponder IF-1500AIS* Echo sounder * Not required for Navigator AIS Transponder FA-150. Display unit RDP-148 Rectifier PR-62 Network Sounder ETR-6/10N 12 - 24 VDC Other NavNet Unit 100/110/115/220/230 VAC ETR-30N (Model 1724C, etc.)
  • Page 9 GP-310B/320B Antenna Unit Radar data Plotter data Sounder data Note: The picture disappears 10 seconds after the NavNet cable is disconnected from a "sub" NavNet display unit. Network Sounder Network Sounder ETR-6/10N ETR-6/10N ETR-30N ETR-30N (option) (option) Figure 2 (a) NavNet2 system, three-unit connection GP-310B/320B Antenna Unit Radar data...
  • Page 10 This page is intentionally left blank. viii...

  • Page 11: Mounting

    1. MOUNTING 1.1 Installation of Display Unit The display unit can be installed on a tabletop, on the overhead or flush mounted in a console or panel. Overhead Tabletop Hard Cover Tabletop, overhead mounting method When selecting a mounting location for the display unit keep the following in mind: •...
  • Page 12 1.1.1 Mounting procedure Tabletop, overhead mounting Follow the procedure below to mount the display unit on a tabletop or the overhead. 1. Fix the hanger by four tapping screw. 2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts. 3.
  • Page 13 Flush mounting Note: Use supplied pan head screws when the thickness of the bulkhead is from 11 to 14 mm. For bulkhead which exceeds 14 mm in thickness the length of the pan head screws should be bulkhead thickness (A) plus 7.3±1.5 mm. Also the length of B should be max.

  • Page 14: Mounting Of Antenna Units

    1.2 Mounting of Antenna Units 1.2.1 Mounting considerations When selecting a mounting location for the antenna unit keep in mind the following points. • Install the antenna unit on the hardtop, radar arch or on a mast on an appropriate platform.
  • Page 15 1.2.2 Mounting antenna unit of MODEL 1724C 1. Remove mounting hardware at the bottom of the antenna unit; four each of hex bolts (M10X20), spring washers and flat washers. Save the spring washers and flat washers to use them to fix the radome base to the platform, at step 3. If the thickness of the mounting platform is 5 mm or less also save the bolts.
  • Page 16 4. Unfasten four screws to remove the cover. Discard the packing material in the radome. Snap holder Remove and discard the packing material. Antenna unit, inside view The mounting base is fitted with a snap holder, which may be used to hang the cover after removal.
  • Page 17 5. Unfasten the cable of the rotation detector from the cable clamps. 6. Unfasten 11 screws to dismount the shield plate. Discard screw marked with in the figure shown below. Cable clamp Shield plate Rotation detector Caution Antenna unit, inside view Caution: Be careful not to pinch the rotation detector cable when remounting the shield plate.
  • Page 18 Rubber gasket Gasket Cable Gland Sectional view Rubber gasket Mounting base Antenna unit, inside view 8. Referring to the figure shown below, fasten the shield cable with screw (M4x10) on the chassis to ground the unit. Connect shield cable Connect 10 pin here.
  • Page 19 9. Attach EMI core (supplied) to antenna cable between cable ties. Set the fixing band to the EMI core. Fixing band This bend should be facing cable entry. Fixing band 10. Referring to the figure of "How to connect the antenna cable to the antenna Unit" on the previous page connect the 9-pin (J801) and 10-pin (J811) connectors of the antenna cable to the INT Board.
  • Page 20 1.2.3 Mounting antenna unit of MODEL 1734C 1. Open the antenna unit packing box carefully. 2. Unbolt the four bolts at the base of the radome to remove the radome cover. Radome cover Antenna unit The mounting surface must be parallel with the waterline and provided with five holes (four fixing holes and one cable entry) whose dimensions are shown in the outline drawing attached at the end of this manual.
  • Page 21 Antenna base plate Effective Gasket thread length Radome 25 mm 5 - 10 mm Flat washer Spring Platform washer M10 x 25 Apply silicone sealant. Hex bolt How to fasten the radome base to the mounting platform Wiring and final preparation 4.
  • Page 22 to one of the screws of the cable clamping plate 9-pin connector: to J801 on MD-9208 4-pin connector: to J802 on MD-9208 13-pin connector: to J611 on IF-9215 Signal cable, antenna unit side J802 J801 J611 RF unit...
  • Page 23 10. Attach the EMC core supplied as shown below. J801 J802 MD9208 J805 J804 J806 J803 Cable entrance Cable Motor clamping plate EMC core E04SS251512 (Above cable clamping plate) J613 PTU-9335 IF9215 J611 How to attach EMC core 11. Fix the shield cover. Do not pinch the cable. 12.
  • Page 24 1.2.4 Mounting the optional mounting bracket A mounting bracket for fastening the antenna unit to a mast on a sailboat is optionally available. Mounting bracket 1 (for MODEL 1734C) Type: OP03-92 Code No.: 008-445-070 Part Type Code No. Hex. bolt M4X12 000-804-725 Hex.
  • Page 25 Support plate (A) Assembling the mounting bracket (B) Fastening antenna to mounting bracket How to assemble and mount the optional mounting bracket...

  • Page 26: Wiring

    2. WIRING 2.1 Standard Wiring All wirings are terminated at the rear of the display unit. CAUTION The power cable is shipped with a 10A fuse (5A on GD-1720C) inserted in its fuse holder. This fuse is for use with a 12 VDC power supply. If you are using a 24 VDC power supply, replace the fuse with a 5A fuse (3A fuse on GD-1720C).
  • Page 27 Signal cable connection 1. Remove the waterproofing cover from the DJ-1 at the back of the display unit. 2. Connect the signal cable to DJ-1 on the rear panel of the display unit. Rubber cover DJ Connector Cable Boot-band DJ-1 Display unit 3.
  • Page 28 DATA1 to DATA3 ports Other equipments can be connected here as shown below. DATA1 (7P) DATA2 (6P) DATA3 (7P) GPS receiver GP-310B/320B, Heading sensor NMEA IN, NMEA OUT for PC NMEA equipments (ex. SC-60/120) External buzzer This equipment can receive the following NMEA 0183 format sentence from other equipments.

  • Page 29: External Buzzer (Op03-136, Option) Connection

    2.2 External Buzzer (OP03-136, option) Connection The optional external buzzer provides a louder alert when the guard alarm is violated. External buzzer Type: OP03-136 Code no.: 000-086-443 Further, you need the optional cable assy MJ-A7SPF0007-050C (w/7P connector, 5 m, code no. 000-154-028-10). 1.

  • Page 30: How To Connect With A Pc

    2.3 How to Connect with a PC When connecting with the personal computer, prepare the optional cable assy MJ-A7SPF0007-050C and D-sub 9 pins plug (local supply), and connected them as follows. This function is not available with the GD-1720C. SHIELD BLUE WHITE D-SUB 9PIN...

  • Page 31: Setting Up The Equipment

    3. SETTING UP THE EQUIPMENT 3.1 Setting up with the Installation Wizard After you have installed the equipment, set up the equipment with the installation wizard. The wizard allows you to easily set up the NavNet network (choose source of radar, sounder and auxiliary), GPS, ports, etc.
  • Page 32 CAUTION: Ensure that the settings to be loaded are compatible with this NavNet unit. Improper settings will damage the equipment. 7. The screen for set up of units of measurement appears. RANGE UNIT nm, kt DEPTH UNIT TEMPERATURE UNIT °F WIND UNIT LOCAL TIME OFFSET +00:00...
  • Page 33 11. Choose DEVICE NUMBER, RADAR SOURCE or SOUNDER SOURCE as appropriate and then press the EDIT soft key. One of the following displays appears depending on your selection. DEVICE NUMBER RADAR SOURCE SOUNDER SOURCE ▲ ▲ ▲ 1 (IP:172.031.003.001) 1 (IP:172.031.003.001) ETR0 (IP:172.031.092.001) 2 (IP:172.031.003.002) 2 (IP:172.031.003.002)
  • Page 34 13. After choosing ALL sources, press the NEXT soft key, and the RADAR SETUP menu appears. If you do not have a radar installed, press the NEXT soft key to show the NAV SETUP menu and go to step 25. ANTENNA TYPE HEADING DATA MAGNETIC...
  • Page 35 20. Choose TUNING and then press the EDIT soft key. TUNING ▲ ▼ 21. Choose ON and then press the ENTER soft key. Then, the radar’s video and tuning are automatically adjusted. 22. After tuning has been completed, choose TIMING ADJUST and then press the EDIT soft key.
  • Page 36 23. Choose HEADING ADJUST and then press the EDIT soft key. HEADING ADJUST   24. Choose ON and then press the ENTER soft key. You have mounted the antenna unit facing straight ahead in the direction of the bow. Therefore, a small but conspicuous target dead ahead visually should appear on the heading line (zero degrees).
  • Page 37 NAV SETUP menu description Item Description Settings (Default in bold) Position Chooses source of position data. FURUNO BB GPS: GPS Receiver Source GP-310B/320B GP: GPS navigator (via NETWORK or NMEA port) LC: Loran C navigator (via NETWORK or NMEA port)
  • Page 38 28. After setting up navigation equipment, press the NEXT soft key, and the GPS SETUP menu appears. This menu sets ups the FURUNO GPS receiver GP-310B/320B. If you do not have this equipment, press the NEXT soft key and go to step 31.
  • Page 39 GPS SETUP menu description (con’t from previous page) Item Description Settings Default Setting Spd/Cse During position fixing, ship’s velocity 0-999 sec 5 sec Smoothing (speed and course) is directly measured by receiving GPS satellite signals. The raw velocity data may change randomly depending on receiving conditions and other factors.
  • Page 40 GPS SETUP menu description (con’t from previous page) Item Description Settings Default Setting Fix Mode Choose position fixing method: 2D 2D, 2D/3D 2D/3D (three satellites in view), 2D/3D (three or four satellites in view whichever is greater). Cold Start Clears the Almanac to receive the latest No, Yes Almanac.
  • Page 41 32. Choose item and press the EDIT soft key. Choose appropriate setting and then press the ENTER soft key. Refer to the table and sentence description on the next page for details. 33. Press the NEXT key, and the DATA3 (PC/NMEA/EXT BUZZ) port setup menu appears. Set up this port similar to how you set up the DATA1 port.
  • Page 42 $GPGLL,3415.2345,N,13520.5301,E,152500.00 ,A*E7<CR><LF>$GPGLL,3415.2345,N,135 20.5301,E,152500.00,A*E7<CR><LF>$GPGLL ,3415.2345,N,13520.5301,E,152500.00,A* E7<CR><LF>$GPGLL,3415.2345,N,13520.530 1,E,152500.00,A*E7<CR><LF>$GPGLL,3415. 2345,N,13520.5301,E,152500.00,A*E7<CR> <LF>$GPGLL,3415.2345,N,13520.5301,E,15 2500.00,A*E7<CR><LF Installation wizard, port monitor display 34. Press the NEXT soft key, and the NMEA sentence selection window appears. Installation wizard, NMEA sentence selection window 35. Choose sentence to process and press the ON/OFF soft key to show ON (to output data) or “- -“...

  • Page 43: Checking Magnetron Heater Voltage

    3.2 Checking Magnetron Heater Voltage Magnetron heater voltage is formed on the PTU or MD Board of the antenna unit, and preadjusted at the factory. Therefore, no adjustment is required. However, check magnetron heater voltage for confirmation as follows. This procedure should only be performed by a qualified technician.

  • Page 44: Remote Controller Setting

    3.3 Remote Controller Setting A remote controller can be set exclusively for use with a specific display unit, in the case of multiple NavNet display units. Set the remote controller ID mode desired on the menu and attach appropriate label (supplied with accessories) to the remote controller and display unit.
  • Page 48 Model 1724C C3494‑M01‑B...
  • Page 49 Model 1734C C3496‑M01‑B...
  • Page 50 008‑523‑670 19AW‑X‑9401 ‑1  CODE NO. TYPE CP03‑22201 工事材料表 INSTALLATION MATERIALS 数量 番 号 名  称 略  図  型名／規格 用途／備考 Q'TY  NO.  NAME OUTLINE DESCRIPTIONS REMARKS ﾋｭｰｽﾞﾊﾘﾏｰｸ 03‑153‑1312‑0 FUSE LABEL CODE NO. 100‑292‑140 Fﾏｳﾝﾄﾖｳｽﾎﾟﾝｼﾞ 03‑164‑1401‑0 FLUSH MOUNTING SPONGE CODE NO. 100‑323‑870 +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1種 5X20 SUS304 SELF‑TAPPING SCREW CODE NO. 000‑802‑081 M3X8 SUS304 +ﾅﾍﾞｾﾑｽﾈｼﾞB WASHER HEAD SCREW CODE NO. 000‑802‑606 M4X20 SUS304 +ﾅﾍﾞｾﾑｽﾈｼﾞB WASHER HEAD SCREW...
  • Page 51 008‑547‑740 CODE NO. 19AW‑X‑9301 ‑2  SP03‑15201 BOX NO.   P     TYPE SETS PER  SHIP NO. SPARE PARTS LIST FOR  U  S  E VESSEL QUANTITY REMARKS/CODE NO. DWG. NO.   WORKING ITEM  NAME OF  OR  OUTLINE PART SPARE TYPE NO. ﾋｭｰｽﾞ FGBO 125V 10A  FUSE 000‑155‑826 ﾋｭｰｽﾞ FGBO 250V 5A  FUSE 000‑155‑840 ﾋｭｰｽﾞ FGBO 250V 3A  FUSE 000‑155‑841 MFR'S NAME FURUNO  ELECTRIC  CO.,LTD. DWG NO. 19AW‑X‑9301 （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 55 Y. Hatai...

  • Page 58: Interconnection Diagrams

    指 示 部 DISPLAY UNIT FUSE RDP-148 MJ-A3SPF0013-035C(5A),3.5m,φ10 5A:12VDC MJ-A3SPF0013(3A),3.5m,φ10 MJ-A3SPF 3A:24VDC J1351 (03S9148-0,VV-S 2.0x2C) シロ WHT 12-24 VDC クロ BLK DPYC-1.5 *1 24VDC 100/110/220/230 VAC 1φ,50/60 Hz (+)(-) 整流器 RECTIFIER DATA1 PR-62 MJ-A7SPF J1352 TD1-A TD1-B RD1-A GPS受信機 RD1-B GPS RECEIVER +12V GP-310B/320B...
