(3) Slide the AP onto the bracket in the opposite direction of the arrow on the mounting bracket until it clicks into
place.

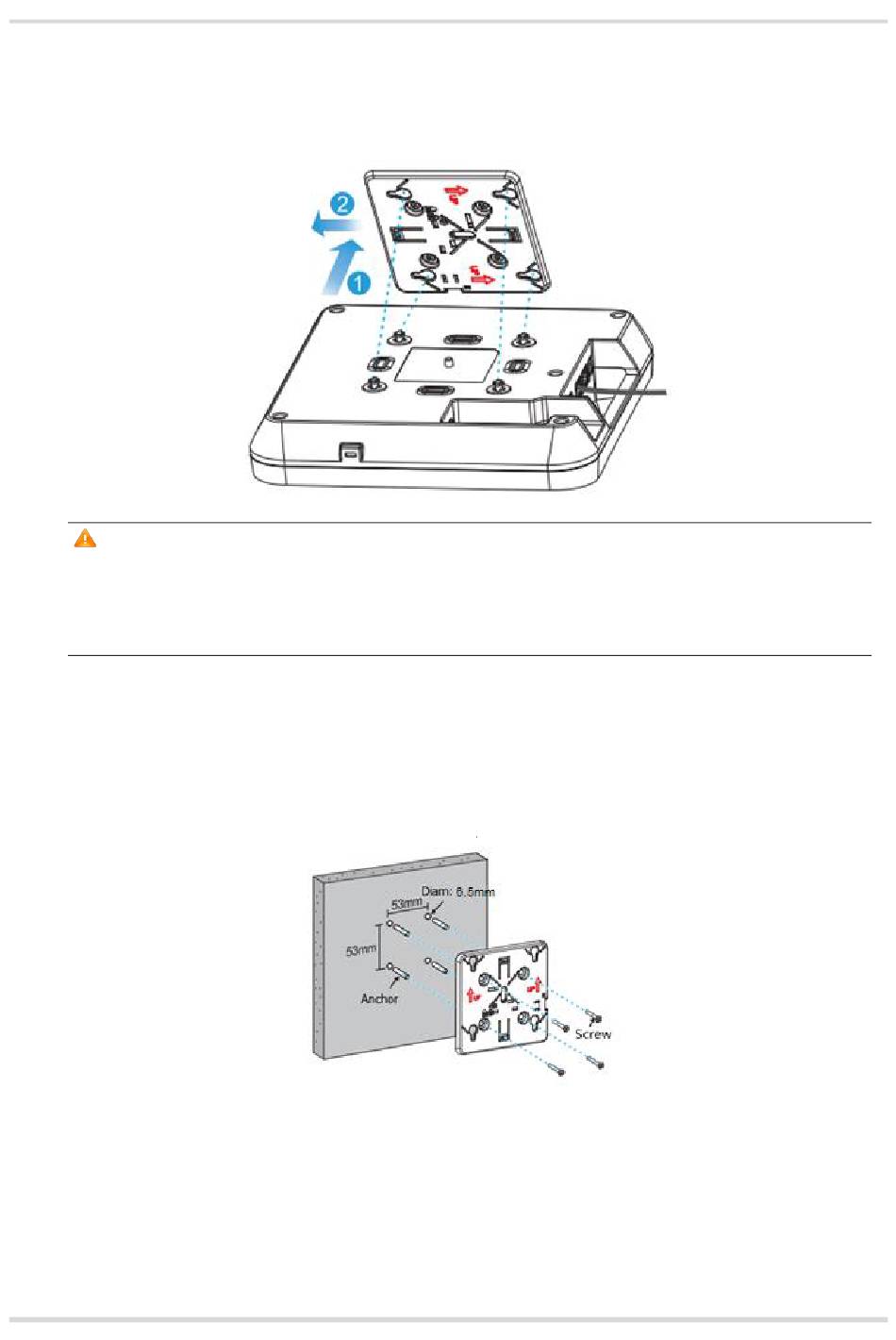

Figure 3-4 Mounting the AP on the Bracket
Caution

The AP can be installed in any of four directions on the mounting bracket depending on how you route the
Ethernet cable.

The square feet should fit easily into the mounting slots. Do not forcibly push the AP into the slots.

After installation, verify that the AP is securely fastened.
3.4.2

Wall Mounting

(1) Drill four 6.5 mm (0.26 in.) diameter holes in the wall and 53 mm (2.09 in.) apart, with the arrow on the mounting
bracket facing up. Tap wall anchors into the holes, and drive screws through the mounting bracket into the
anchors to secure the bracket.
Figure 3-5 Attaching the Mounting Bracket to the Wall
(2) Align the square feet on the rear of the AP with the mounting holes on the bracket.
Figure 3-6 Aligning the Square Feet with the Mounting Holes
