Installing the Access Point

Note

You are advised to install the device where you can get the optimal coverage.

In the indoor area, the signal coverage of the ceiling-mounted device is larger than that of the wall-
mounted device. Please choose the ceiling-mounting method first.
3.4.1

Ceiling Mounting

(1) Drill four 6.5 mm (0.26 in.) diameter holes in the ceiling, 53 mm (2.09 in.) apart. Tap wall anchors into the holes,
and drive screws through the mounting bracket into the anchors to secure the bracket.

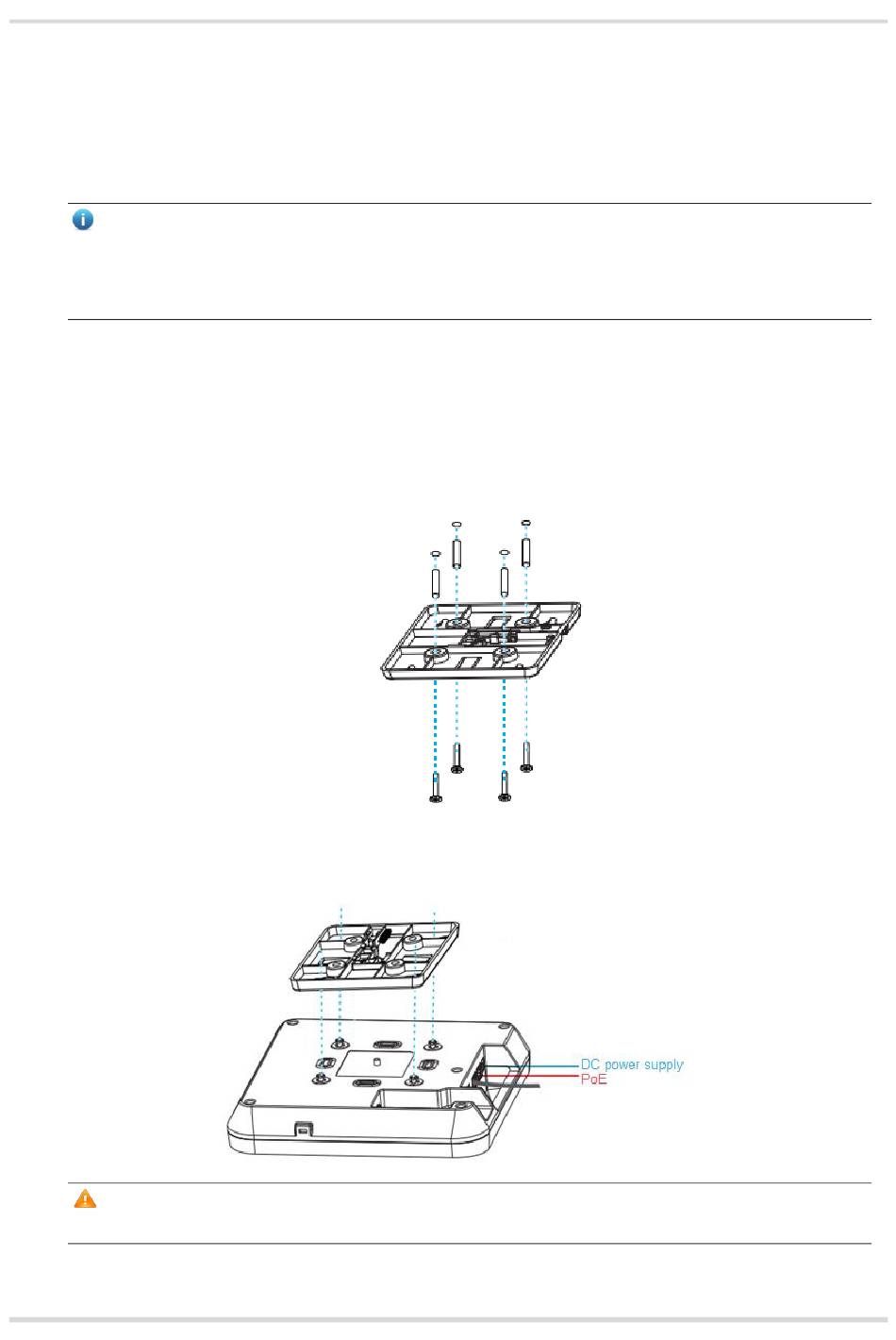

Figure 3-2 Attaching the Mounting Bracket to the Ceiling
(2) Align the square feet on the rear of the AP with the mounting holes on the bracket.
Figure 3-3 Aligning the Square Feet with the Mounting Holes
Caution
Install the Ethernet cables before mounting the AP on the bracket.
