Hardware Installation and Reference Guide

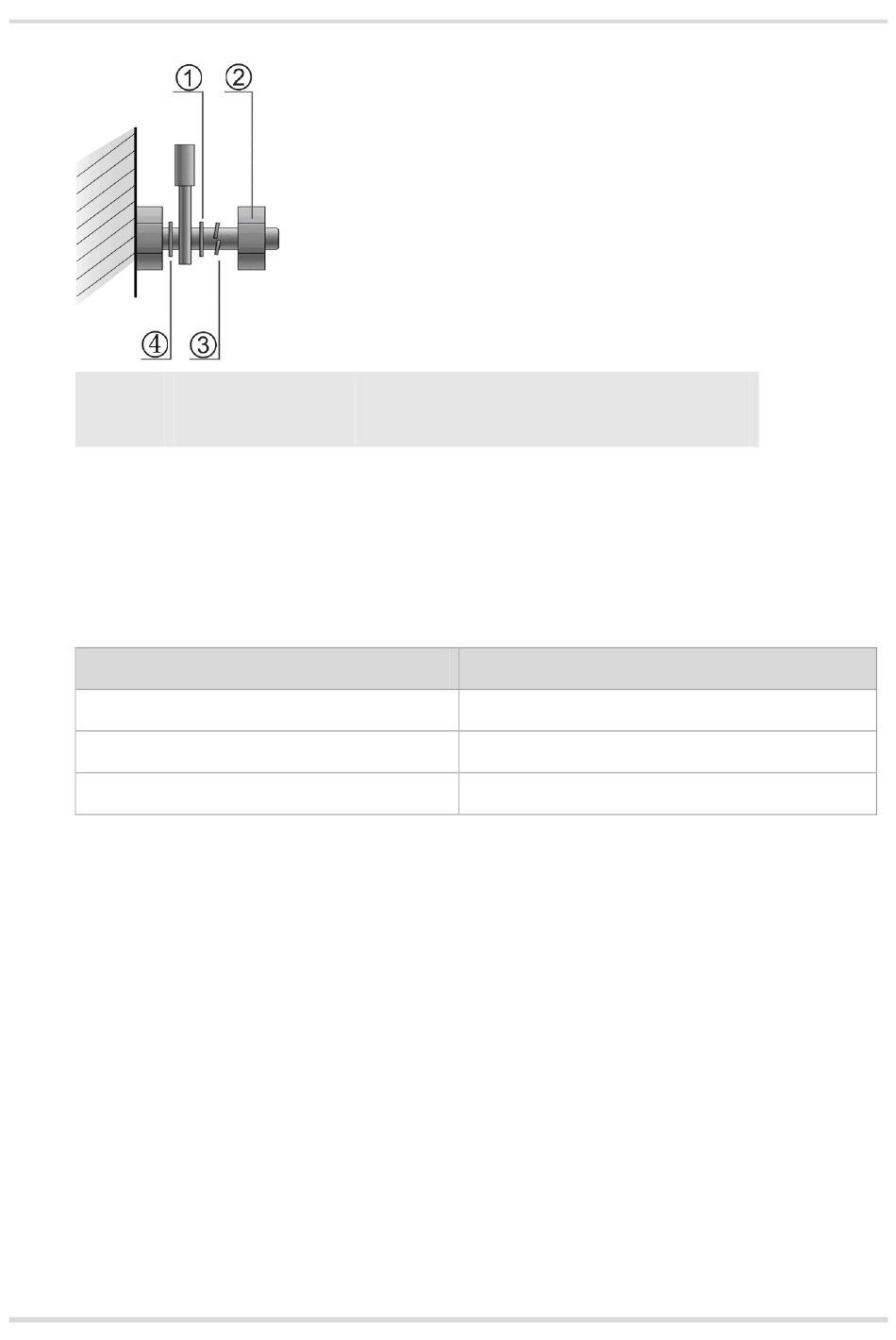

Figure 7-4 Fastening Cable Lugs
Note
Hard power cords should be fastened in the terminal connection area to prevent stress on terminal
connection and cable.
Do not use self-tapping screws to fasten terminals.
Power cords of the same type and in the same cabling direction should be bundled up into cable bunches,
with cables in cable bunches clean and straight.
Cables need to be tied according to the following table.
Diameter of Cable Bundle (mm)
10 mm (0.39 in.)
10 mm to 30 mm (0.39 in. to 1.18 in.)
30 mm (1.18 in.)
No knot is allowed in cabling or bundling.
For wiring terminal blocks (such as circuit breakers) with cord end terminals, the metal part of the cord
end terminal should not be exposed outside the terminal block when assembled.
1. Flat washer
2. Nut
3. Spring washer
4. Flat washer
Space between Bundles (mm)
80 mm to 150 mm (3.15 in. to 5.91 in.)
150 mm to 200 mm (5.91 in. to 7.87 in.)
200 mm to 300 mm (7.87 in. to 11.81 in.)
34
Appendix
