Table 3-1 1000BASE-T Twisted Pair Connections
10BASE-T uses 100-ohm Category-3/4/5 UTP or STP, and 100BASE-TX uses 100-ohm Category-5 UTP or STP
for connections. Both support a maximum length of 100 meters (328.08 ft.). Table 7-2 shows 100BASE-
TX/10BASE-T pin assignments.
Table 3-2 100BASE-TX/10BASE-T Pin Assignments
Pin
1
2
3
6
4, 5, 7, 8

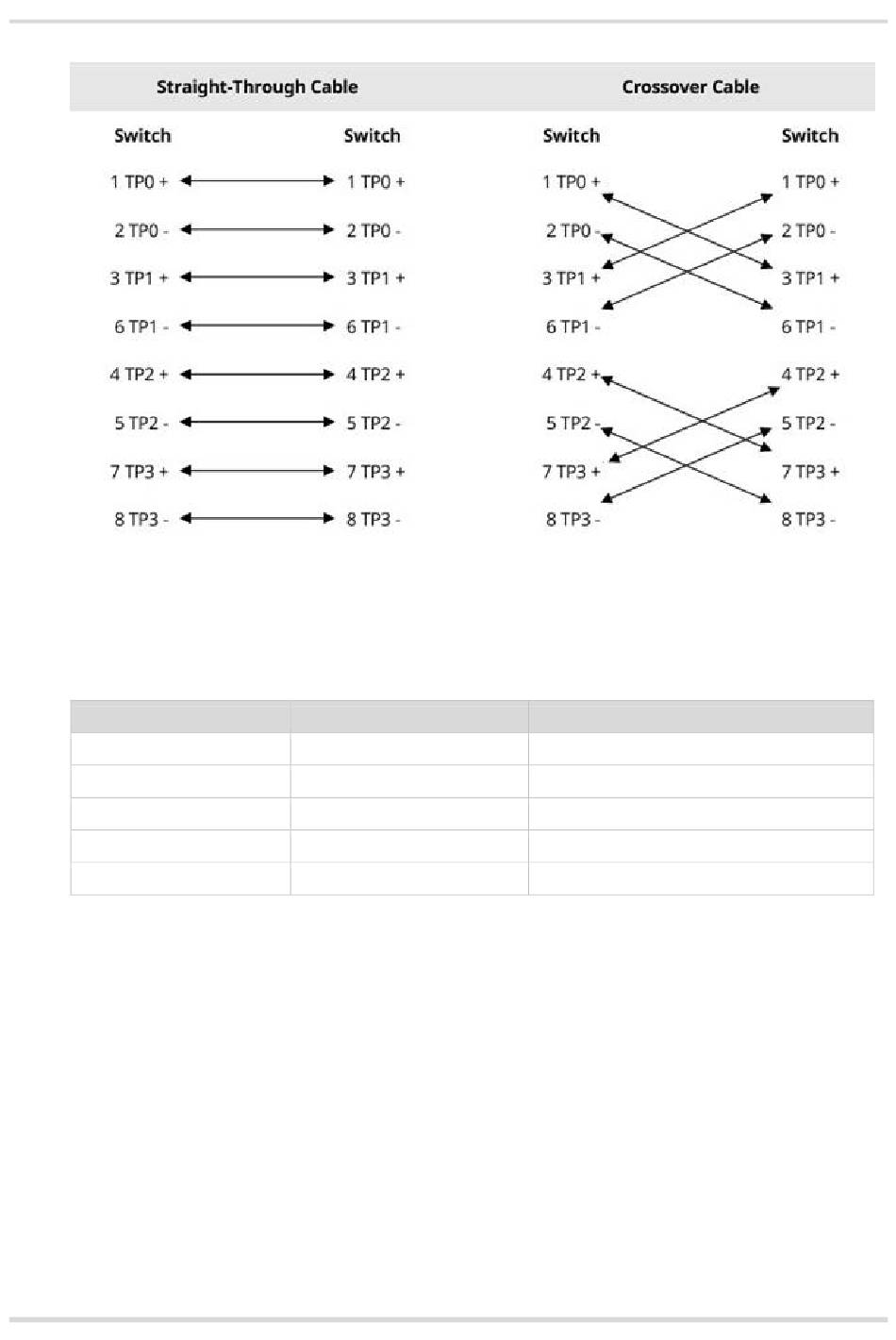

Table 7-3 shows wiring of straight-through and crossover cables for 100BASE-TX/10BASE-T.
Socket
Input Receive Data+
Input Receive Data-
Output Transmit Data+
Output Transmit Data-
Not Used
23
Plug
Output Transmit Data+
Output Transmit Data-
Input Receive Data+
Input Receive Data-
Not Used
