Adjust the Crossbar Angle and Center Monitor Height

To adjust the angle of the Crossbar, Centre by +4° or -4°,
1.
use the 4mm Hex Key to loosen the Screws (x 4) at the back
of the Center VESA Monitor Mount. Make the necessary
adjustment and tighten the Screws with the 4mm Hex Key
(x 4). (Figure 21)
Warning! Do not fully remove the Screws.
To adjust the Height of the Center Monitor, use the 6mm
2.
Hex Key to Tighten or Loosen the Screw at the back of the
Center VESA Monitor Mount. (Figure 22)
For additional self-service support options and community forums, please visit: www.StarTech.com/support

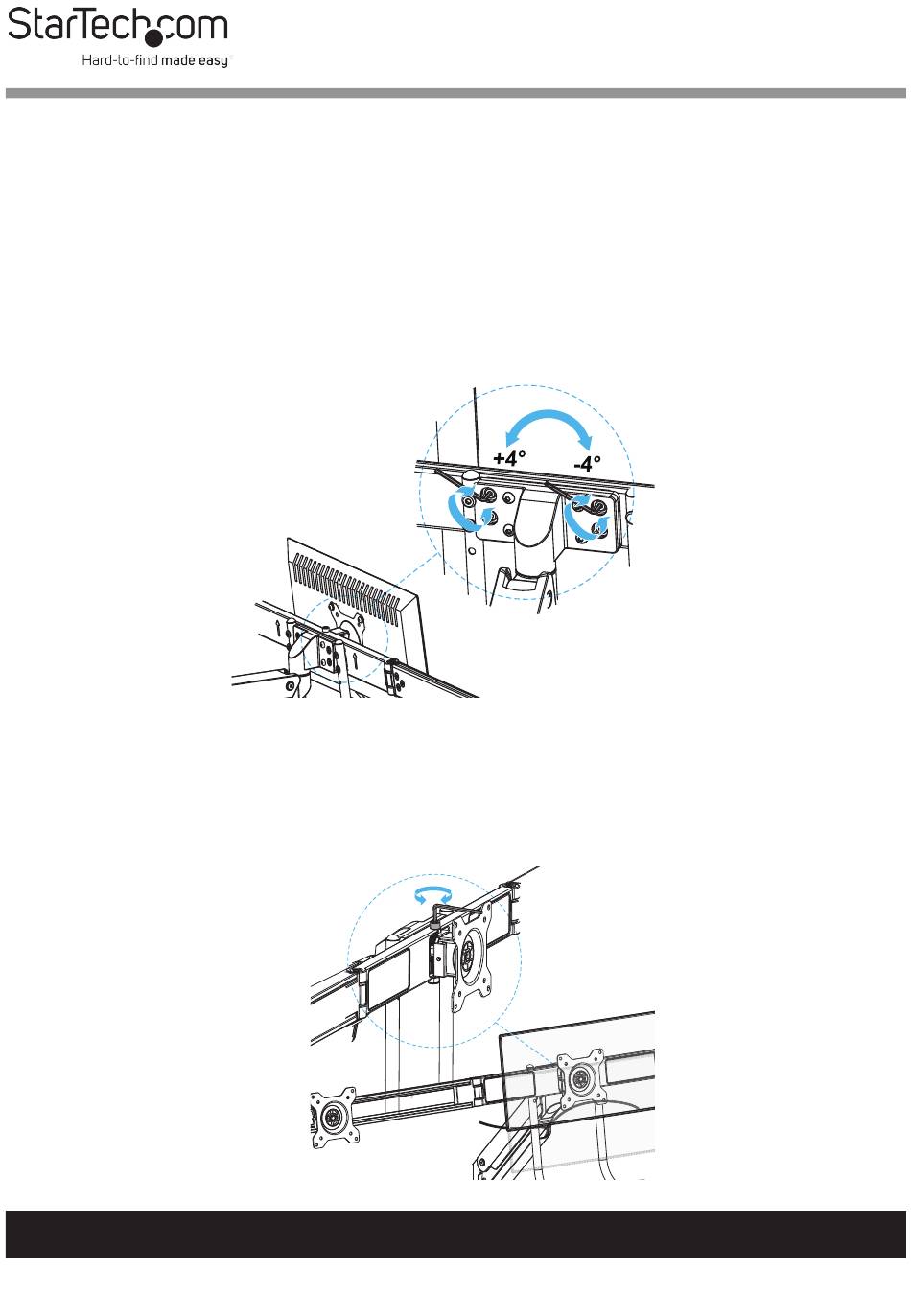

Figure 21
