StarTech.com 3M1A3SG-MONITOR-ARM User Manual page 21

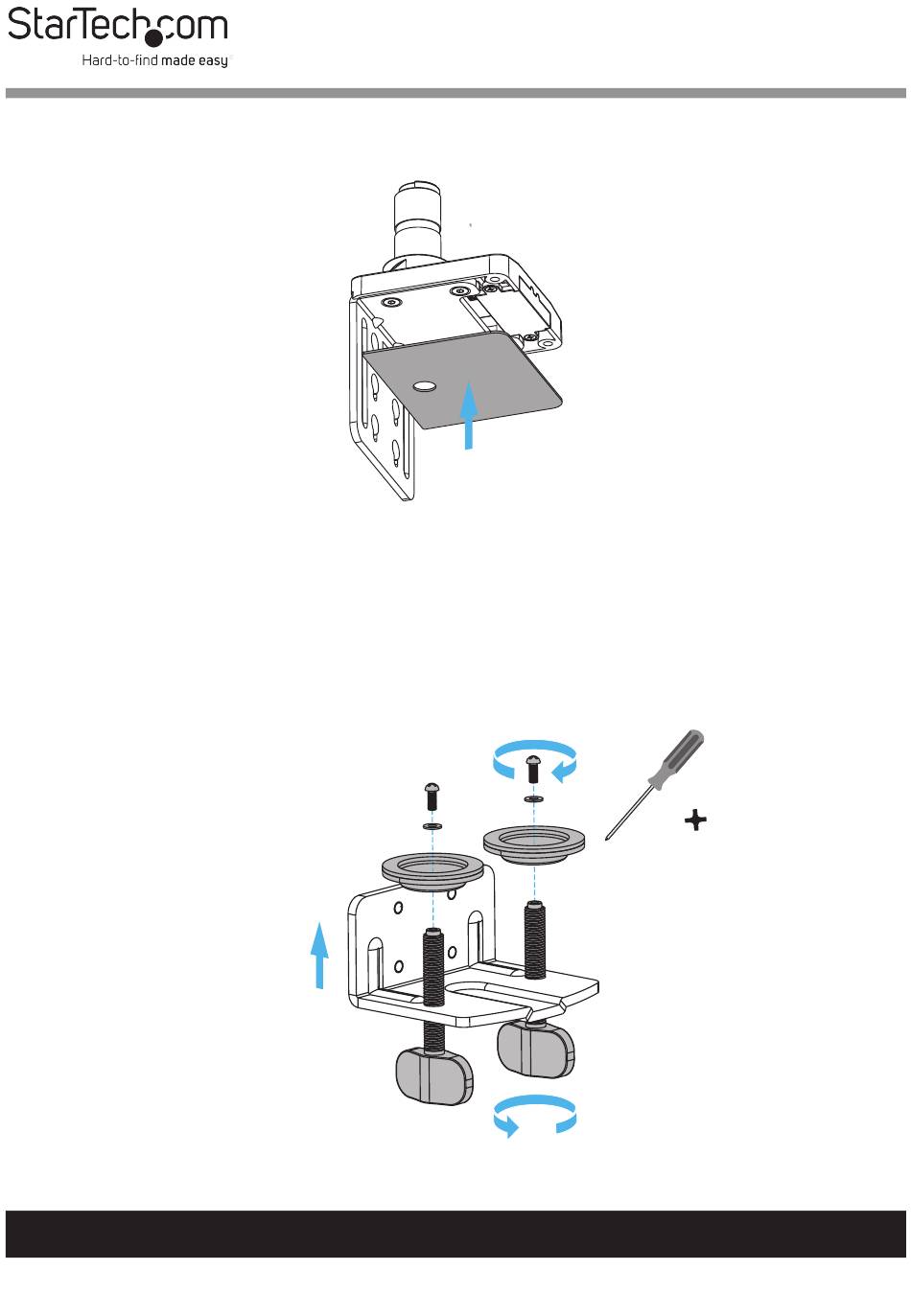

Carefully apply the Base Pad to the bottom of the Base
4.
Mount.
(Figure 3)
Screw-in the Hand Knobs (x 2) into the Lower Desk Clamp.
5.
Insert the M4x10mm Screws (x 2) through the Small
6.
Washers (x 2), Desk Clamping Discs (x 2) and into the
Hand Knobs (x 2). Tighten the M4x10mm Screws (x 2) with
a Phillips Head Screwdriver. (Figure 4)
For additional self-service support options and community forums, please visit: www.StarTech.com/support
Figure 3
Figure 4
