Grommet Installation; Assemble The Base Mount - StarTech.com 3M1A3SG-MONITOR-ARM User Manual

Grommet Installation

Assemble the Base Mount

Align the Screw Holes (x 4) on the Grommet Base Plate
1.
with the Screw Holes on the bottom of the Base Mount.
Note: The countersunk holes on the Grommet Base Plate
should be on the outside.
Insert the Countersunk Screws (x 4) through the Grommet
2.
Base Plate and into the bottom of the Base. Use the 4mm

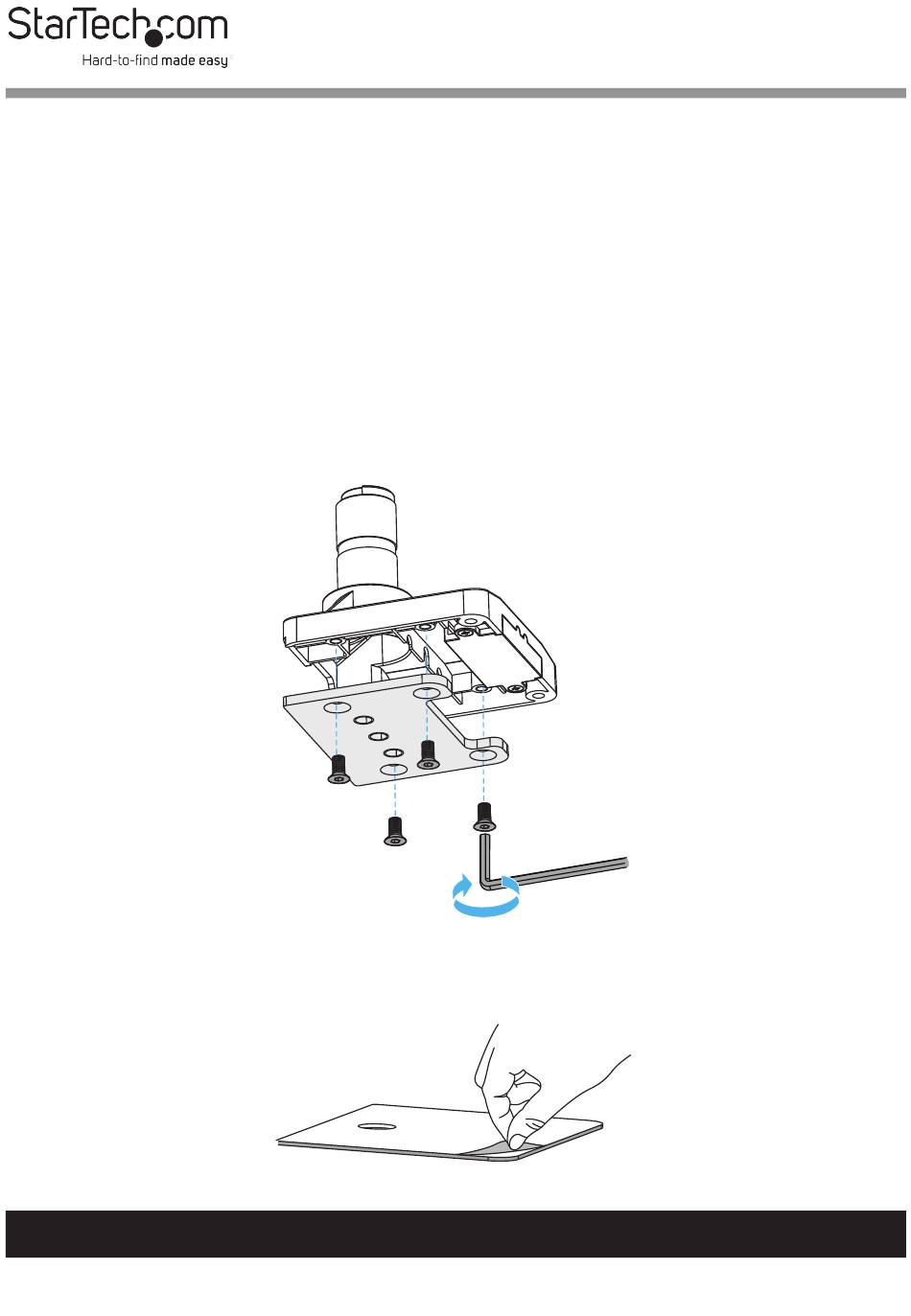

Hex Key to tighten the Countersunk Screws (x 4). (Figure 8)
Remove the backing from the Base Pad. (Figure 9)
3.
