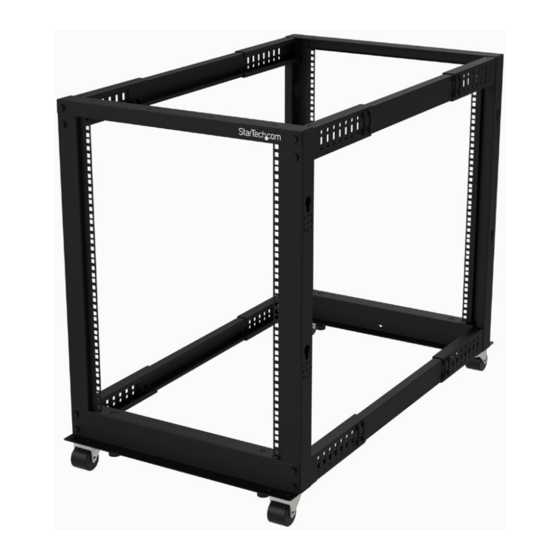

- Page 1 Adjustable 4 Post Open Frame Server Rack Actual product may vary from photos User Manual SKU#: 4POSTRACKxU For the latest information and specifications visit www.startech.com/4POSTRACKxU Manual Revision: 01/25/2021...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Warning Statements
• This product requires an earth ground connection. Do not use this product without an earth ground connection. Varningar • Se till att du monterar produkten i enlighet med instruktionerna. • Överskrid inte produktens vikt kapacitet. Överbelastning av denna produkt kan leda till skador eller skador på egendom. Denna produkt kan stödja följande vikt: stationär: 544 kg rullande: 300 kg. • Produkten är endast avsedd för användning inomhus och ska inte användas utomhus. • Detta skåp är extremt tungt. Försök aldrig flytta på skåpet eller lyfta det utan hjälp. • Risk för vältning! Att förlänga flera komponenter från detta skåp ökar risken för att det välter. Förläng inte fler än en komponent från skåpet för att undvika risk. • Placera inte saker ovanpå skåpet och ställ inte skåpet ovanpå ett annat skåp. • Håll vätskor borta från skåpet. • Se till att du installerar skåpet på en plats som kan hantera den kombinerade vikten av skåpet och utrustningen som du tänker placera inuti. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Veillez à installer le rack de serveur dans un endroit pouvant supporter le poids combiné du rack et des équipements que vous comptez placer à l’intérieur. • Ce produit nécessite un raccordement à la terre. N’utilisez pas ce produit sans raccordement à la terre. Warnhinweise • Beachten Sie bei der Montage dieses Produkts die Montageanweisungen. • Überschreiten Sie nicht die Tragfähigkeit dieses Produkts. Das Überladen dieses Produkts kann zu Verletzungen oder Sachschäden führen. Dieses Produkt kann das folgende Gewicht tragen: Stationär = 544 kg, rollend = 300 kg. • Dieses Produkt ist nur zum Gebrauch in Innenräumen vorgesehen und sollte nicht im Freien verwendet werden. • Dieses Gehäuse ist extrem schwer. Versuchen Sie niemals, dieses Gehäuse ohne Hilfe zu bewegen oder anzuheben. • Kippgefahr! Das Ausziehen mehrerer Komponenten aus diesem Gehäuse erhöht die Chance, dass das Gehäuse umkippt. Um dies zu vermeiden, ziehen Sie niemals mehr als eine Komponente aus diesem Gehäuse aus. • Platzieren Sie keine Gegenstände auf dem Gehäuse und stapeln Sie das To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 5 • Tenere il box esterno lontano dai liquidi. • Assicurarsi di installarlo in un punto che possa sorreggere il peso combinato del box esterno e dell’apparecchiatura che si intende collocare al suo interno. • Il prodotto richiede una messa a terra. Non utilizzare il prodotto in assenza di una messa a terra. Mensagens de aviso • Certifique-se de que monta este produto de acordo com as instruções. • Não exceda a capacidade de peso deste produto. Sobrecarregar este produto pode resultar em ferimentos ou danos à propriedade. Este produto pode suportar o seguinte peso: estacionário: 544 kg. Rolando: 300 kg. • Este produto destina-se apenas a uma utilização no interior e não deve ser utilizado no exterior. • Esta caixa é extremamente resistente. Nunca tente mover ou levantar esta caixa sem assistência. • Perigo de queda! Estender vários componentes desta caixa aumenta a To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • ¡Peligro de vuelco! Añadir a esta caja varios componentes aumenta las posibilidades de peligro de vuelco de la caja. Para evitar dicho riesgo, no añada más que un solo componente. • No coloque ningún elemento encima de la caja y no apile la caja encima de otra caja. • Mantenga cualquier líquido lejos de la caja. • Asegúrese de instalar la caja en un área que tenga capacidad para soportar el peso combinado de la caja y el equipo que va a instalar dentro de la misma. • Este producto requiere conexión a tierra. No utilice este producto sin conexión a tierra. Waarschuwingen • Zorg dat u dit product volgens de instructies in elkaar zet. • Overschrijd de maximale capaciteit van dit product niet. Overbelasting De maximale gewichtscapaciteit mag niet overschreden worden. Overbelasting kan kan letsel of schade tot gevolg hebben. Dit product kan het volgende gewicht ondersteunen, stationair = 544 kg. rollend = 300 kg. • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 本製品は、 非常に重いエンクロージャです。 絶対に一人で持ち上げたり 動かしたり しないで下さい。 • 転倒注意 ！ 本製品から複数のコンポーネントが突き出した状態にしてお く とエンクロージャが転倒する恐れがあります。 転倒リスクを回避するた めに、 エンクロージャからはコンポーネントが突き出ないようにして下 さい。 • 本製品の上に何も載せないで下さい。 複数のエンクロージャを重ねて設 置しないで下さい。 • 液体物をエンクロージャに近づけないようにして下さい。 • エンクロージャ自身と中に積載する装置の総重量に耐えられるエリアに 設置して下さい。 • この製品にはアースが必要です。 アース接続をしていない状態で本製品 を使用しないでください。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 8: Table Of Contents
Install the Casters ............................13 Install the Cable Management Hooks ....................14 Ground the Rack ............................15 Operation ....................16 Adjust the Leveling Feet ......................... 16 Warranty Information ................17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Diagram
Center Sections (x 4) Right Vertical Rails (x 2) Top Brackets (x 2) Base Brackets (x 2) Casters (x 4) Corner Sections (x 8) Leveling Feet (x 4) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Package Contents
Package Contents Left Vertical Rail Right Vertical Rail Qty: 2 Qty: 2 Base Bracket Corner Section Qty: 2 Qty: 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 11 Center Section Top Bracket Qty: 4 Qty: 2 M8 Bolt M8 Washer Qty: 50 Qty: 50 10 mm Wrench 13 mm Wrench Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 12 M6 Cage Nuts 8U/12U/15U/18U Qty: 24 Phillips Head Screwdriver 25U Qty: 32 Qty: 1 42U Qty: 50 M6 Plastic Washers M6 Phillips Head Screw 8U/12U/15U/18U Qty: 24 8U/12U/15U/18U Qty: 24 25U Qty: 32 25U Qty: 32 42U Qty: 50 42U Qty: 50 Cable Management Hooks Hook Mounting Screws 8U/12U Qty: 4...
- Page 13 Leveling Feet Casters Qty: 4 Qty: 4 M6 Screws M6 Flat Washers Qty: 18 Qty: 18 M6 Flange Nut Grounding Wires Qty: 18 Qty: 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 14 M6 Grounding Wire Bolts M6 Grounding Wire Lock Washers Qty: 4 Qty: 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Requirements
Figure 1 Determine the maximum required mounting depth for the Rack Mountable Equipment. Review the Mounting Depth Chart to determine the Setting Numbers that are required for the application. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Slide the Corner Sections (x 2), inward along the Center Sections (x1), and align the Setting Numbers on the Center Sections with the first Rectangular Cutout on the Corner Sections (x 2). (Figure 2) Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 17: Assemble The Rack
Lift a Base Bracket so that it is vertical and align the two holes in the side with the two holes in the Vertical Rail and Center Section Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 Figure 4 Tighten the M8 Bolts using the 13 mm Wrench. Repeat steps 3 to 5 to install the second Base Bracket. Lift the current assembly of parts upright. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 19 Base Bracket that align with the Vertical Rails and the Center Section Assembly. Tighten the M8 Bolts using the 13 mm Wrench. Repeat steps 9 to 11 to install the Right Vertical Rail. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Insert eight M8 Bolts through eight M8 Washers and into the holes in the Top Brackets and the tops of the Vertical Rails. (Figure 7) Tighten the M8 Bolts using the 13 mm Wrench. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Install The Leveling Feet
Notes: Flip the Rack onto its side to complete this step. Two people may be required to complete this step. Align the four holes in a Caster with the four holes in the bottom of the Rack. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 22: Install The Cable Management Hooks
Align the Cable Management Hooks with the Cable Mounting Screw Holes along the back of the Rack. Insert a Hook Mounting Screw though the Rack and into the Cable Management Hook. (Figure 9) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 23: Ground The Rack
Grounding Wire and into the Ground Hole located on the bottom of the Rack. (Figure 10) Run the Grounding Wire under the Rack’s Frame. Connect the Grounding Wire to an Earth Ground Connection. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 24: Operation
Wrench, until all four Levelling Feet are set to the same height and pressed firmly against the floor. Note: Use a Spirit/Bubble Level to ensure the Rack is level. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 25: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 26 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
