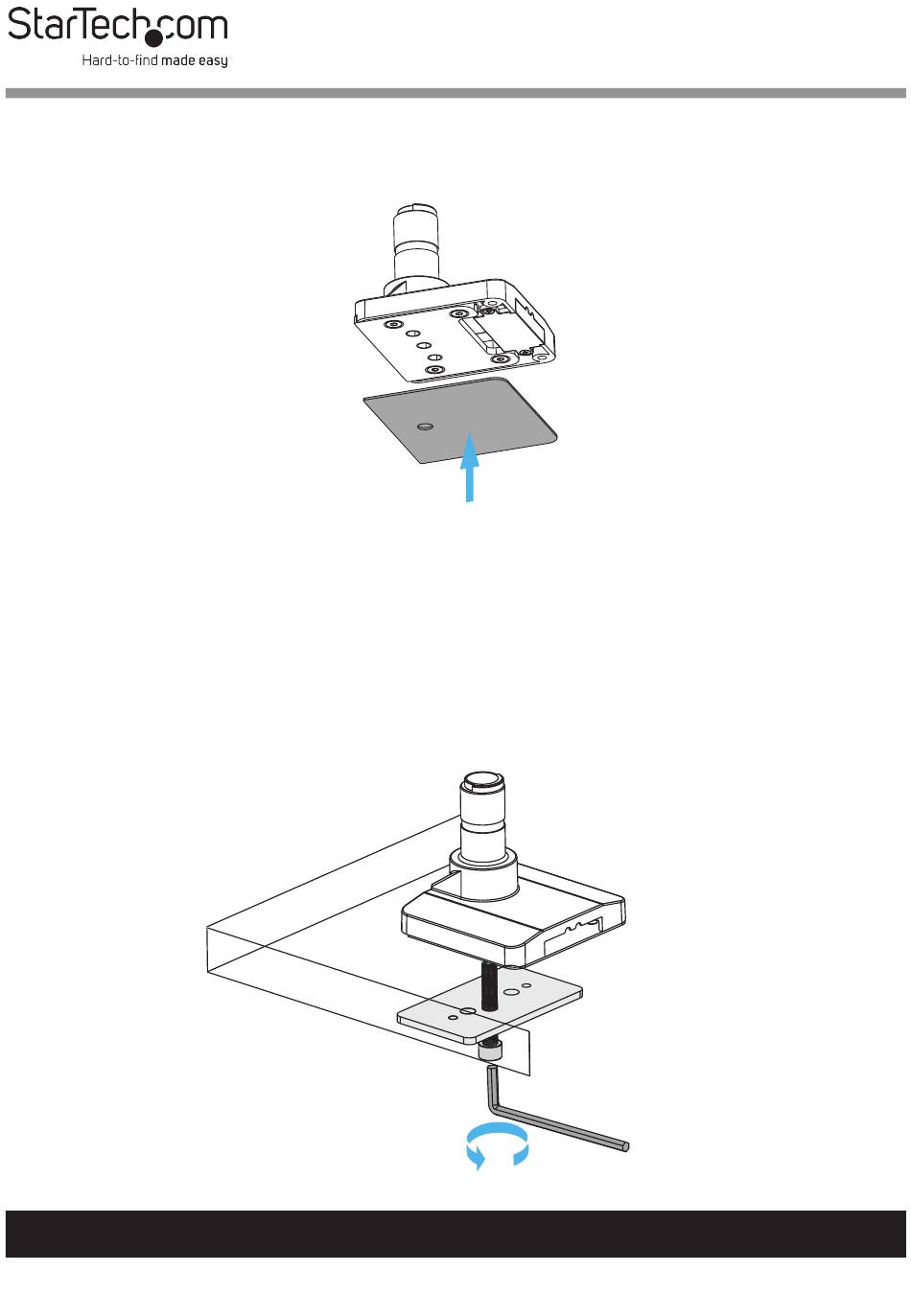

Carefully apply the Base Pad to the bottom of the Base
4.
Mount to complete the Grommet Base Assembly.
(Figure 10)
Align the Grommet Hole at the bottom of Grommet Base
5.
Assembly with the Desk Grommet Hole.
Insert the Grommet Screw through the Grommet Plate,
6.
Desk Grommet Hole, and into the Grommet Base
Assembly. Use the 6mm Hex Key to tighten the Grommet
Screw. (Figure 11)
For additional self-service support options and community forums, please visit: www.StarTech.com/support
Figure 10
Figure 11
