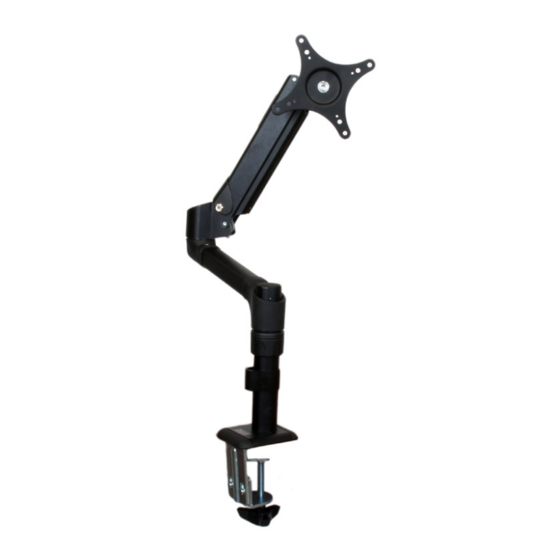

Desk Mount Articulating Monitor Arm with Cable
Management and Gas Spring Height Adjust
ARMPIVOTE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/19/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ARMPIVOTE
Summary of Contents for StarTech.com ARMPIVOTE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/19/2018...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................ii Packaging Contents ..........................ii Product Diagram ..................1 Installation ....................2 Desk / Grommet Mounting ........................2 Attaching the Display ..........................4 Attaching the Gas Spring Arm Assembly ..................5 Cable Management ..........................6 Adjusting the Gas Spring Arm Resistance ..................7 Specifications ..................9 Technical Support ..................10 Warranty Information ................10... -
Page 4: Introduction
Introduction Packaging Contents Plastic Gasket Cushion Qty.2 Instruction Manual... -
Page 5: Product Diagram
Product Diagram Instruction Manual... -
Page 6: Installation
Installation WARNING! It is the installer’s responsibility to ensure that the combined weight of all components does not exceed the maximum 8 lb (3.6 kg) weight capacity of the mounting arm. Desk / Grommet Mounting The Monitor Arm can be clamped to a desk / table, or mounted through a grommet hole. - Page 7 2. Desk Clamp: Attach the bottom portion of the Clamp (4) to the L Plate, then place the Clamp (4) opening around the edge of your desktop in your desired location and tighten by hand to secure. Ensure that the Clamp is making full contact with the desk surface.
-
Page 8: Attaching The Display
Attaching the Display 1. Carefully place your display face down on a protective surface to access the mounting points. 2. Depending on the depth of the mounting holes on your display, attach the display to the Gas Spring Arm (1) using either the M4x12mm (11) screws, or the M4x25mm (12) screws with spacers (10). -
Page 9: Attaching The Gas Spring Arm Assembly
Attaching the Gas Spring Arm Assembly 1. Slide the Extension Arm (2) down onto the Pole (3). 2. Slide the Gas Spring Arm (1) onto the Extension Arm (2). 3. Place the Cover and Bolt (9) onto the Gas Spring Arm (1) and press the bolt down to secure the two arms together. -
Page 10: Cable Management
Cable Management Note: When attaching cables and routing through the cable management channels, ensure that you leave enough slack to avoid stretching / pulling out the cables when moving the arm. 1. Connect your cables to your display and position the mounting arm in its fully extended position to ensure that the cables you are using are long enough to allow for proper movement. -
Page 11: Adjusting The Gas Spring Arm Resistance
4. Use the Cable Clip (7) to secure the display cables to the pole. Adjusting the Gas Spring Arm Resistance WARNING! Forced movement of the LCD Arms or Mount Brackets without loosening the screws may damage the product or the mounted displays. Always support your display from underneath when making any adjustments to the LCD Arms or Mount Brackets to avoid damage to the display. - Page 12 To increase / decrease the Gas Spring Arm resistance, adjust the set screw located at the elbow of the articulating arm, using the 4mm Allen Wrench (5). To increase / decrease the tilt resistance, adjust the set screw located on the side of the Mount Bracket joint, using the 6mm Allen Wrench (6).
-
Page 13: Specifications
Specifications Weight Capacity 8 lb (3.6 kg) Max Display Size 24” VESA Compatibility 75 x 75 mm and 100 x 100 mm Maximum Extension 22.05 in (560mm) Maximum Mounting Surface Thickness 2.95 in (75 mm) Instruction Manual... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
