Operation

Adjust the Spring Arm Tension

Locate the Tension Adjustment Screw on the Spring Arm.
1.
(Figure 20)
Apply downward pressure to the Spring Arm, then use
2.
the 6mm Hex Key to rotate the Tension Adjustment
Screw. Turn Counterclockwise to Increase the Tension for
Heavier/Larger Monitors, or turn Clockwise to Decrease
the Tension for Smaller/Lighter Monitors.
Note: Ensure the Spring Arm is in horizontal position when
adjusting.
For additional self-service support options and community forums, please visit: www.StarTech.com/support

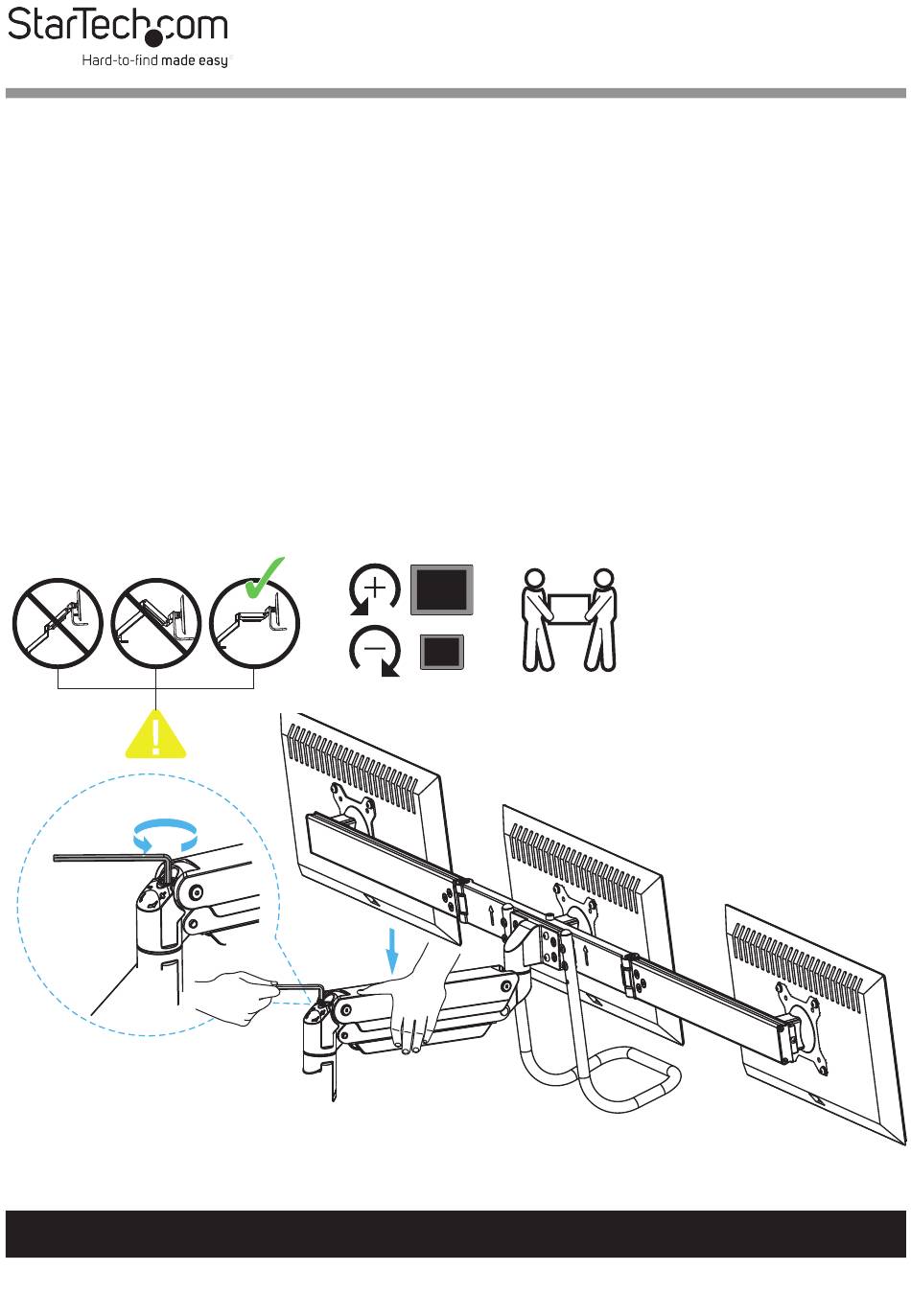

Figure 20
