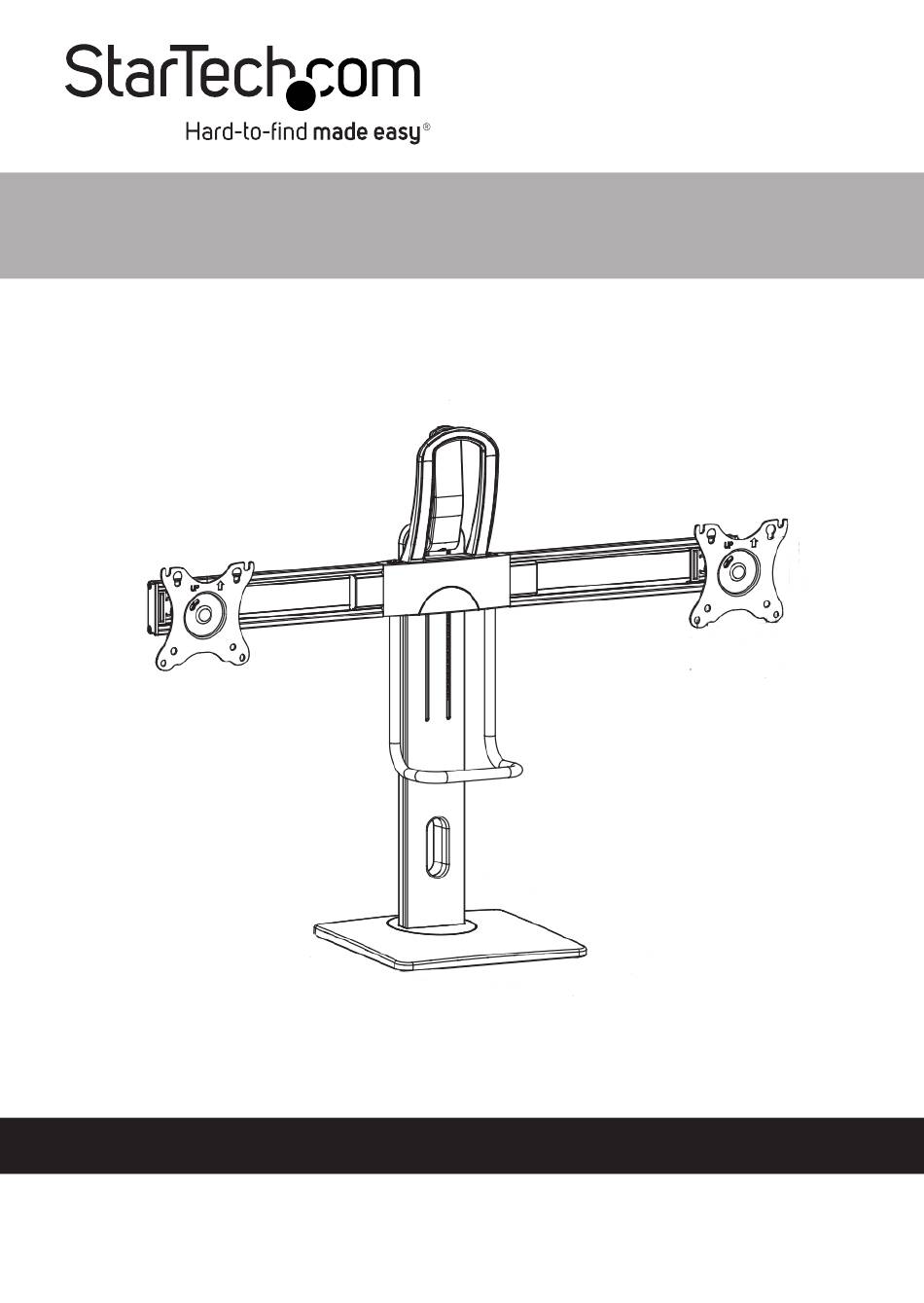

- Page 1 Dual Monitor Desk Stand - Height Adjustable Column - For up to 27” Monitors Full-Product Manual 2MC1S-MONITOR-STAND Actual products may vary from photos For the latest information and specifications visit www.StarTech.com/support Manual Revision: 05/14/2024...
-
Page 2: Safety Statements
安全対策 • • 製品の設置やマウントは、 使用地域の安全ガイドラインおよび建築 基準に従い、 有資格の専門業者が行うようにしてください。 Misure di sicurezza • L ’installazione e/o il montaggio dei prodotti devono essere eseguiti da un tecnico professionale certificato che conosca le linee guida locali sulle norme edilizie e sulla sicurezza. Medidas de seguridad • La instalación y/o montaje del producto debe ser realizada por un profesional certificado de acuerdo con las directrices de los códigos locales de seguridad y construcción. Sicherheitsmaßnahmen • Die Installation und/oder Montage des Produkts sollte von einem zertifizierten Fachmann gemäß den örtlichen Sicherheits- und Bauvorschriften durchgeführt werden. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 3: Warning Statements
• The weight capacity of the monitor arm: 13.2 lb (6 kg) x 2. • Do not allow children to climb on this product or to use this product without proper supervision. • This product is intended for indoor use only and should not be used outdoors. • Do not over-tighten the screws. If any resistance is encountered, stop tightening. • Assembling this product is a two-person task. Do not attempt to assemble this product and install equipment without assistance. • Before adding equipment to this product, ensure the product has been properly assembled, and that the product can support the weight of the added equipment. • Make sure all of the equipment has been properly secured before adjusting this product. • Stored Energy Hazard! This product contains a spring mechanism which can cause the mounted display to move forcibly, and quickly, upwards. Always exercise caution when adjusting the position of, or in close proximity to, the mounted display. Do not remove the mounted display unless the spring mechanism is locked or rendered safe. Failure to do so may result in property damage and/or serious personal injury. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 4 • Ne serrez pas trop les vis lors de l’assemblage de ce produit. Si vous rencontrez une résistance lors du serrage des vis, cessez de serrer. • L’assemblage de ce produit nécessite deux personnes. Ne tentez pas d’assembler le produit et d’installer les équipements sans aide. • Avant d’ajouter des équipements au produit, vérifiez que vous l’avez correctement assemblé et installé, et que le produit peut supporter le poids des équipements que vous y ajoutez. • Assurez-vous que tout l’équipement a été correctement fixé avant de régler ce produit. • Danger lié à l’énergie stockée ! Ce produit contient un mécanisme à ressort qui peut provoquer un déplacement forcé et rapide de l’ensemble et/ou de l’équipement monté vers le haut. Faites toujours preuve de prudence lorsque vous manipulez le(s) bras à ressort ou que vous vous trouvez à proximité de celui-ci. Ne retirez pas l’équipement monté tant que le bras à ressort n’a pas été placé dans la position la plus haute ou (si possible) que la force du ressort n’a pas été suffisamment réduite pour éliminer tout danger. Le non-respect de cette consigne peut entraîner des dommages matériels et/ou des blessures corporelles graves. • Risques de pincement ! Gardez les mains à l’écart de tout point de pincement créé par les composants mécaniques lorsque vous abaissez ou relevez l’écran. Le non-respect de cette consigne peut entraîner des blessures corporelles graves. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 5 • Innan du lägger till utrustning på produkten, se till att produkten är korrekt monterad, installerad och att produkten klarar av vikten på utrustningen som du lägger till. • Se till att all utrustning är ordentligt säkrad innan du justerar produkte • Risk för lagrad energi! Den här produkten innehåller en fjädermekanism som kan leda till att monteringen och/eller den monterade utrustningen rör sig kraftigt och snabbt uppåt. Var alltid försiktig när du hanterar eller är i närheten av fjäderarmen/fjäderarmarna. Avlägsna inte den monterade utrustningen om inte fjäderarmen har flyttats till det högsta läget eller (om möjligt) om inte fjäderkraften har sänkts tillräckligt för att undanröja eventuell fara. Underlåtenhet att göra detta kan leda till egendomsskador och/eller allvarlig personskada. • Klämrisk! Håll händerna borta från eventuella klämpunkter som skapas av de mekaniska komponenterna när du sänker eller lyfter displayen. Underlåtenhet att göra detta kan leda till allvarliga personskador. Waarschuwingen • StarTech.com Ltd. is niet verantwoordelijk voor materiële schade en/ of persoonlijk letsel als gevolg van de in dit technische document beschreven installatieprocedures. • Monteer dit product volgens de instructies. Lees de gehele handleiding en zorg ervoor dat u de instructies volledig begrijpt voordat u dit To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 6 • Gevaar door opgeslagen energie! Dit product bevat een veermechanisme dat de assemblage en/of de gemonteerde apparatuur hevig en snel omhoog kan doen bewegen. Wees altijd voorzichtig bij het hanteren of in de nabijheid zijn van de veerarm(en). Verwijder de gemonteerde unit pas nadat de veerarm in de hoogste stand is gezet of (indien mogelijk) de veerkracht voldoende is verlaagd om elk gevaar uit te sluiten. Doet u dit niet, dan kan dit leiden tot materiële schade en/of ernstig persoonlijk letsel. • Gevaar voor klemmen! Houd uw handen uit de buurt van de knelpunten van de mechanische onderdelen wanneer u het display laat zakken of optilt. Doet u dit niet, dan kan dit leiden tot ernstig persoonlijk letsel. 注意 • StarTech.com K.K.は、 この技術文書に記載されているインストール手順に 起因するいかなる物的損害および/または人身事故に対して責任を負うも のではありません。 • 本製品は、 必ず取扱説明書に従って組み立ててください。 本製品を組み立 てたり、 使用する前に、 必ず取扱説明書全文をよく読み、 その内容を十分に 理解してから取り扱ってください。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 7 • 挟まれ注意 ！ ディスプレイを下げたり上げたりするときには、 機械部品に挟 まれる可能性がある部分に手を近づけないでください。 重傷を負う可能性 があります。 Dichiarazioni di avvertenza • StarTech.com Ltd. non è responsabile per eventuali danni a cose e/o persone derivanti dalle procedure di installazione descritte in questo documento tecnico. • Assemblare il prodotto seguendo le istruzioni. Prima di assemblare e/o utilizzare il prodotto, leggere l’intero manuale e assicurarsi che le istruzioni siano state comprese appieno. • Non superare la capacità di peso del prodotto. Il sovraccarico del prodotto può causare lesioni personali o danni materiali. • Capacità di peso del braccio del monitor: da 6 kg x 2. • Non consentire ai bambini di salire su questo prodotto o di utilizzarlo senza un’adeguata supervisione. • Questo prodotto è destinato esclusivamente all’uso interno e non deve essere utilizzato all’aperto. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 8: Advertencias De Uso
Advertencias de uso • StarTech.com Ltd. no se responsabiliza de los daños materiales y/o personales derivados de los procedimientos de instalación descritos en este documento técnico. • Monte este producto siguiendo las instrucciones. Lea todo el manual y asegúrese de que las instrucciones se entienden completamente antes de montar y/o utilizar este producto.. • No exceda la capacidad de peso de este producto. Sobrecargar este producto podría provocar lesiones personales o daños materiales. • Capacidad de peso del brazo del monitor: 6 kg x 2. • No permita que niños se suban a este producto ni que lo utilicen sin la debida supervisión. • Este producto está destinado únicamente para uso en interiores y no debe utilizarse en exteriores. • Cuando ensamble este producto, no apriete los tornillos más de lo debido. Si al apretar los tornillos siente resistencia, no los apriete más. • Por su seguridad y para evitar lesiones, se recomienda la presencia To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 9: Warning Statements
Warnhinweise • StarTech.com Ltd. ist nicht verantwortlich für Sach- und/oder Personenschäden, die durch die in diesem technischen Dokument beschriebenen Installationsverfahren entstehen. • Bauen Sie dieses Produkt gemäß der Anleitung zusammen. Lesen Sie das gesamte Handbuch und stellen Sie sicher, dass Sie die Anweisungen vollständig verstanden haben, bevor Sie dieses Produkt zusammenbauen und/oder verwenden. • Überschreiten Sie nicht die Tragkraft dieses Produkts. Eine Überlastung dieses Produkts kann zu Verletzungen oder Sachschäden führen. • Gewichtskapazität des Monitorarms: 6 kg x 2. • Kinder sollten nicht auf dieses Produkt klettern oder dieses Produkt ohne angemessene Aufsicht verwenden. • Dieses Produkt ist nur für die Verwendung in Innenräumen bestimmt und sollte nicht im Freien verwendet werden. • Ziehen Sie die Schrauben nicht zu fest an. Wenn Sie auf Widerstand stoßen, hören Sie auf, die Schrauben anzuziehen. • Die Montage dieses Produkts ist auf die Ausführung von zwei Personen ausgelegt. Versuchen Sie nicht ohne Hilfe, dieses Produkt zu montieren und Geräte zu installieren. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 10 • Bevor Sie Geräte zu diesem Produkt hinzufügen, vergewissern Sie sich, dass Sie es ordnungsgemäß montiert und installiert haben und dass das Produkt das Gewicht der Geräte, die Sie hinzufügen möchten, tragen kann. • Vergewissern Sie sich, dass alle Geräte ordnungsgemäß gesichert sind, bevor Sie dieses Produkt einstellen. • Gefahr durch gespeicherte Energie! Dieses Produkt enthält einen Federmechanismus, der dazu führen kann, dass sich die Montageteile und/oder das Display bei Betätigung gewaltsam und schnell nach oben bewegen. Befolgen Sie die mitgelieferten Anweisungen und lassen Sie bei der Betätigung des Griffs stets Vorsicht walten. Betätigen Sie den Griff nicht vor Schritt 4 des Installationsverfahrens. Wenn Sie das Display in der Höhe verstellen, stützen Sie es immer mit beiden Händen (wie abgebildet), um das Anheben oder Absenken des Displays sicher zu steuern. Nichtbeachtung kann zu Sachschäden und/oder schweren Verletzungen führen. • Einklemmgefahr! Halten Sie beim Absenken oder Anheben des Displays die Hände von den durch die mechanischen Komponenten verursachten Klemmstellen fern. Andernfalls kann es zu schweren Verletzungen kommen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 11: Table Of Contents
Table of Contents Safety Statements ..................2 Warning Statements ................3 Requirements ..................6 Package Contents...................6 Product Diagrams ..................10 Assembly ....................12 Base and Column Assembly ........................12 Crossbar Assembly............................ 15 Attach the Crossbar to the Monitor Lift Column ................16 Attach the Grab Handles ........................18 Attach the Adhesive Cable Management Clips................ -
Page 12: Requirements
Compatible VESA mounting hole pattern of 75 x 75 or 100 x 100 mm • Display size up to 27” • Tools Phillips head screwdriver • Package Contents Monitor Lift Column Lift Column Base VESA Mount Assembly To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 13 VESA Mount Caps Lever Back Plate Lever Front Cover Crossbars Crossbar Mount, Upper Crossbar Mount, Lower Grab Handle, Upper Grab Handle, Lower M8 x 20 mm Screws To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 14 M5 x 12 mm Screws Washers M4 x 8 mm Screw M6 x 12 mm Screws M6 x 15 mm Screws M6 x 40 mm Screw 4 mm Hex Key To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 15 5 mm Hex Key With 6 mm Hex Key Adhesive Cable Screwdriver Management Clips Hook and Loop Straps Instruction Manual To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 16: Product Diagrams
Product Diagrams Component Crossbar Monitor VESA Mounts Grab Handles Paddle Lever Column Base... -
Page 18: Assembly
M8x20mm Screws through each of the mounting holes on Lift Column Base and into the screw holes on the Monitor Lift Column. As shown in Figure 1. Figure 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 19 M4x6mm Screws into each of the mounting holes on the Monitor Column Lift through the screw holes on the Lever Back Plate. As shown in Figure 2. Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
- Page 20 M4x8mm Screw through the mounting hole on Lever Front Cover and into the mounting point on the Lever Back Plate. As shown in Figure 4. Figure 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 21: Crossbar Assembly
VESA Mount Assembly (2). As shown in Figure 5. Figure 5 Slide the newly capped VESA Mount Assemblies (x2) into each of the Crossbars (x2). As Shown in Figure 6. Figure 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 22: Attach The Crossbar To The Monitor Lift Column
Attach the Crossbar to the Monitor Lift Column Hook the Crossbar Mount, Upper onto its receptacle on the Monitor Lift Column. As shown in Figure 8. Figure 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 23 M6x40mm Screw through the mounting hole on the Crossbar Mount, Lower and into the mounting point on the Crossbar Mount, Upper. As shown in Figure 9. Figure 9 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 24: Attach The Grab Handles
Attach the Grab Handles Using the M6x15mm Screws (x2) and the 5mm Hex Key with Screwdriver, fasten the Grab Handle, Upper to the Crossbar Mount, Upper by carefully driving the M6x15mm Screws through each of the mounting holes on the Grab Handle, Upper and into the mounting holes on the Crossbar Mount, Upper. -
Page 25: Attach The Adhesive Cable Management Clips
Figure 13. Figure 13 Seconds Repeat steps 12 and 13 on the remaining Adhesive Cable Management Clip and Crossbar. The Dual Monitor Desk Stand has been assembled. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 26: Monitor Installation
M4 x 12mm Screws x 8 • M5 x 12mm Screws x 8 • Select the monitor mounting screws that are appropriate for the monitors that are being mounted. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 27: Mounting The Monitors
(between the Washer and the monitor) on the appropriate VESA mounting pattern on the VESA Mount Assembly. As shown in Figure 14. Figure 14 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 28 Using the 5mm Hex Key with Screwdriver, carefully tighten all four of the monitor mounting screws. Repeat steps 1 through 3 on the remaining monitor and VESA Mount Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 29: Routing Cables
The hook-and-loop design allows for easy adjustment and reusability, ensuring a neat and streamlined appearance for your workspace. Figure 16 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 30: Operation
Once the Paddle Lever is actuated, the locking mechanism within the Monitor Column Lift is disengaged resulting in the spring mechanism pushing the displays upward. Paddle Lever Grab Handles Figure 18 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... - Page 31 Grab Handles to pull the monitors downward. Once you’ve achieved the desired height, release the Paddle Lever and the monitors will securely lock into place. Figure 18 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 32: Tilt Adjustment
Assembly, and loosen the tilt adjustment using the 5mm Hex Key with Screwdriver. As shown in Figure 18. Gently tilt the monitor to the desired angle. Once positioned, tighten the tilt adjustment mechanism on Figure 19 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support... -
Page 33: Pan Adjustment
the VESA Mount Assembly to secure the tilt angle in place. As shown in Figure 18. Pan Adjustment The pan adjustment feature allows you to individually pan each Figure 20 display left or right for optimal alignment. To pan a monitor simply grasp the monitor and move it horizontally until it’s in the desired position. - Page 34 Brackmills Hoofddorp N5V 5E9 Groveport, Ohio Northampton The Netherlands Canada 43125 NN4 7BW U.S.A. United Kingdom FR: startech.com/fr DE: startech.com/de ES: startech.com/es NL: startech.com/nl IT: startech.com/it JP: startech.com/jp To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
-
Page 35: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 36 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
