Mount the Monitors

Warning!
This operation is best performed with two people.

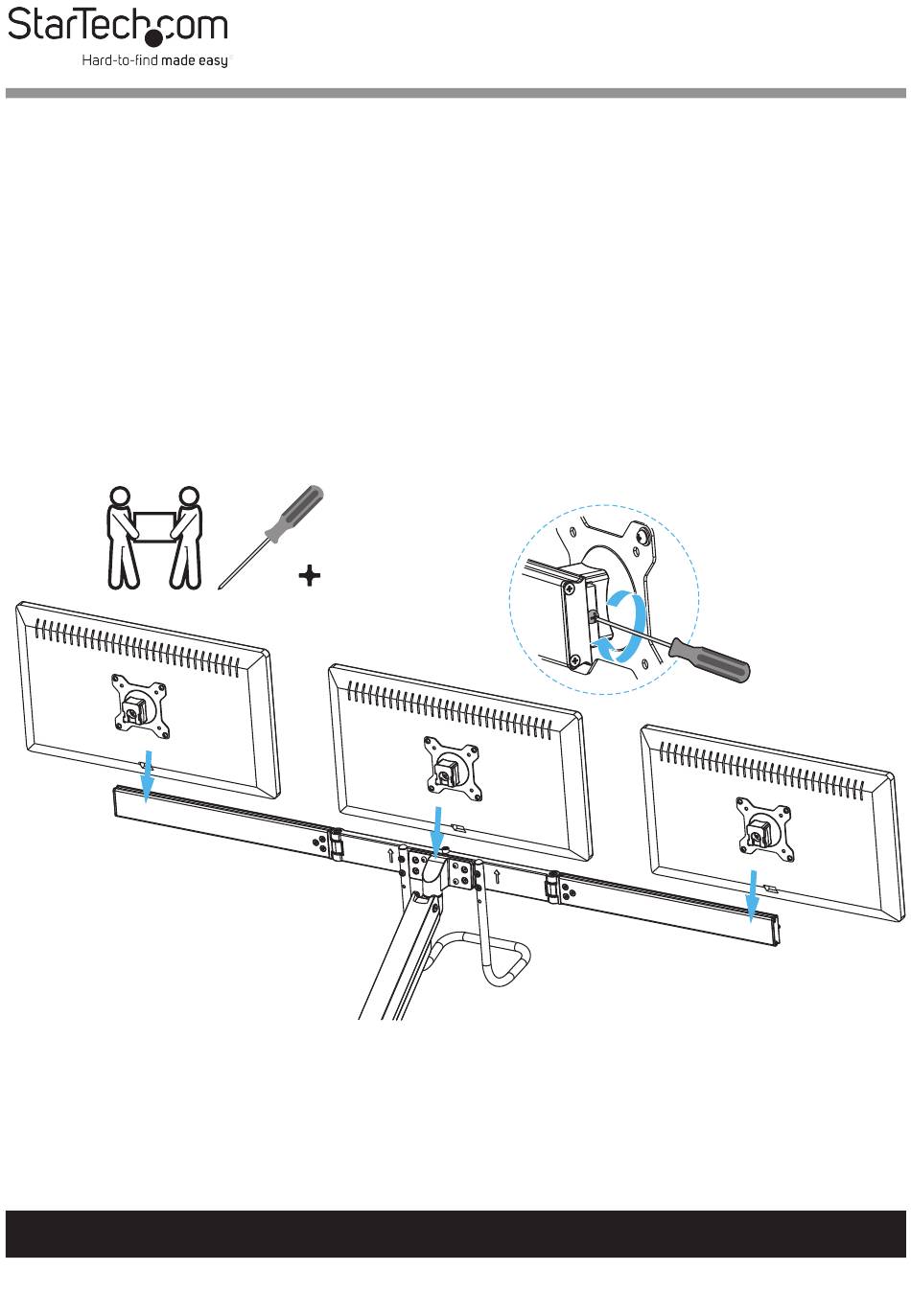

Mount the Central Monitor onto the Crossbar, Center.
1.
Mount the Left and Right Monitors onto the Crossbar, Left
and Right respectively. (Figure 19)
Use a Phillips Head Screwdriver to tighten the Screw
2.
located on the holder for each of VESA Monitor Mounts to
secure them in place. (Figure 19)
(Optional) To remove a Monitor, reverse Steps 2 and 1.
3.
For additional self-service support options and community forums, please visit: www.StarTech.com/support
Figure 19
