Summary of Contents for StarTech.com ARMDUALPS

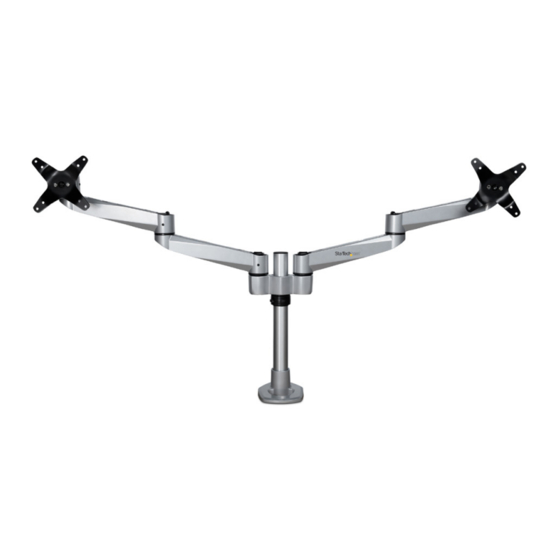

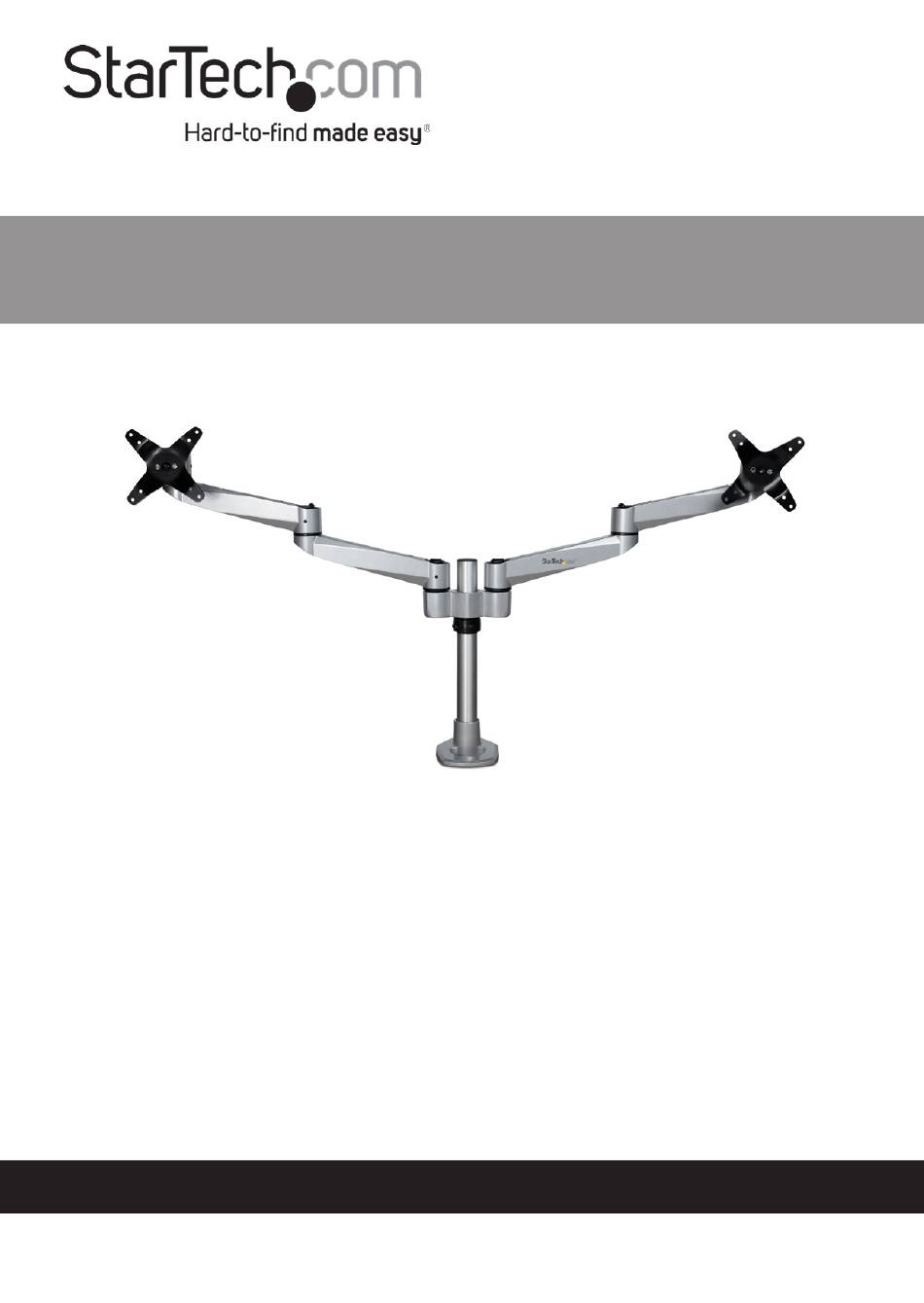

- Page 1 Desk-Mount Dual Monitor Arm | Full Motion | Silver Actual product may vary from photos User Manual SKU#: ARMDUALPS For the latest information and specifications visit www.startech.com/ARMDUALPS Manual Revision: 05/06/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
Il prodotto è in grado di supportare i seguenti pesi: 20 kg. • Il prodotto è destinato all’uso in ambienti interni. Se ne sconsiglia l’impiego in ambienti esterni. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり20kgまで支 持できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Attaching a Monitor Using the VESA Mount ................... 21 Attaching the Monitor Mount ......................22 Removing the Monitor Mount .............23 Adjusting the Monitor Tilt ..............24 Routing the Cables .................24 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
Product Diagram Monitor Mount (x 2) Support Pole Swivel Arm (x 4) C-Clamp Monitor Shoulder Cable-Management Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Dimension
Product Dimension To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
75x75 100x100 Tilt +900 to -150 Screen size Maximum 30 in. (762 mm) Rotate 3600 Swivel 3600 Weight/Load Capacity 44.09 lb. (20 kg) Lift 6.3 in. (160 mm) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Package Contents
Package Contents Swivel Arms VESA Monitor Mounts Qty: Four Qty: Two Monitor Shoulder Support Pole w/ C-Clamp Qty: One Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 M3 Hex Key EVA Cushion Qty: Two Qty: One Thumb Screws Qty: Eight To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 13: Installation
Use a Phillips Screwdriver (not included) to remove the Screw from the Plate on the C-Clamp. Remove the Plate, Two Washers, and the Knob from the bottom of the C-Clamp. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Rod on the Knob. Place the Knob through the Grommet Hole in the desk or table and into the Support Pole. Turn the Knob clockwise to tighten it. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Using The C-Clamp
Attaching the Knob to the C-Clamp Place a Washer onto the Knob. Place a Phillips Screw through a Round Washer, Plate, and into the Washer on the Knob. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Attaching the Hex Screws to the C-Clamp Remove the backing from the EVA Cushion. Align the adhesive side of the EVA Cushion with the bottom of the Support Pole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 While applying pressure fix the EVA Cushion to the bottom of the Support Pole. Using your hand, tighten the Knob until the C-Clamp is pressed tightly against the mounting surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 18 Note: You can adjust the size of the C-Clamp by removing the two screws holding the upper and lower portions of the clamp together and re-installing the screws into the lower two screw holes. Adjusting the C-Clamp To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 19: Attaching The Monitor Mount
Tighten the Mounting Shoulder using the Adjustment Screw located on the side of the Monitor Shoulder, using the M3 Hex Key. Be careful not to over-tighten the Monitor Shoulder. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Mounting Peg on the top of the Monitor Shoulder. Slide the Mounting Hole on Swivel Arm 1 over the Mounting Peg until it clicks into place. Sliding the Swivel Arm into Place To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 21 Slide the Mounting Hole on Swivel Arm 3 over the Mounting Peg until it clicks into place. Attaching the Swivel Arm Repeat steps 11 - 12 to install Swivel Arm 4. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 22: Attaching A Monitor Using The Vesa Mount
Warning! Do not over-tighten the Thumb Screws. If you encounter resistance while you’re tightening the Thumb Screws, stop tightening. Failure to do so could result in dam- age to the monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 23: Attaching The Monitor Mount
Monitor Mount by loosening or tightening the Hex Screws located on the Monitor Mount next to the Mounting Hole. Repeat Steps 1 - 3 to attached the second Monitor Mount. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 24: Removing The Monitor Mount
Sliding the Thumb Clip towards the Monitor Mount While holding the Thumb Clip and the weight of the Monitor Mount, lift the Monitor Mount up, sliding the Mounting Peg out of the Mounting Hole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 25: Adjusting The Monitor Tilt
Thread the Cable through the hole in the Swivel Arm. Run the Cable through the Cable-Management Clip on the side of the Support Pole. Repeat steps 1 - 2 for any additional monitors. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 26 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 27 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
