StarTech.com SHELF-1U-12-FIXED-S Quick Start Manual

1U Solid/Vented Cantilever Shelf - 12/20 in. Depth
Product IDs
SHELF-1U-12-FIXED-S
SHELF-1U-12-FIXED-V
SHELF-1U-20-FIXED-S
SHELF-1U-20-FIXED-V

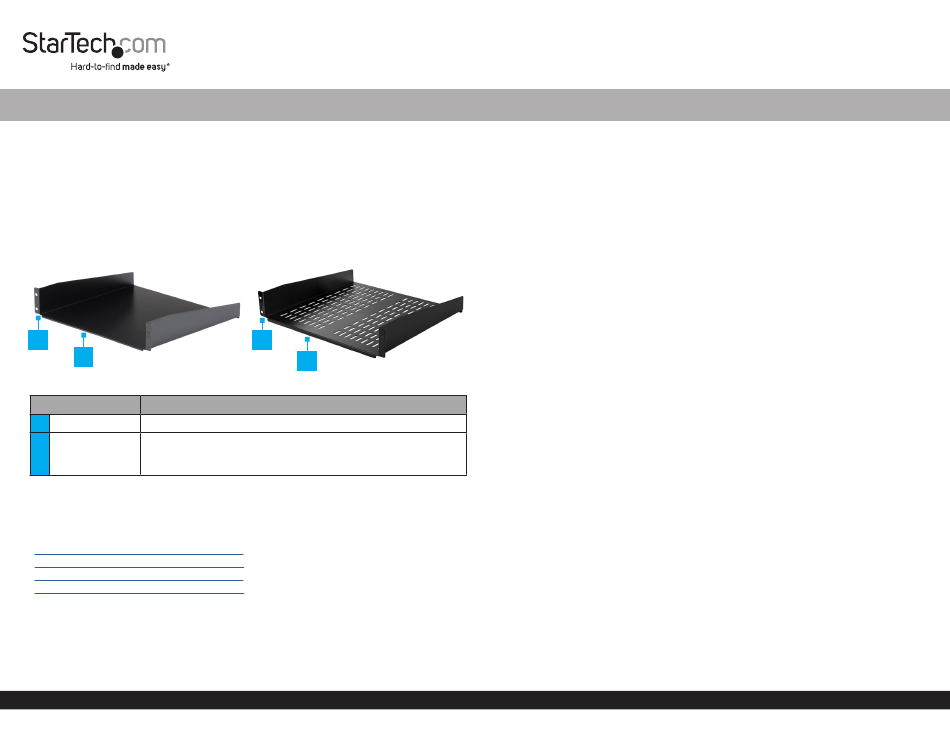

Product Diagrams

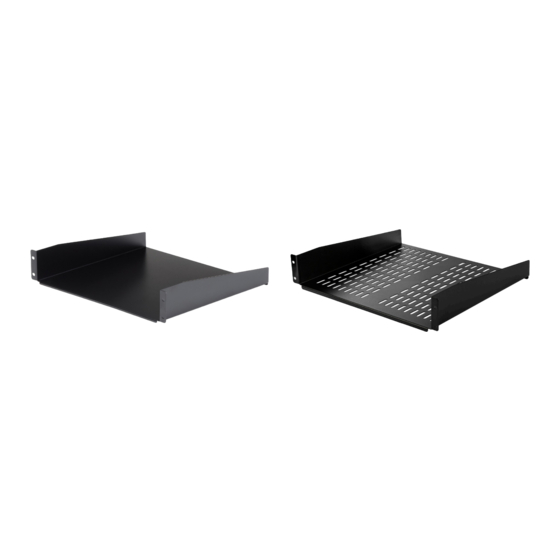

Front - Angled View
Solid
1
2
Component
1 Mounting Holes • Mount the 1U Solid/Vented Shelf into a Rack or Cabinet.
• Mount the 1U Solid/Vented Shelf with the Shelf Lip
2 oriented downwards to prevent Equipment from catching
Shelf Lip
during storage and/or retrieval
Product Information
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit:
www.StarTech.com/SHELF-1U-12-FIXED-S
www.StarTech.com/SHELF-1U-12-FIXED-V
www.StarTech.com/SHELF-1U-20-FIXED-S
www.StarTech.com/SHELF-1U-20-FIXED-V
Requirements
• 1U Available Rack Space
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Vented
1
2
*Product may vary from images
Function
Warnings
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight: up
to 55 lb. (25 kg). This product can only support the maximum weight capacity if 4
M6 Screws / Cage Nuts / Plastic Washers are used to affix this product to a rack or
cabinet.
Package Contents
• 1U Solid/Vented Shelf x 1
• M6 Cage Nuts x 4
• M6 Screws x 4
• M6 Plastic Washers x 4
• Quick-Start Guide x 1
Installation
Mount the 1U Solid/Vented Shelf into a Rack or Cabinet
Use the included M6 Cage Nuts, M6 Screws, and M6 Plastic Washers to install the 1U
Solid/Vented Shelf.
Notes: This product can support the following weight: 55 lb. (25 kg).
The following installation instructions are for square mounting holes.
1. Locate a suitable location in a Rack or Cabinet to mount the 1U Solid/Vented
Shelf.
Note: The 1U Solid/Vented Shelf itself requires 1U of space within a Rack or
Cabinet.
2. Insert the Wing (side) of an M6 Cage Nut into the back of the a Cage Nut Hole.
3. Insert the second Wing of the M6 Cage Nut into the selected Cage Nut Hole, using
pressure by hand, or with a Cage Nut Tool.
4. Repeat steps 2 and 3 to insert a total of 4 Cage Nuts.
Quick-Start Guide
Manual Revision: July 16, 2021 4:40 PM
