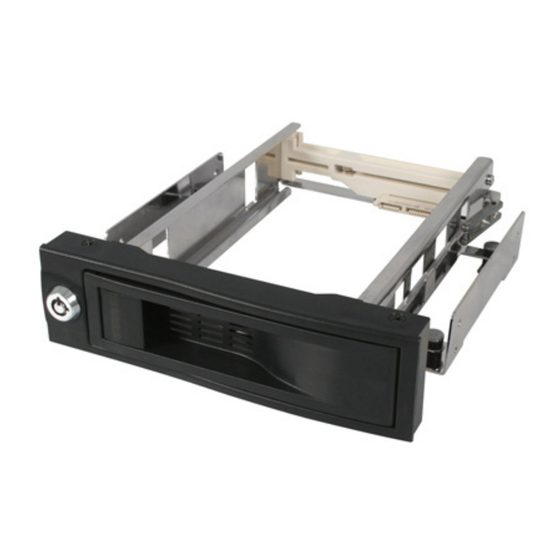

5.25in Trayless Hot Swap Mobile Rack
for 3.5in Hard Drive
HSB100SATBK
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/13/2019
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com STCHSB100SATBK
Summary of Contents for StarTech.com STCHSB100SATBK
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/13/2019...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Installing the removable drive frame in the computer ............... 2 Connecting the drive activity indicator .................... 3 Installing the hard drive into the drive frame ................3 Removing the hard drive from the drive frame ................ -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com trayless SATA hard drive bay. Now, you can enjoy a truly portable storage solution, with the ability to insert and remove a bare SATA drive without having to mount it in a drive tray or drawer. -
Page 5: Installation
Hard drives, like all computer equipment can also be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching any components. StarTech.com recommends that you wear an antistatic strap when installing any computer equipment. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Connecting The Drive Activity Indicator
5. Connect the SATA power cable and the SATA data cables to the appropriate ports provided on the back of the rear panel of the drive frame. Connecting the drive activity indicator • Connect the pre-installed LED Cables to the LED Indicator for the installed drive on the Motherboard or Controller Card. -
Page 7: Specifications
Specifications Form Factor Serial ATA Dimensions 184 x 149 x 42 (mm) Interface SATA, SATA II , SATA III Operating temperature 0° - 55°C Insertion rating 50,000 insertions/removals Instruction Manual... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
