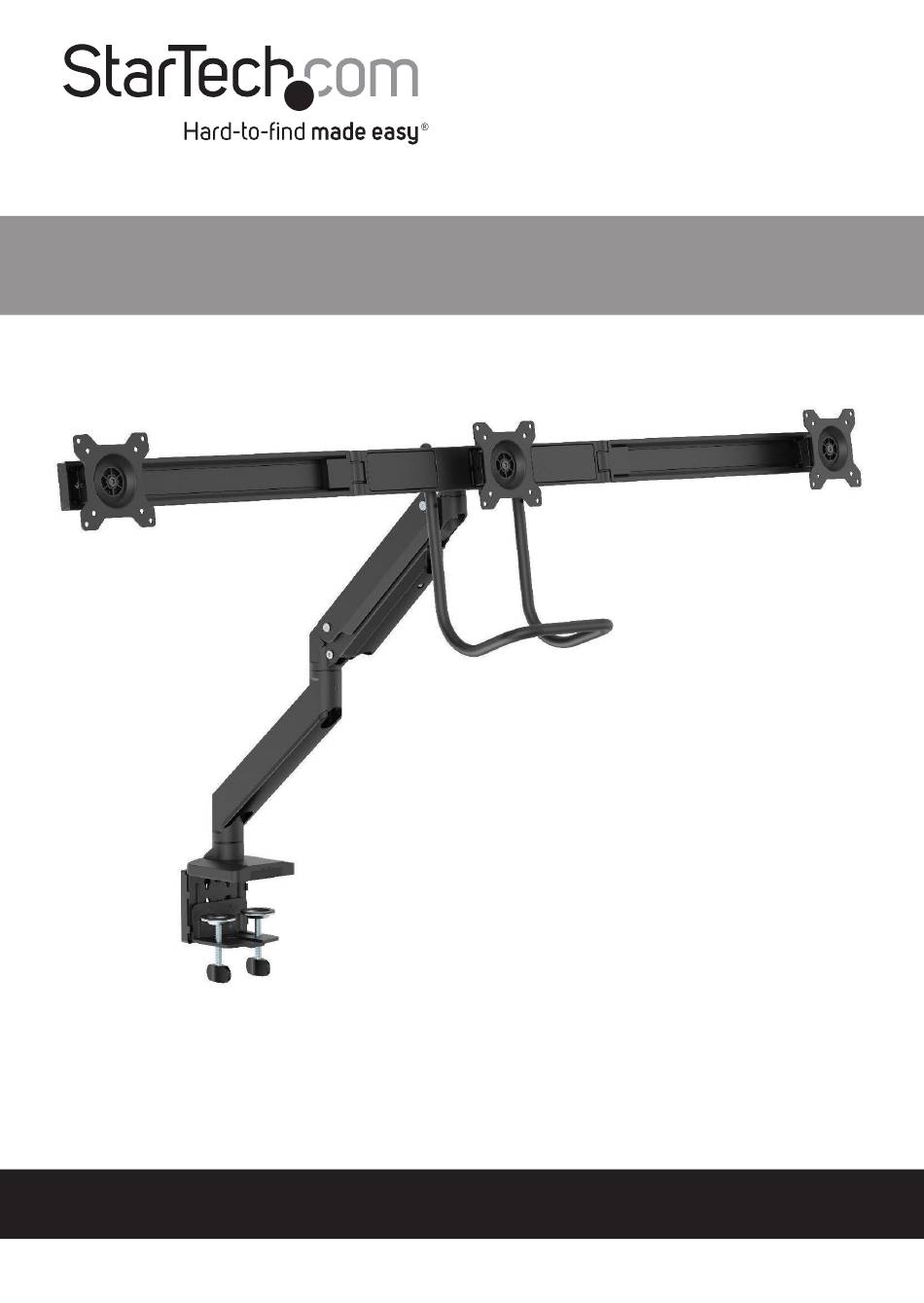

- Page 1 Triple Monitor Desk Mount - Crossbar Design - For up to 27” Monitors *Actual product may vary from photos User Manual SKU: 3M1A3SG-MONITOR-ARM For the latest information and specifications visit www.StarTech.com/3M1A3SG-MONITOR-ARM Manual Revision: 05/10/2024...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
Sicherheitsmaßnahmen • Die Installation und/oder Montage des Produkts sollte von einem zertifizierten Fachmann gemäß den örtlichen Sicherheits- und Bauvorschriften durchgeführt werden. For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 4: Warning Statements
Warning Statements • StarTech.com Ltd. is not responsible for any property damage and/or personal injury resulting from the installation procedures outlined in this technical document. • Assemble this product according to the instructions. Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product. - Page 5 Le non-respect de cette consigne peut entraîner des blessures corporelles graves. Varningsmeddelanden • StarTech.com Ltd. ansvarar inte för eventuella skador på egendom och/eller personskador till följd av de installationsprocedurer som beskrivs i detta tekniska dokument. • Montera produkten enligt instruktionerna. Läs hela manualen och se till att du har förstått instruktionerna innan du monterar och/eller använder...
- Page 6 • Gewichtscapaciteit van de monitorarm: 6 kg x 3. • Laat kinderen niet op dit product klimmen of dit product gebruiken zonder behoorlijk toezicht. • Dit product is uitsluitend bedoeld voor gebruik binnenshuis en mag niet For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 7 荷がかかると、 人身事故や物的損害が発生する恐れがあります。 • モニターアームの重量容量 ： 6 kg x 3。 • 子供が、 本製品に登ったり、 保護者の監視なしに本製品を使用しないでく ださい。 • 本製品は屋内での使用のみを想定しているため、 屋外では使用しないでく ださい。 • 本製品を組み立てる際、 ネジを締めすぎないようにして下さい。 ネジを締め ているうちに手応えを感じたら、 締めるのを止めてください。 • 本製品は、 二人がかりでの組み立てを想定しています。 手助けなしに単独で 組み立てと設置を行わないで下さい。 • 本製品に機器を追加する前に、 本製品が適切に組み立てられていること、 および本製品が追加した機器の重量を支えることができることを確認して For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 8 まれる可能性がある部分に手を近づけないでください。 重傷を負う可能性 があります。 Dichiarazioni di avvertenza • StarTech.com Ltd. non è responsabile per eventuali danni a cose e/o persone derivanti dalle procedure di installazione descritte in questo documento tecnico. • Assemblare il prodotto seguendo le istruzioni. Prima di assemblare e/o utilizzare il prodotto, leggere l’intero manuale e assicurarsi che le istruzioni...
-
Page 9: Advertencias De Uso
L’inosservanza di questa avvertenza può provocare gravi lesioni personali. Advertencias de uso • StarTech.com Ltd. no se responsabiliza de los daños materiales y/o personales derivados de los procedimientos de instalación descritos en este documento técnico. - Page 10 Betätigung des Griffs stets Vorsicht walten. Betätigen Sie den Griff nicht vor Schritt 4 des Installationsverfahrens. Wenn Sie das Display in der Höhe verstellen, stützen Sie es immer mit beiden Händen (wie abgebildet), um For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 11 Sachschäden und/oder schweren Verletzungen führen. • Einklemmgefahr! Halten Sie beim Absenken oder Anheben des Displays die Hände von den durch die mechanischen Komponenten verursachten Klemmstellen fern. Andernfalls kann es zu schweren Verletzungen kommen. For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 12: Table Of Contents
Install the VESA Monitor Mount to a Monitor ................. 18 Mount the Monitors ..........................20 Operation ....................21 Adjust the Spring Arm Tension ......................21 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 13 Adjust the Height of the Left and Right VESA Monitor Mounts ..........26 Prevent Accidental Tip-over ........................27 Warranty Information ................30 Limitation of Liability ................30 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 14: Product Diagram
Product Diagram *Actual product may vary from photos Cable Management Crossbar, Left Hand Knobs Channel Crossbar, Right Grab Handle Monitor VESA Mount Swivel Arm Spring Arm Desk Clamp For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 15: Product Dimensions
Product Dimensions Top Profile Side Profile For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 16: Product Information
Tools Phillips head screwdriver • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 17: Package Contents
Grab Handle Crossbar, Right Quantity: 1 Quantity: 1 Quantity: 1 Quantity: 1 Grommet Base Tool Holder Grommet Plate Plate Base Pad Quantity: 1 Quantity: 1 Quantity: 1 Quantity: 1 For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 18 Grommet Screw Countersunk Screws Quantity: 12 Quantity: 2 Quantity: 1 Quantity: 10 M5x12mm M4x12mm Button Head Screws Flat Head Screws Screws Screws Quantity: 4 Quantity: 12 Quantity: 4 Quantity: 12 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 19 Quantity: 2 Cable 3mm Hex Management Key with Flat 4mm Hex Key 6mm Hex Key Clips Screwdriver Quantity: 1 Quantity: 1 Quantity: 6 Quantity: 1 User Manual Quantity: 1 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 20: Installation
Clamp and into the bottom of the Base Mount. Use the 4mm Hex Key to tighten the Countersunk Screws (x 4). (Figure 1) Figure 1 Remove the backing from the Base Pad. (Figure 2) Figure 2 For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 21 Washers (x 2), Desk Clamping Discs (x 2) and into the Hand Knobs (x 2). Tighten the M4x10mm Screws (x 2) with a Phillips Head Screwdriver. (Figure 4) Figure 4 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 22 Clamp. Choose the Top and Middle or Middle and Bottom Screws Holes based on n the Thickness of the Desk. Slide the Screws down into the smaller portion of the Screw Holes. (Figure 6) Figure 6 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 23 Slide the Base Mount Assembly onto the Desk. Tighten by hand the Hand Knobs (x 2) at the bottom of the Base Mount Assembly. Attach the Tool Holder onto the Base Mount Assembly. (Figure 7) Figure 7 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 24: Grommet Installation
Base Plate and into the bottom of the Base. Use the 4mm Hex Key to tighten the Countersunk Screws (x 4). (Figure 8) Figure 8 Remove the backing from the Base Pad. (Figure 9) Figure 9 For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 25 Insert the Grommet Screw through the Grommet Plate, Desk Grommet Hole, and into the Grommet Base Assembly. Use the 6mm Hex Key to tighten the Grommet Screw. (Figure 11) Figure 11 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 26: Install The Swivel And Spring Arms
+ or - 180° or tighten both Screws to allow the arm to rotate + or - 90°. (Figure 12) Figure 12 Insert the Spring Arm onto the Swivel Arm. (Figure 13) For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 27 Use the 3mm Hex Key with Flat Screwdriver to tighten the Screw. (Figure 13) Figure 13 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 28: Install The Crossbar
Handle can be mounted at two different heights depending on which Screw Holes are used to attach it to the Crossbar, Centre. (Figure 15) Tighten the Flat Head Screws using the 4mm Hex Key. (Figure 15) For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 29 Insert the Crossbar, Left and Right onto the Crossbar, Centre. Insert the Countersunk Screws (x 6) through the Crossbar, Left and Right, and into the Crossbar, Centre. (Figure 16) Figure 16 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 30 Use the 4mm Hex Key to tighten the Countersunk Screws. (Figure 16) Straighten the Crossbar, Centre by folding the Crossbar, Left and Right towards the back. (Figure 17) Figure 17 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 31: Install The Vesa Monitor Mount To A Monitor
Holes on the Monitor(s), and select the appropriate mounting hardware to attach the VESA Monitor Mount. Carefully place the Monitor(s) face down on a protective/soft surface with the VESA Mounting Points facing up. For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 32 Note: Ensure that the VESA Monitor Mount is oriented as shown before securing it at the back of the Monitor. Figure 18 Repeat Steps 1 to 3 with the remaining Monitor(s). For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 33: Mount The Monitors
VESA Monitor Mounts to secure them in place. (Figure 19) Figure 19 (Optional) To remove a Monitor, reverse Steps 2 and 1. For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 34: Operation
Screw. Turn Counterclockwise to Increase the Tension for Heavier/Larger Monitors, or turn Clockwise to Decrease the Tension for Smaller/Lighter Monitors. Note: Ensure the Spring Arm is in horizontal position when adjusting. Figure 20 For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 35: Cable Management
Spring Arms as indicated by the Arrows. Use a Phillips Head Screwdriver to Tighten the Screw for the Cable Management Cover under the Spring Arm. (Figure 24) Route the Cable(s) through the Tool Holder. (Figure 24) For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 36 (Figure 25. (Figure 25) (Optional) Use the Hook and Loop (Spring Arm) to create Cable Bundles under the Spring Arms and Swivel Arms. (Figure 26) Route the Cable(s) through the Tool Holder. For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 37 Figure 25 Figure 26 For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 38: Adjust The Crossbar Angle And Center Monitor Height
To adjust the Height of the Center Monitor, use the 6mm Hex Key to Tighten or Loosen the Screw at the back of the Center VESA Monitor Mount. (Figure 22) Figure 22 For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 39: Adjust The Height Of The Left And Right Vesa Monitor Mounts
Locate the Height Adjustment Screw at the bottom of the VESA Monitor Mount. (Figure 27) Use a Phillips Head Screwdriver to Tighten or Loosen the Screw and adjust the Height. (Figure 27) Figure 27 For additional self-service support options and community forums, please visit: www.StarTech.com/support... -
Page 40: Prevent Accidental Tip-Over
Do not rotate the Crossbar backward beyond the Base Mount as this action may cause the Monitor Mount to fall, resulting in equipment or personal damage. (Figure 28) Figure 28 For additional self-service support options and community forums, please visit: www.StarTech.com/support... - Page 41 Page Left Intentionally Blank For additional self-service support options and community forums, please visit: www.StarTech.com/support...
- Page 42 Page Left Intentionally Blank For additional self-service support options and community forums, please visit: www.StarTech.com/support...
-
Page 43: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 44 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
