StarTech.com RK619WALLOH Quick Start Manual

Hinged Open Frame Wall-Mount Server Rack (6U, 8U and 12U Models)

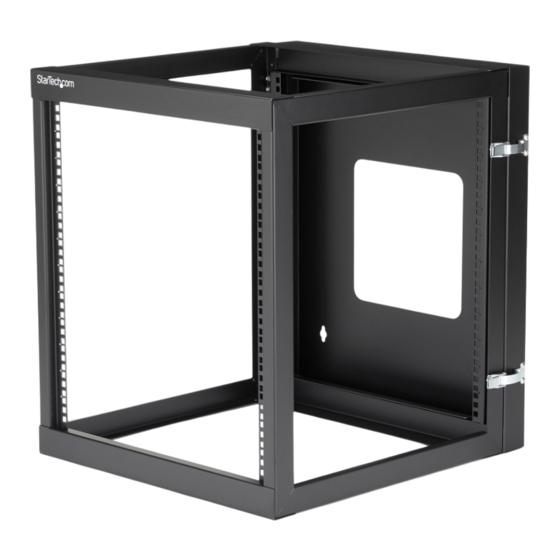

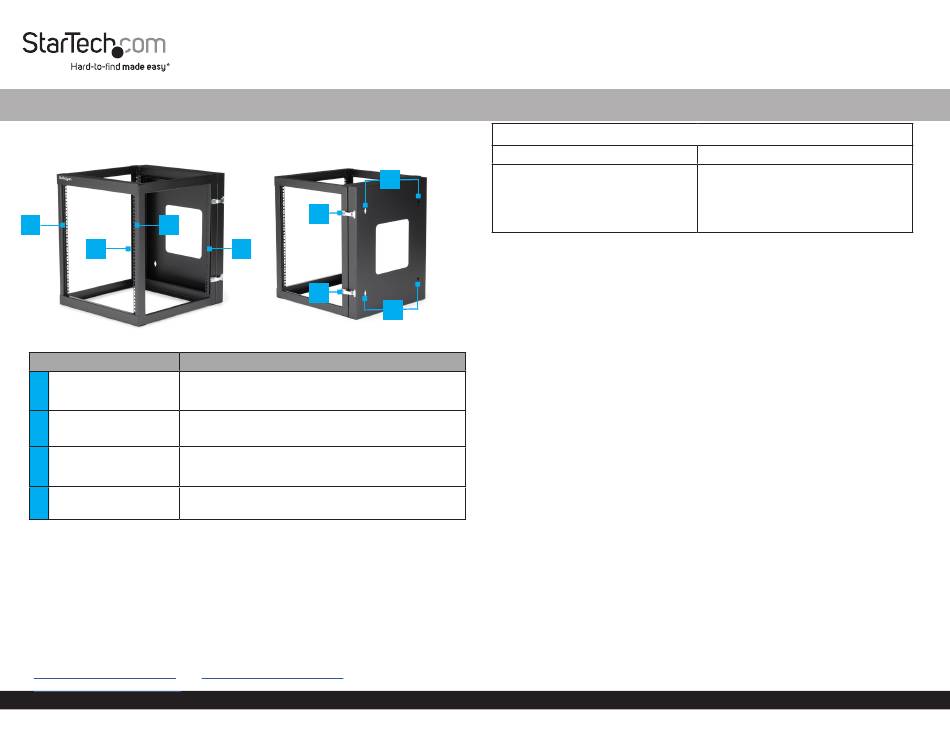

Product Diagram
(RK619WALLOH, RK819WALLOH, RK1219WALLOH)
1
1
2
Component
• Features Square Cage Nut Holes to front-mount
1 Front Vertical Rails (x2)
your equipment
• Features Square Cage Nut Holes to rear-mount
2 Rear Vertical Rails (x2)
your equipment
• Secures the swinging 4-post rack (front frame) to the
3 Latches (x2)
wall-mounting bracket
Wall-Mount Anchor
4
• Used to mount the enclosure to a wall
Points (x4)
Requirements
• If mounting to a wall or other surface: Appropriate mounting hardware for surface
type and appropriate tools for the hardware.
• Phillips Head Screwdriver
• Spirit/Bubble Level
• (Optional) Wrench
• (Optional) Cage Nut Tool
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RK619WALLOH www.StarTech.com/RK819WALLOH
www.StarTech.com/RK1219WALLOH
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
3
2
3
4
*RK1219WALLOH shown
*Product may vary from images
Function
Package Contents
RK619WALLOH / RK819WALLOH
• Hinged Wall Mount Rack x1
• #10-32 Screws x24
• #10-32 Cage Nuts x24
• Quick-Start Guide x1
Warnings!
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• StarTech.com Ltd. is not responsible for any property damage and/or personal injury
resulting from the installation procedures outlined in this technical document.
• Mounting hardware is not included with this product. Make sure to source
appropriate mounting hardware that is capable of supporting the weight of a
loaded Rack, and is adequate for the wall type the rack is going to be mounted on.
• If you lack the necessary expertise required to attach this product to the wall
structure or to assess the suitability of the hardware provided, please contact a
professional installer.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Never operate this product if parts are missing or damaged.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. The weight capacity for each product is listed below:
• RK619WALLOH: Up to 109.7 lb [49.8 kg]
• RK819WALLOH / RK1219WALLOH : Up to 139.7 lb [63.4 kg]
• Wall structures vary. Ensure the type of wall structure and mounting hardware will
properly support the mounted equipment. Failure to do so might result in personal
injury and/or equipment damage. The wall structure should be capable of supporting
at least four times the weight of the mounted equipment.
How to Identify the LOT Code Revision Number
The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01.
Quick-Start Guide
RK1219WALLOH
• Hinged Wall Mount Rack x1
• #10-32 Screws x48
• #10-32 Cage Nuts x48
• Quick-Start Guide x1
Manual Revision: March 18, 2024
